CH11-16123 - Kohler Command PRO Single Engine, Made for Gardner, 11hp, 8.2kW Engine Controls 9-27-27 Parts Diagram

Command PRO Single Engine, Made for Gardner, 11hp, 8.2kW

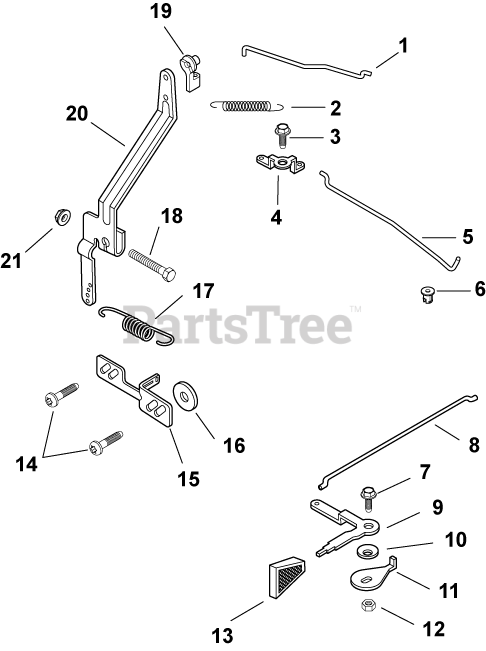

Engine Controls 9-27-27 Parts Diagram

  • Title

1

Kohler 12 079 04-S

LINKAGE

$21.99

$

In Stock, only 1 left!

0

2

Kohler 230117-S

SPRING

$13.99

$

In Stock, only 1 left!

0

3

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

4

Kohler 12 090 14-S

LEVER

$13.99

$

In Stock, only 1 left!

0

5

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

6

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 12 079 06-S

LINKAGE

$15.99

$

In Stock, only 1 left!

0

9

Kohler 12 090 16-S

LEVER, CHOKE

$10.99

$

Usually ships in 2-5 days

0

10

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

11

Kohler 12 448 01-S

TAB - DISCONTINUED

$

$

Not available

12

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

13

Kohler 41 341 03-S

KNOB

$

$

Not available

14

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 12 126 22-S

BRACKET, GOVERNOR SPRING - DISCONTINUED

$

$

Not available

16

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 089 17-S

SPRING

$8.49

$

In Stock, Qty 8

0

18

Kohler 12 086 41-S

SCREW, SQUARE HEAD

$2.49

$

In Stock, only 3 left!

0

19

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

20

Kohler 12 090 19-S

LEVER, GOVERNOR - USE 12 090 40-S
(Superseded to 12 090 40-S)

$48.99

$

Usually ships in 2-5 days

0

21

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

1211316-S

Kohler 12 113 16-S

DECAL, CHOKE (WHITE)

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0
