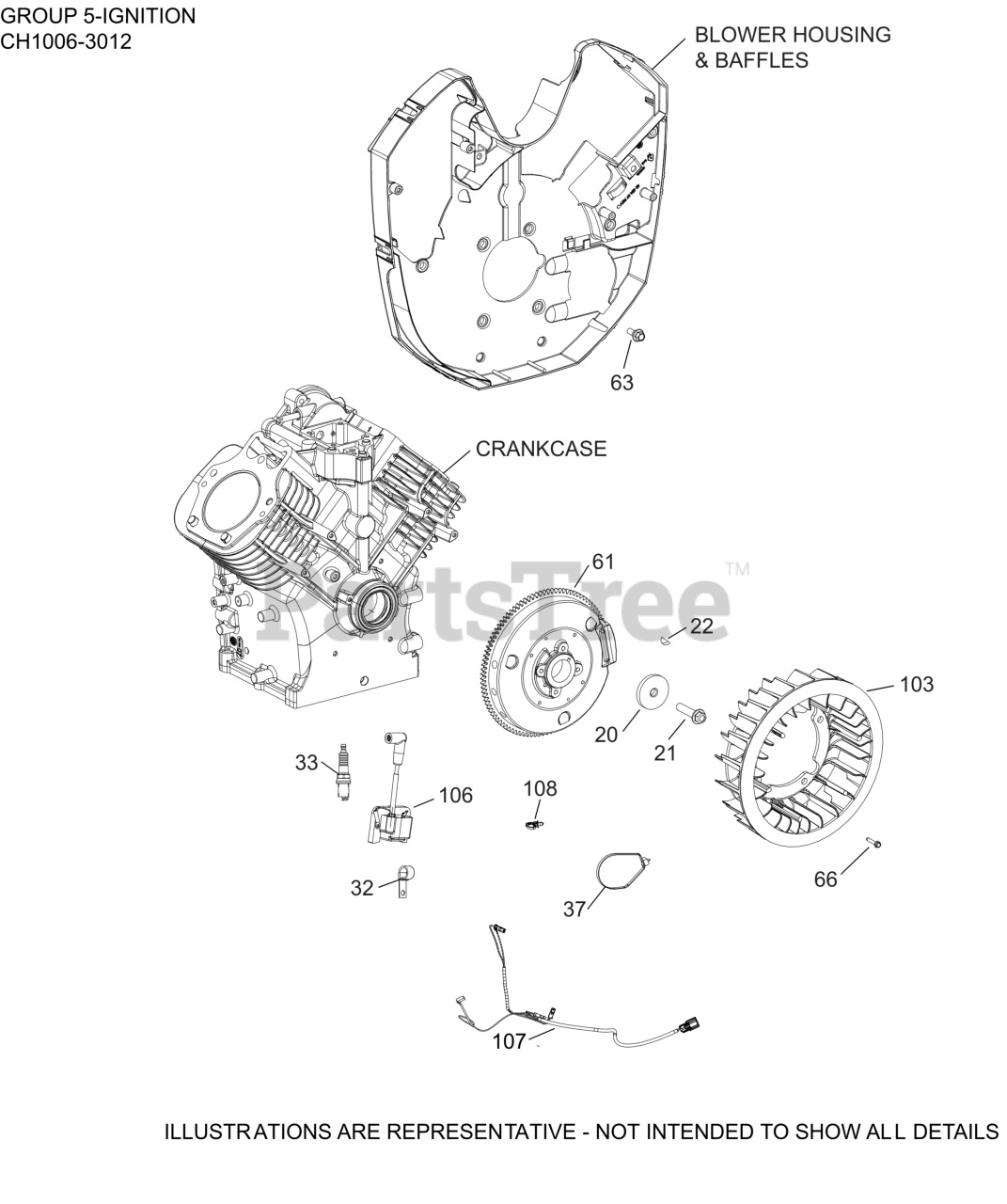

CH1006-3012 - Kohler Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW 05 Ignition/Charging Parts Diagram

Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW

05 Ignition/Charging Parts Diagram

  • Title

20

Kohler 62 468 01-S

WASHER, FLAT 13/32"

$5.49

$

Usually ships in 2-5 days

0

21

Kohler 25 086 361-S

SCREW, HEX FLANGE

$3.99

$

In Stock, Qty 12

0

22

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 9

0

32

Kohler 25 154 04-S

CLIP, CABLE

$3.49

$

Usually ships in 2-5 days

0

33

Kohler 62 132 13-S

PLUG, SPARK CHAMPION (SERVICE) (XC10YC)

$13.99

$

Usually ships in 2-5 days

0

37

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

37

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 62 025 35-S

FLYWHEEL, ASSEMBLY CARB

$166.99

$

Usually ships in 2-5 days

0

63

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

66

Kohler 25 086 656-S

SCREW, THREAD THROWING

$2.49

$

Usually ships in 2-5 days

0

103

Kohler 62 157 06-S

FAN

$14.99

$

In Stock, only 3 left!

0

106

Kohler 62 584 67-S

MODULE, DIGITAL IGNITION (LP/NG)

$56.99

$

Usually ships in 2-5 days

0

107

Kohler 62 176 55-S

HARNESS, WIRING ASSEMBLY (DUAL TIMING)

$36.99

$

Usually ships in 2-5 days

0

108

Kohler 25 454 09-S

TIE, WIRE

$2.49

$

In Stock, only 2 left!

0
