CH1006-3012 - Kohler Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW 03 Lubrication Parts Diagram

Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW

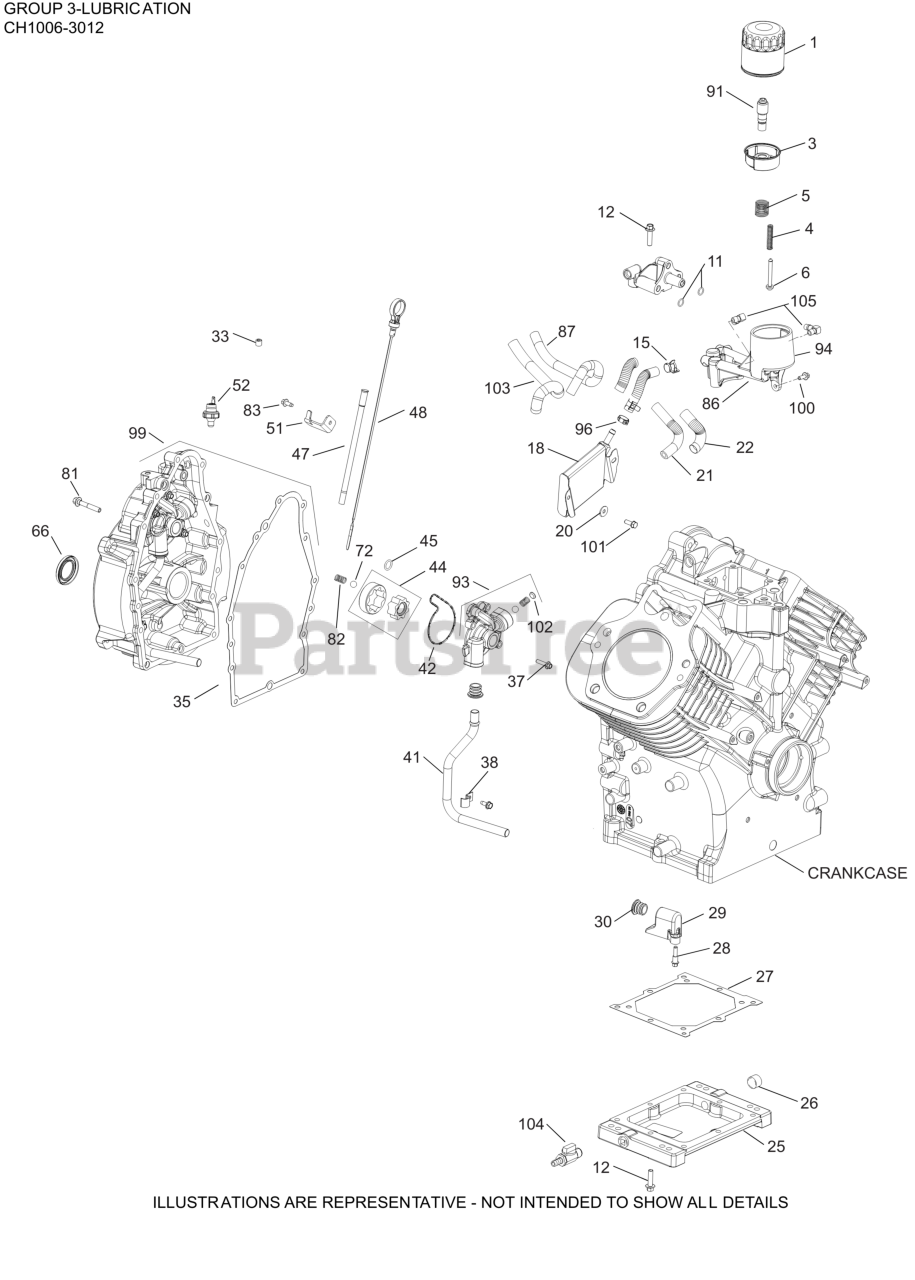

03 Lubrication Parts Diagram

  • Title
1

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

3

Kohler 62 109 02-S

CUP, OIL FILTER ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

4

Kohler 62 089 11-S

SPRING, OIL FILTER VALVE

$2.99

$

Usually ships in 2-5 days

0

5

Kohler 62 089 12-S

SPRING, OIL FILTER CUP

$2.99

$

In Stock, only 1 left!

0

6

Kohler 62 462 02-S

VALVE, OIL FILTER

$7.99

$

In Stock, only 1 left!

0

11

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

12

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

18

Kohler 62 594 05-S

COOLER, OIL ASSEMBLY

$184.99

$

Usually ships in 2-5 days

0

20

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

21

Kohler 62 326 06-S

HOSE, OIL SUPPLY

$16.99

$

In Stock, only 1 left!

0

22

Kohler 25 431 18-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

25

Kohler 62 199 14-S

OIL RESERVOIR

$119.99

$

In Stock, only 1 left!

0

26

Kohler 25 158 19-S

BUSHNG,REDCR 1/2"-1/8" NPT STL

$7.99

$

Usually ships in 2-5 days

0

27

Kohler 62 041 22-S

GASKET, OIL RESERVOIR

$6.99

$

Usually ships in 2-5 days

0

28

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

29

Kohler 62 081 06-S

HOUSING, OIL PICK-UP ASSEMBLY

$8.49

$

Usually ships in 2-5 days

0

30

Kohler 62 032 19-S

SEAL, PICK-UP TUBE

$2.99

$

In Stock, only 2 left!

0

33

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

35

Kohler 62 041 21-S

GASKET, OIL PAN

$12.99

$

In Stock, only 3 left!

0

37

Kohler 25 086 294-S

SCREW, HEX FLANGE M6 X 1

$2.49

$

Usually ships in 2-5 days

0

$2.99

$

Usually ships in 2-5 days

0

41

Kohler 62 123 42-S

TUBE, OIL PICK-UP

$18.99

$

Usually ships in 2-5 days

0

42

Kohler 62 153 04-S

O-RING, OIL PUMP HOUSING

$7.49

$

In Stock, only 1 left!

0

44

Kohler 62 393 01-S

PUMP ASSEMBLY, OIL/GEROTOR

$28.99

$

Usually ships in 2-5 days

0

45

$6.99

$

In Stock, only 1 left!

0

47

Kohler 62 123 15-S

KIT, DIPSTICK TUBE

$41.99

$

Usually ships in 2-5 days

0

48

$15.99

$

Usually ships in 2-5 days

0

51

Kohler 62 126 13-S

BRACKET, DIPSTICK TUBE

$3.99

$

Usually ships in 2-5 days

0

52

Kohler 48 099 07-S

SWITCH, OIL PRESSURE

$40.99

$

Usually ships in 2-5 days

0

66

Kohler 25 032 22-S

SEAL, OIL (LEFT-HAND HELIX, PTO)

$12.99

$

In Stock, Qty 11

0

72

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.49

$

In Stock, only 2 left!

0

81

Kohler 25 086 618-S

SCREW, HEX FLANGE

$2.99

$

Usually ships in 2-5 days

0

82

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 2 left!

0

83

Kohler 25 086 404-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

86

Kohler 62 081 41-S

HOUSING, HORIZ OIL FILTER-MACHINED

$110.99

$

Usually ships in 2-5 days

0

87

Kohler 62 326 46-S

HOSE, OIL RETURN (MARINE)

$

$

Not available

91

Kohler 62 136 06-S

NIPPLE, OIL FILTER ASSEMBLY

$15.99

$

Usually ships in 2-5 days

0

93

Kohler 62 393 15-S

ASSEMBLY, OIL PUMP HOUSING

$71.99

$

Usually ships in 2-5 days

0

94

Kohler 62 081 50-S

HOUSING, OIL FILTER ASSEMBLY

$152.99

$

Usually ships in 2-5 days

0

96

Kohler 25 237 54-S

CLAMP, HOSE OETIKER

$1.99

$

Usually ships in 2-5 days

0

99

Kohler 62 009 35-S

KIT, CLOSURE PLATE

$556.99

$

Usually ships in 2-5 days

0

100

Kohler 25 086 129-S

SCREW,HEX FLNGE

$2.99

$

In Stock, Qty 16

0

101

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, Qty 20+

0

102

Kohler 25 139 28-S

PLUG, CUP

$2.49

$

Usually ships in 2-5 days

0

103

Kohler 25 431 32-S

SLEEVE, ANTI ABRASION

$13.99

$

Usually ships in 2-5 days

0

104

Kohler 25 462 27-S

VALVE, OIL DRAIN

$16.99

$

Usually ships in 2-5 days

0

105

Kohler 25 155 65-S

CONNECTOR, HOSE

$16.99

$

Usually ships in 2-5 days

0
