CH1000-3022 - Kohler Command PRO Twin Engine, Made for Gardner, 37hp, 27.5kW 04 CylinderHead/Breather Parts Diagram

Command PRO Twin Engine, Made for Gardner, 37hp, 27.5kW

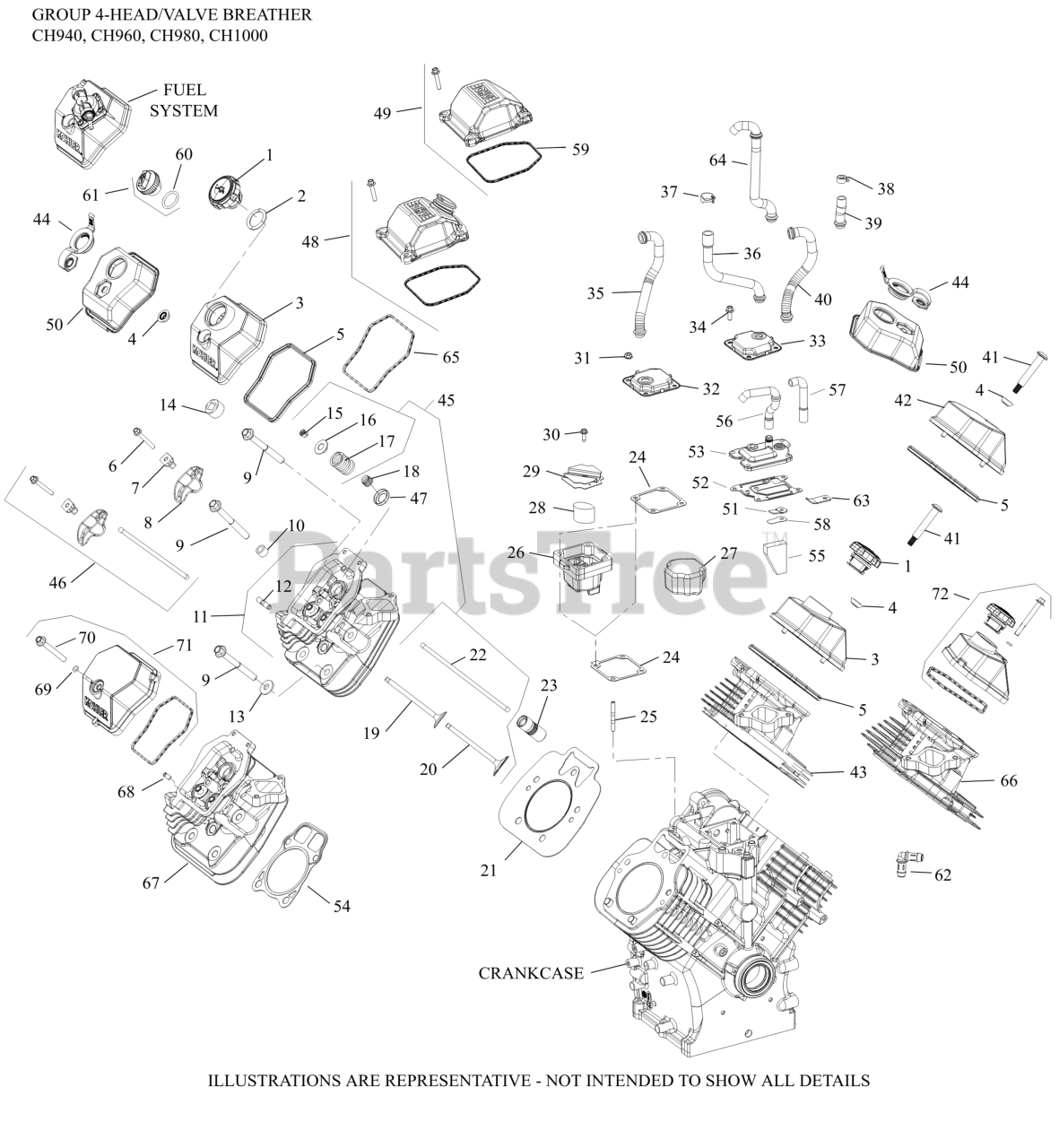

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 62 173 03-S

CAP ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

3

Kohler 62 096 27-S

KIT, COVER, VALVE (OIL FILL)

$61.99

$

In Stock, only 1 left!

0

4

Kohler 62 313 07-S

GROMMET, VALVE COVER SCREW

$2.99

$

In Stock, Qty 7

0

5

Kohler 62 032 15-S

SEAL, VALVE COVER-USE 62 032 20-S
(Superseded to 62 032 20-S)

$33.99

$

In Stock, only 2 left!

0

6

Kohler 32 086 04-S

SCREW, FLG M6X1.0X45-USE 25 086 764-S
(Superseded to 25 086 764-S)

$2.49

$

In Stock, only 2 left!

0

7

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

8

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

9

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 5

0

10

Kohler 62 112 03-S

SPACER

$2.49

$

In Stock, only 4 left!

0

11

Kohler 62 318 30-S

HEAD CYLINDER #2-USE 62 318 43-S
(Superseded to 62 818 02-S)

$396.99

$

Usually ships in 2-5 days

0

13

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 139 89-S

PLUG, PIPE 3/4 NPTF SQUARE

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

16

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 5

0

17

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

18

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, only 2 left!

0

19

Kohler 62 016 02-S

VALVE, EXHAUST

$55.99

$

Usually ships in 2-5 days

0

20

Kohler 62 017 01-S

VALVE, INTAKE

$30.99

$

Usually ships in 2-5 days

0

21

Kohler 62 841 01-S

KIT, CYLINDER HEAD GASKET

$34.99

$

In Stock, only 2 left!

0

22

Kohler 12 411 04-S

ROD, PUSH

$4.49

$

In Stock, only 1 left!

0

23

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC-USE 25 351 11-S
(Superseded to 25 351 11-S)

$23.99

$

In Stock, only 4 left!

0

24

Kohler 62 041 27-S

GASKET, BREATHER

$2.99

$

In Stock, Qty 9

0

27

Kohler 62 050 10-S

FILTER, BREATHER
(Superseded to 62 050 11-S)

$15.99

$

In Stock, only 1 left!

0

33

Kohler 62 033 06-S

KIT, BREATHER ASSEMBLY

$42.99

$

Usually ships in 2-5 days

0

34

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

40

Kohler 62 326 16-S

HOSE, BREATHER H/S

$21.99

$

Usually ships in 2-5 days

0

41

Kohler 25 086 272 -S

SCREW, SHOULDER

$

$

Not available

43

Kohler 62 318 28-S

HEAD CYLINDER #1-USE 62 318 42-S
(Superseded to 62 818 01-S)

$396.99

$

Usually ships in 2-5 days

0
