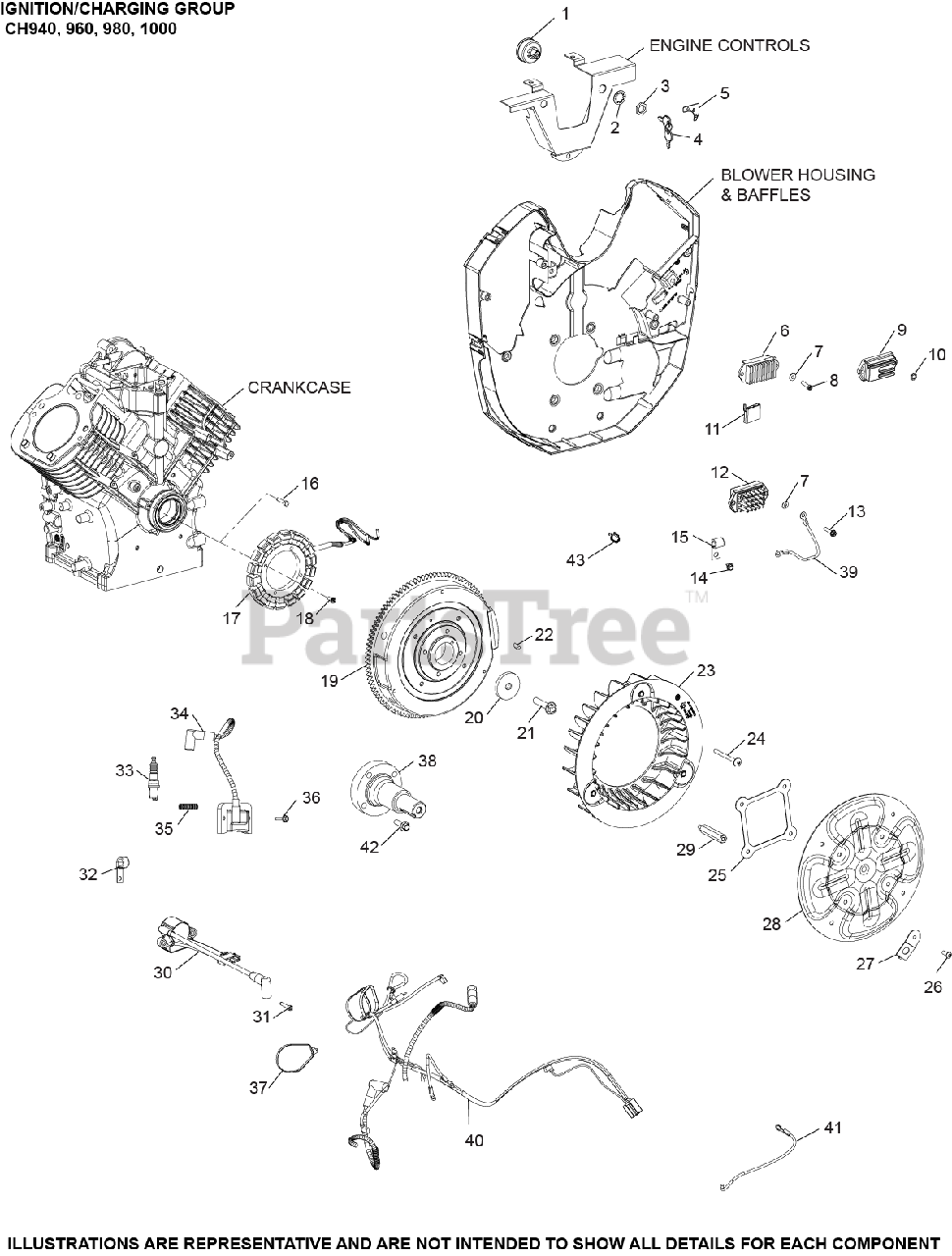

CH1000-2018 - Kohler Command PRO Twin Engine, Made for Allen Engineering, 37hp, 27.5kW Ignition/Charging Group 5-62-26 CH940-1000 Parts Diagram

Command PRO Twin Engine, Made for Allen Engineering, 37hp, 27.5kW

Ignition/Charging Group 5-62-26 CH940-1000 Parts Diagram

  • Title

1

Kohler 25 099 29-S

SWITCH ASSEMBLY, KEY

$49.99

$

Usually ships in 2-5 days

0

2

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

4

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 1 left!

0

5

Kohler 62 113 09-S

DECAL, KEYSWITCH

$10.99

$

Usually ships in 2-5 days

0

6

Kohler 25 403 29-S

REGULATOR, RECTIFIER (20/25 AMP) USE 25 403 32-S
(Superseded to 25 403 32-S)

$

$

Not available

10

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

11

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

13

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

14

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

15

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

17

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

18

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 62 025 05-S

FLYWHEEL ASSEMBLY

$388.99

$

Usually ships in 2-5 days

0

20

Kohler 62 468 01-S

WASHER, FLAT 13/32"

$5.49

$

Usually ships in 2-5 days

0

21

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

22

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

23

Kohler 62 157 02-S

KIT, FAN AND SPACERS

$28.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 132-S

SCREW, TRS HD M6X1.0X65

$8.49

$

In Stock, only 1 left!

0

25

Kohler 62 442 01-S

STIFFENER, GRASS SCREEN

$8.49

$

Usually ships in 2-5 days

0

27

Kohler 62 146 15-S

PLATE, GRASS SCREEN WASHER

$3.99

$

In Stock, only 2 left!

0

28

Kohler 62 162 08-S

KIT, GRASS SCREEN

$44.99

$

In Stock, only 1 left!

0

29

Kohler 62 072 01-S

STUD, GRASS SCREEN

$22.99

$

Usually ships in 2-5 days

0

30

Kohler 62 584 17-S

MODULE, SPARK ADVANCE (DSAI) ASSEMBLY

$68.99

$

Usually ships in 2-5 days

0

32

Kohler 25 154 04-S

CLIP, CABLE

$3.49

$

Usually ships in 2-5 days

0

33

Kohler 62 132 04-S

PLUG, SPARK

$13.99

$

Usually ships in 2-5 days

0

35

Kohler 62 431 02-S

SLEEVE, CORRUGATED

$2.99

$

Usually ships in 2-5 days

0

36

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

37

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

37

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 24 518 12-S

LEAD

$4.99

$

Usually ships in 2-5 days

0

40

Kohler 62 176 13-S

HARNESS,WIRING (DSAI,KEYSWITCH)

$362.99

$

Usually ships in 2-5 days

0

41

Kohler 62 518 01-S

LEAD, B+ TO STARTER SOLENOID

$4.49

$

Usually ships in 2-5 days

0

2546830-S

Kohler 25 468 30-S

WASHER, LOCK

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

25086129-S

Kohler 25 086 129-S

SCREW,HEX FLNGE

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 16

0
