CH1000-2018 - Kohler Command PRO Twin Engine, Made for Allen Engineering, 37hp, 27.5kW Engine Controls Group 9-62-33 Parts Diagram

Command PRO Twin Engine, Made for Allen Engineering, 37hp, 27.5kW

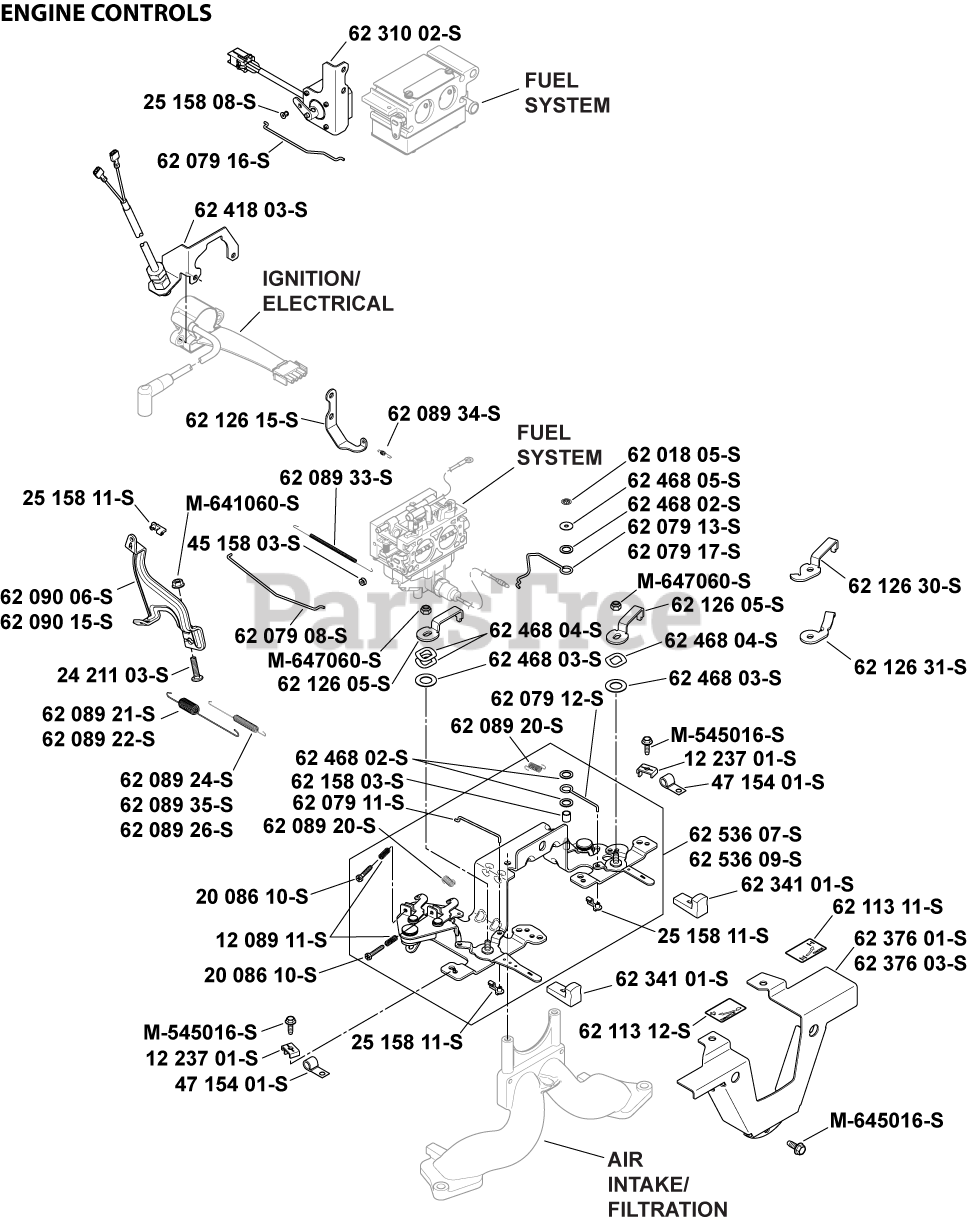

Engine Controls Group 9-62-33 Parts Diagram

  • Title
6208934-S

Kohler 62 089 34-S

SPRING, CHOKE ASSIST

$5.49

$

In Stock, Qty 9

0

2441103-S

Kohler 24 411 03-S

ROD, SPEED CONTROL

$15.99

$

Usually ships in 2-5 days

0

6201805-S

Kohler 62 018 05-S

RETAINER, PALNUT

$2.99

$

Usually ships in 2-5 days

0

6207917-S

Kohler 62 079 17-S

LINKAGE, CHOKE HORIZONTAL

$11.99

$

Usually ships in 2-5 days

0

6208950-S

Kohler 62 089 50-S

SPRING, GOVERNOR

$9.49

$

Usually ships in 2-5 days

0

6209014-S

Kohler 62 090 14-S

KIT, GOVERNOR LEVER USE 62 090 29-S
(Superseded to 62 090 29-S)

$12.99

$

In Stock, only 1 left!

0

6212615-S

Kohler 62 126 15-S

BRACKET, CHOKE ASSIST

$10.99

$

Usually ships in 2-5 days

0

6246802-S

Kohler 62 468 02-S

WASHER, NYLON

$2.49

$

In Stock, only 2 left!

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

6208921-S

Kohler 62 089 21-S

SPRING, GOVERNOR IDLE

$9.49

$

Usually ships in 2-5 days

0

6211311-S

Kohler 62 113 11-S

DECAL, CHOKE

$2.99

$

Usually ships in 2-5 days

0

6212631-S

Kohler 62 126 31-S

BRACKET, MANUAL CHOKE CONTROL

$39.99

$

Usually ships in 2-5 days

0

6234101-S

Kohler 62 341 01-S

KNOB, CONTROL LEVER

$4.99

$

Usually ships in 2-5 days

0

6246804-S

Kohler 62 468 04-S

WASHER, SPRING

$5.49

$

Usually ships in 2-5 days

0

6246805-S

Kohler 62 468 05-S

WASHER, STEEL

$2.99

$

In Stock, only 1 left!

0

M-647060-S

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

1223701-S

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

6207908-S

Kohler 62 079 08-S

LINKAGE, THROTTLE

$4.99

$

Usually ships in 2-5 days

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

6208933-S

Kohler 62 089 33-S

SPRING, LINKAGE

$7.49

$

In Stock, only 1 left!

0

2515811-S

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

4515803-S

Kohler 45 158 03-S

BUSHING USE 25 158 08-S
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 18

0

6237603-S

Kohler 62 376 03-S

PANEL, CONTROL - USE (#62 376 04-S)
(Superseded to 62 376 04-S)

$79.99

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0
