CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Rotor Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

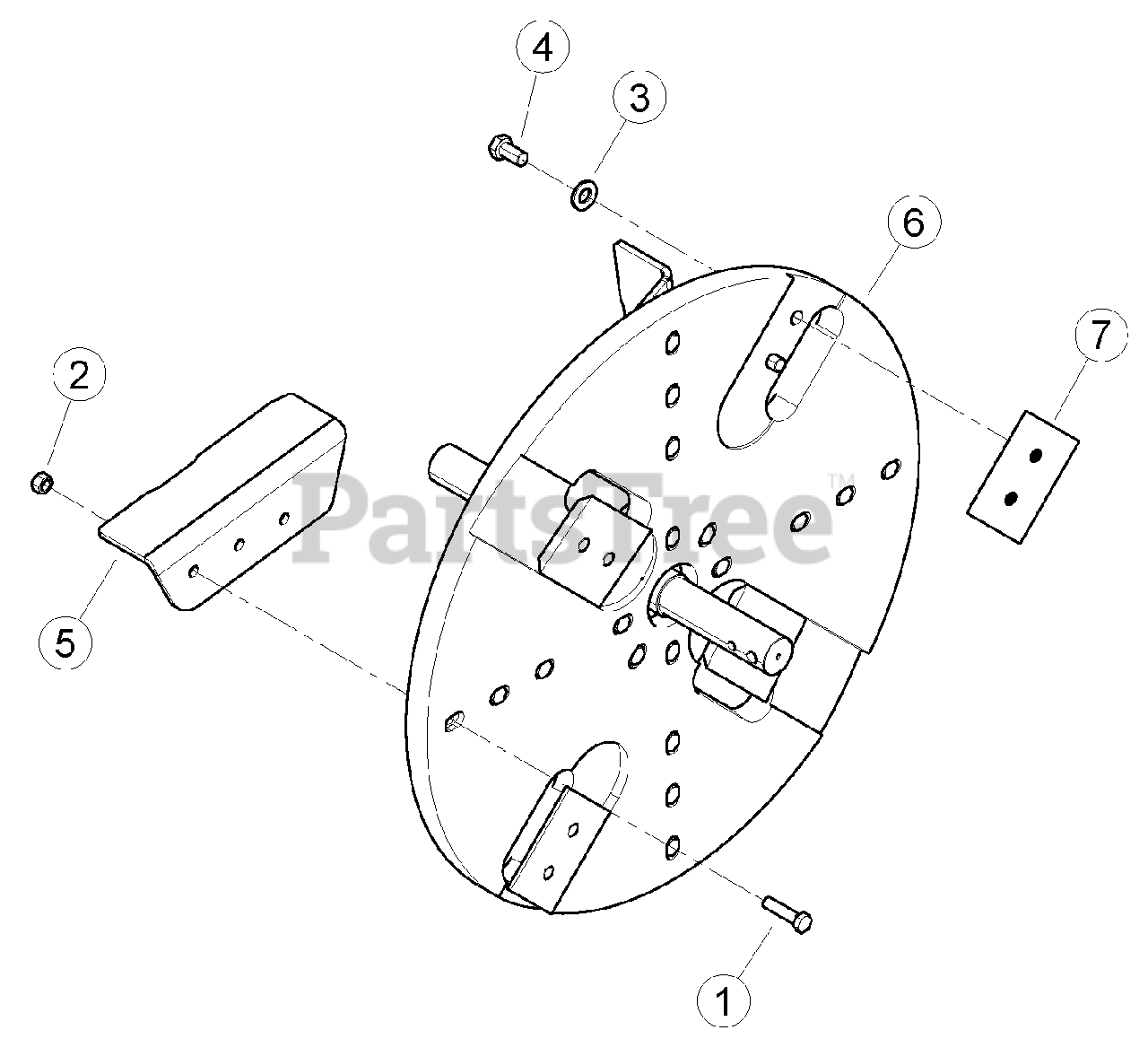

Rotor Parts Diagram

  • Title
1

Bear Cat 15015

BOLT, 1/2-13 X 2 GR5 HEX CAPSCREW

$

$

Not available

2

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

3

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/ PATCH

$11.99

$

Usually ships in 3-7 days

0

5

Bear Cat 71541-00

KIT, BIG CHIPPER FORMED PADDLES

Note: (INCLUDES ITEMS 1 & 2)

$336.99

$

Usually ships in 3-7 days

0

6

Bear Cat 76287-00

ASSEMBLY, 9 INCH CHIPPER ROTOR

$3871.99

$

Usually ships in 3-7 days

0

7

Bear Cat 76293-00

KIT, CHIPPER BLADE
(Superseded to 78361-00)

Note: (INCLUDES ITEMS 3 & 4)

$481.99

$

In Stock, only 1 left!

0
