CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) PTO Driveshaft Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

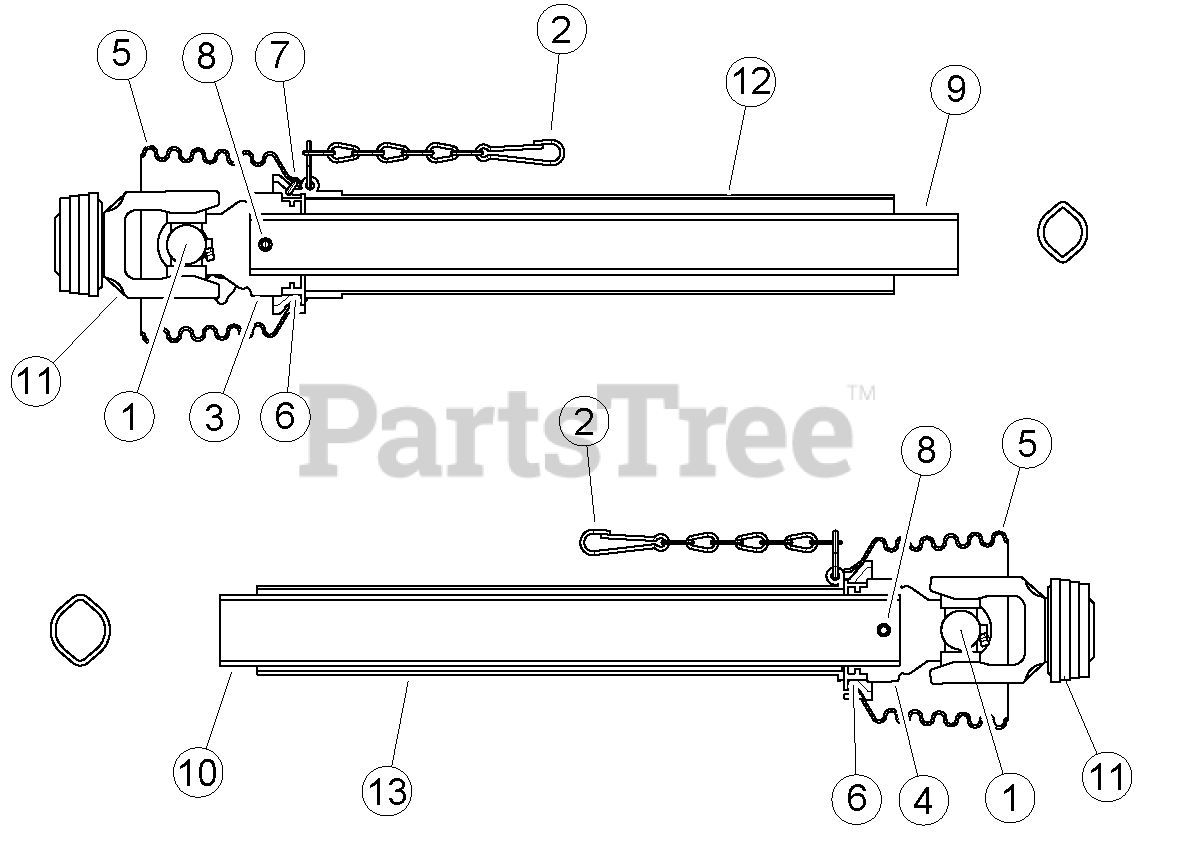

PTO Driveshaft Parts Diagram

  • Title
1

0883-0120-00

KIT, CROSS & BEARING W-2400

$

$

Not available

2

12209

CHAIN, SAFETY

$

$

Not available

3

Bear Cat 12215

YOKE, INBOARD 1B

$

$

Not available

4

12218

YOKE, INBOARD 2A

$

$

Not available

5

Bear Cat 12220

CONE, 6 RIB SAFETY

$

$

Not available

6

12223

RING, SC25 BEARING

$

$

Not available

7

Bear Cat 15574

SCREW, WS365305

$

$

Not available

8

15575

PIN, M10 X 80 SPRING

$

$

Not available

9

Bear Cat 32243-00

PROFILE, INNER 1B

$133.99

$

Usually ships in 3-7 days

0

10

Bear Cat 32244-00

PROFILE, OUTER 2A

$160.99

$

Usually ships in 3-7 days

0

11

Bear Cat 32245-00

YOKE, 1-3/8-6 SPLINGE ASGE

$

$

Not available

12

Bear Cat 32246-00

GUARD, TUBE OUTER

$96.99

$

Usually ships in 3-7 days

0

13

Bear Cat 32247-00

GUARD, TUBE INNER

$96.99

$

Usually ships in 3-7 days

0

Bear Cat 12210

DECAL, OUT

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 12211

DECAL, IN

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32248-00

COLLAR, REINFORCING

Note: (NOT SHOWN)

$31.99

$

Usually ships in 3-7 days

0

Bear Cat 32250-00

DECAL, CE MARK

Note: (NOT SHOWN)

$6.99

$

Usually ships in 3-7 days

0

Bear Cat 32251-00

DECAL, EUROPEAN

$15.99

$

Usually ships in 3-7 days

0
