CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Idler Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

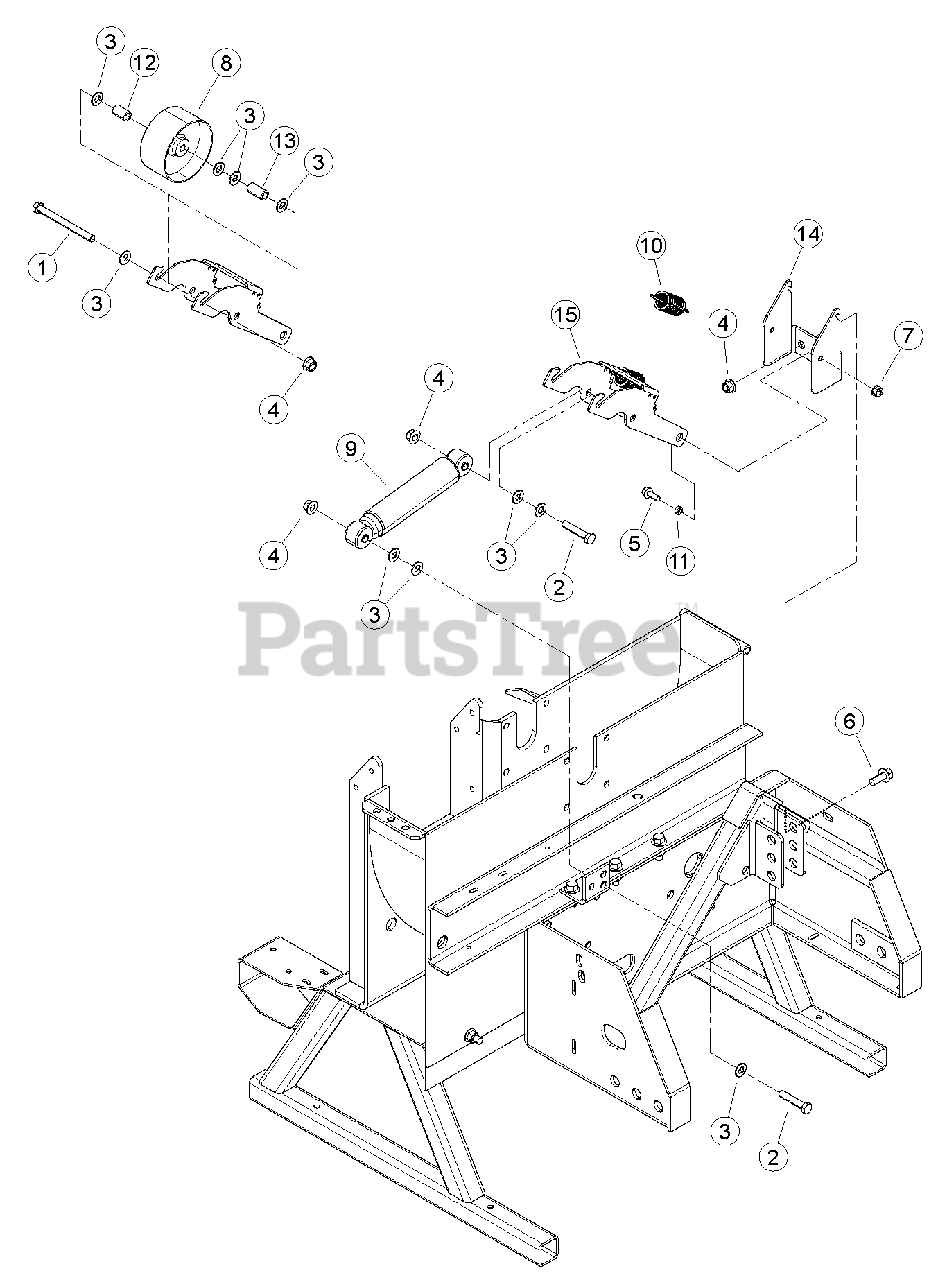

Idler Parts Diagram

  • Title

1

0103-0826-00

BOLT, 1/2 X 5-1/2 HEX GR5 ZP

$

$

Not available

2

Bear Cat 15092

BOLT, 1/2 X 2-1/2 GR5 HEX CAP ZP

$

$

Not available

3

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

4

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

5

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

6

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

7

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 16230

PULLEY, IDLER 5 X 2.50"

$85.99

$

Usually ships in 3-7 days

0

9

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

10

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

11

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

12

Bear Cat 70369

SPACER, .75 X 1.18

$14.99

$

Usually ships in 3-7 days

0

13

Bear Cat 70371

SPACER, .75 X 1.47

$18.99

$

Usually ships in 3-7 days

0

14

Bear Cat 74225-12

BRACKET, INSIDE IDLER MOUNTING

$

$

Not available

15

Bear Cat 74226-12

ARM, INSIDE IDLER

$

$

Not available
