CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Feed Roller Housing Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

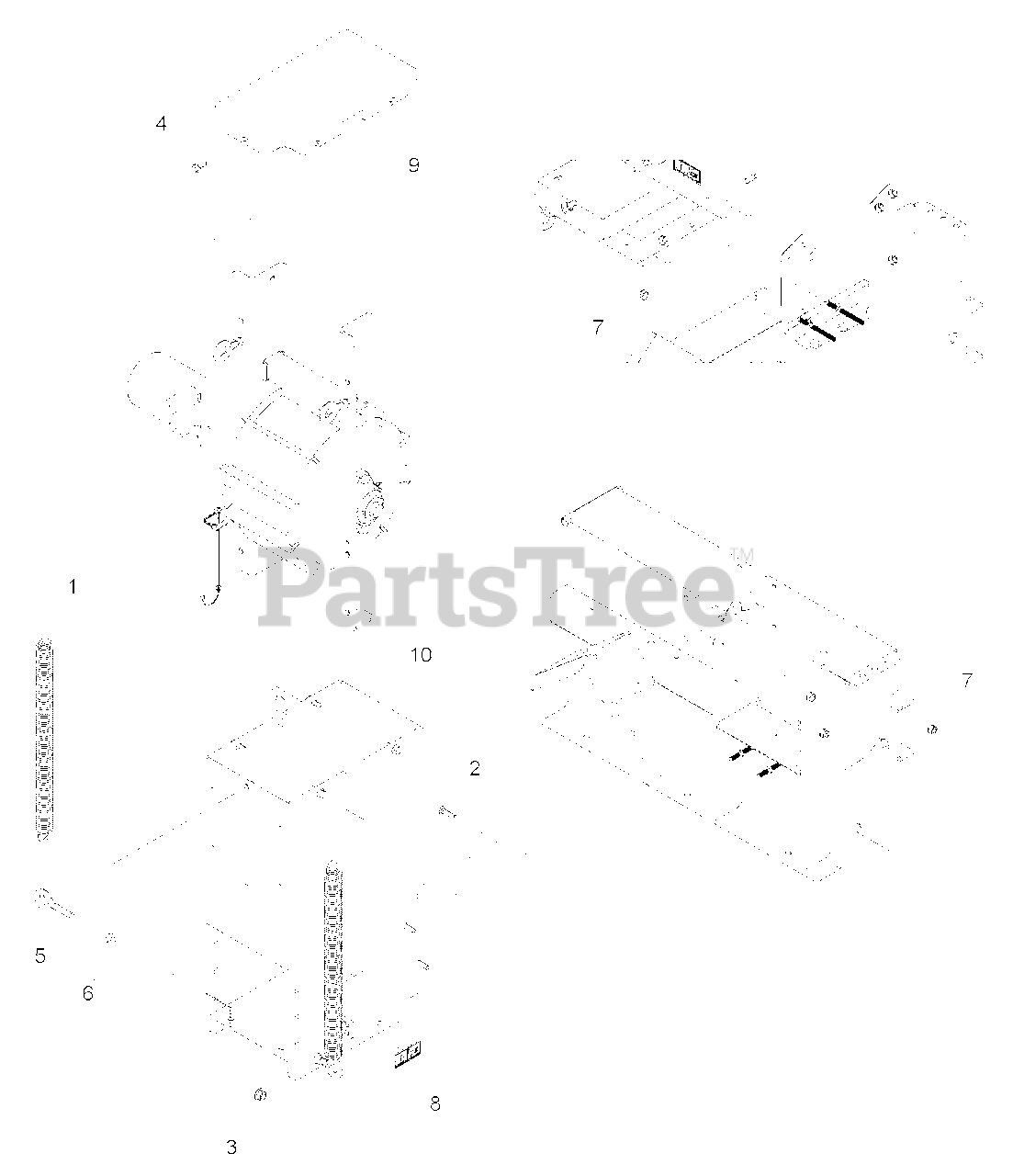

Feed Roller Housing Parts Diagram

  • Title
1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

15058

BOLT, 3/8-16 X 1-1/2 GR5 CRG

$

$

Not available

3

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

4

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

5

Bear Cat 15502

EYEBOLT, 1/2-13 X 2

$31.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

7

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

9

Bear Cat 77151-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

10

Bear Cat 77152-35

WELDMENT, ROLLER SUPPORT

$

$

Not available
