CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Feed Roller Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

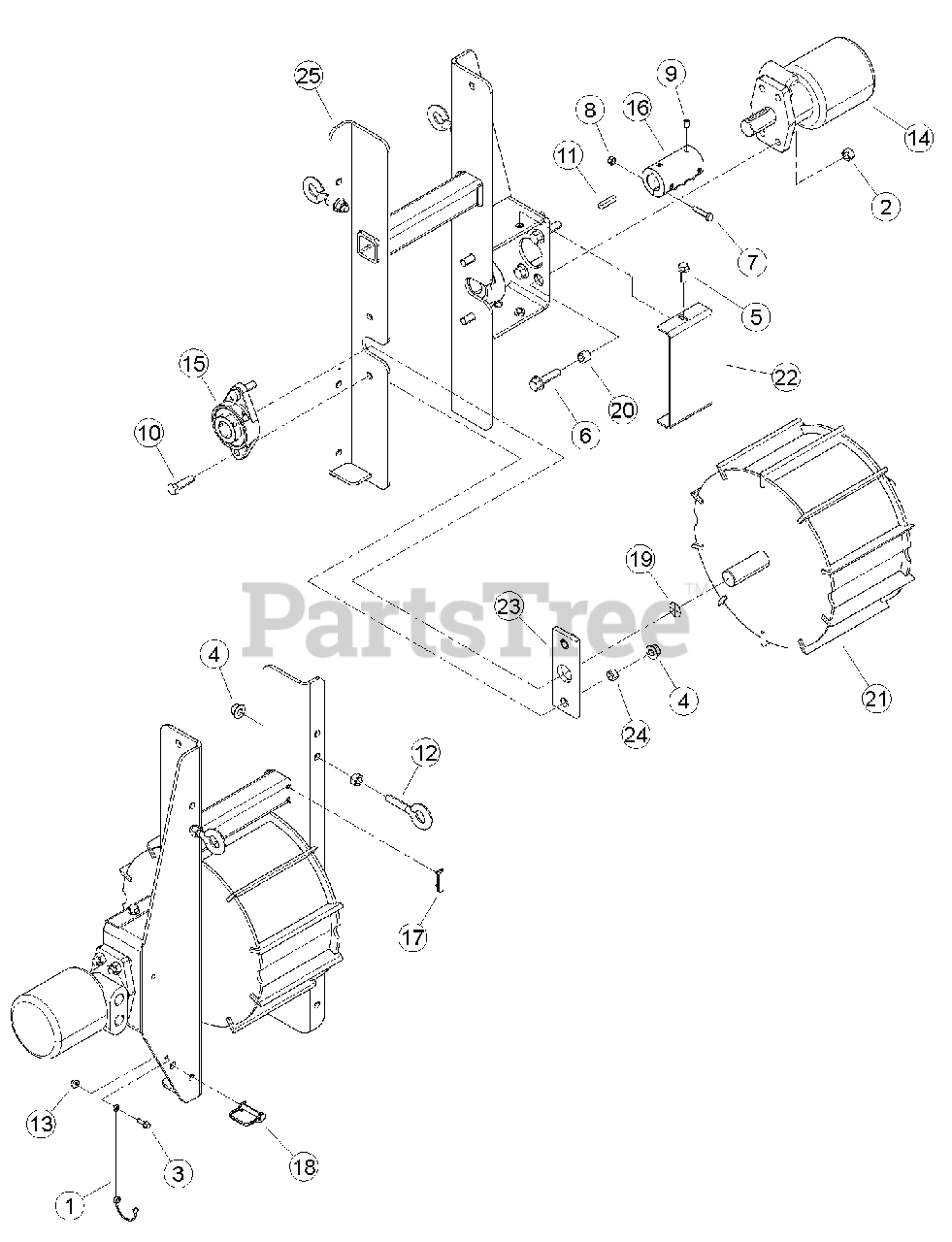

Feed Roller Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

3

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

4

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

5

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

6

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

7

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16-18 NE NYLOCK

$

$

Not available

9

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

10

15478

BOLT, 1/2-13 X 1-3/4 GR5 HCPS

$

$

Not available

11

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

12

Bear Cat 15502

EYEBOLT, 1/2-13 X 2

$31.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

16

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

17

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

18

Bear Cat 17879

PIN, 3/8 X 1-1/2 LYNCH

$

$

Not available

19

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

20

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

21

Bear Cat 71298

WELDMENT, TOP GRAB ROLLER
(Superseded to 77135-00)

$814.99

$

Usually ships in 3-7 days

0

22

Bear Cat 71335

SHIELD, COUPLER

$45.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

25

Bear Cat 77150-12

WELDMENT, ROLLER SLIDE

$

$

Not available
