CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Drive Assembly (A) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

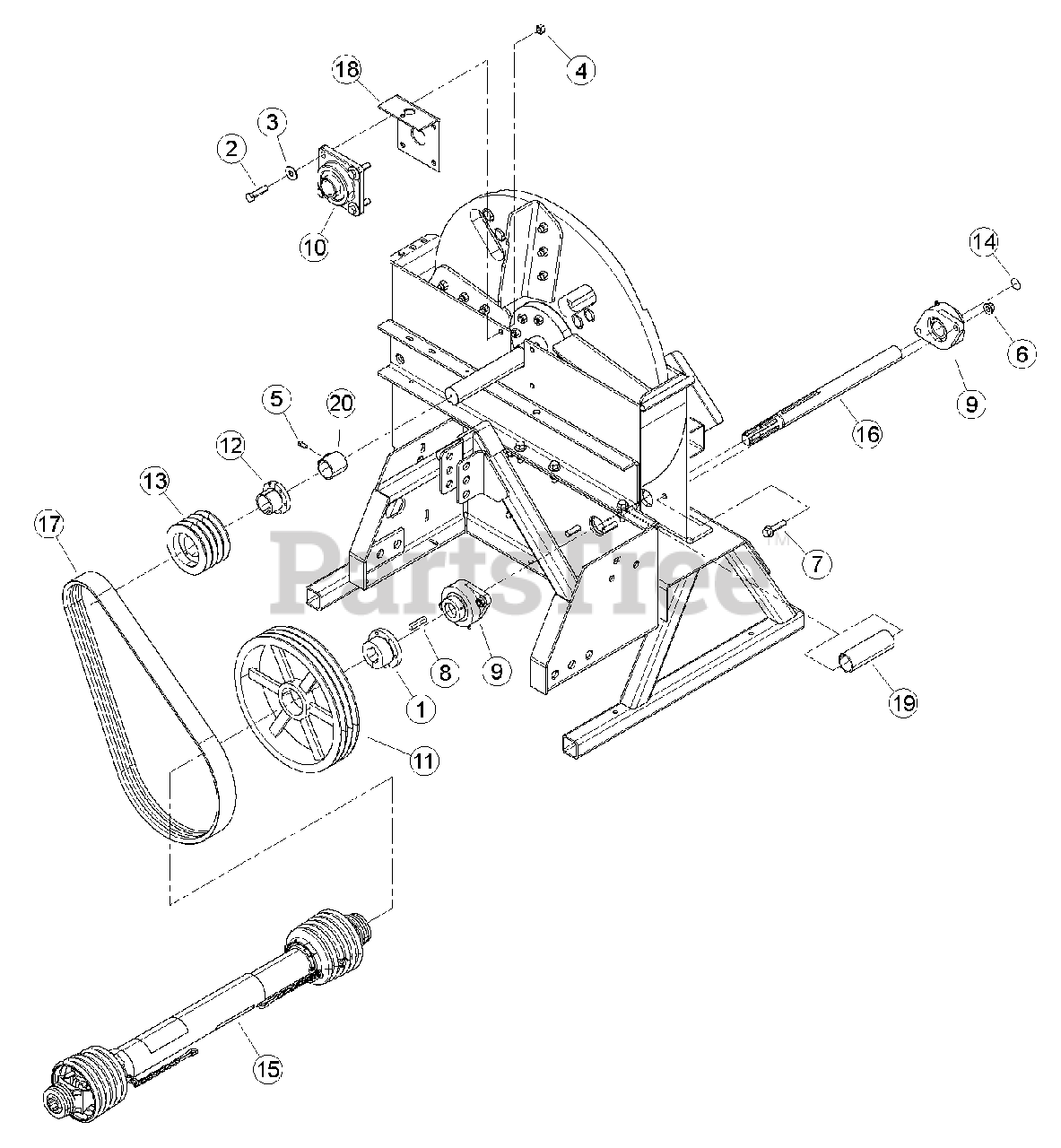

Drive Assembly (A) Parts Diagram

  • Title

1

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

2

Bear Cat 15015

BOLT, 1/2-13 X 2 GR5 HEX CAPSCREW

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2 FLAT

$

$

Not available

4

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

5

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

8

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

9

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

10

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

11

Bear Cat 16581

SHEAVE, 3B13.6 SK

$

$

Not available

12

Bear Cat 16615

BUSHING, SD 1-3/4"

$

$

Not available

13

17348

SHEAVE, 4BQ4.8 SD

$

$

Not available

14

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

15

30919-00

DRIVELINE, 33.9/47.6" 1-3/8 SPL CE

$

$

Not available

16

Bear Cat 30932-00

SHAFT, 6 SPLINE INPUT

$333.99

$

Usually ships in 3-7 days

0

17

Bear Cat 32252-00

BELT, 3RB64
(Superseded to 34400-00)

$177.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

19

Bear Cat 71409

SHIELD, SHAFT

$28.99

$

Usually ships in 3-7 days

0

20

Bear Cat 73354-12

WELDMENT, SPACER

$

$

Not available
