CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Chute (B) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

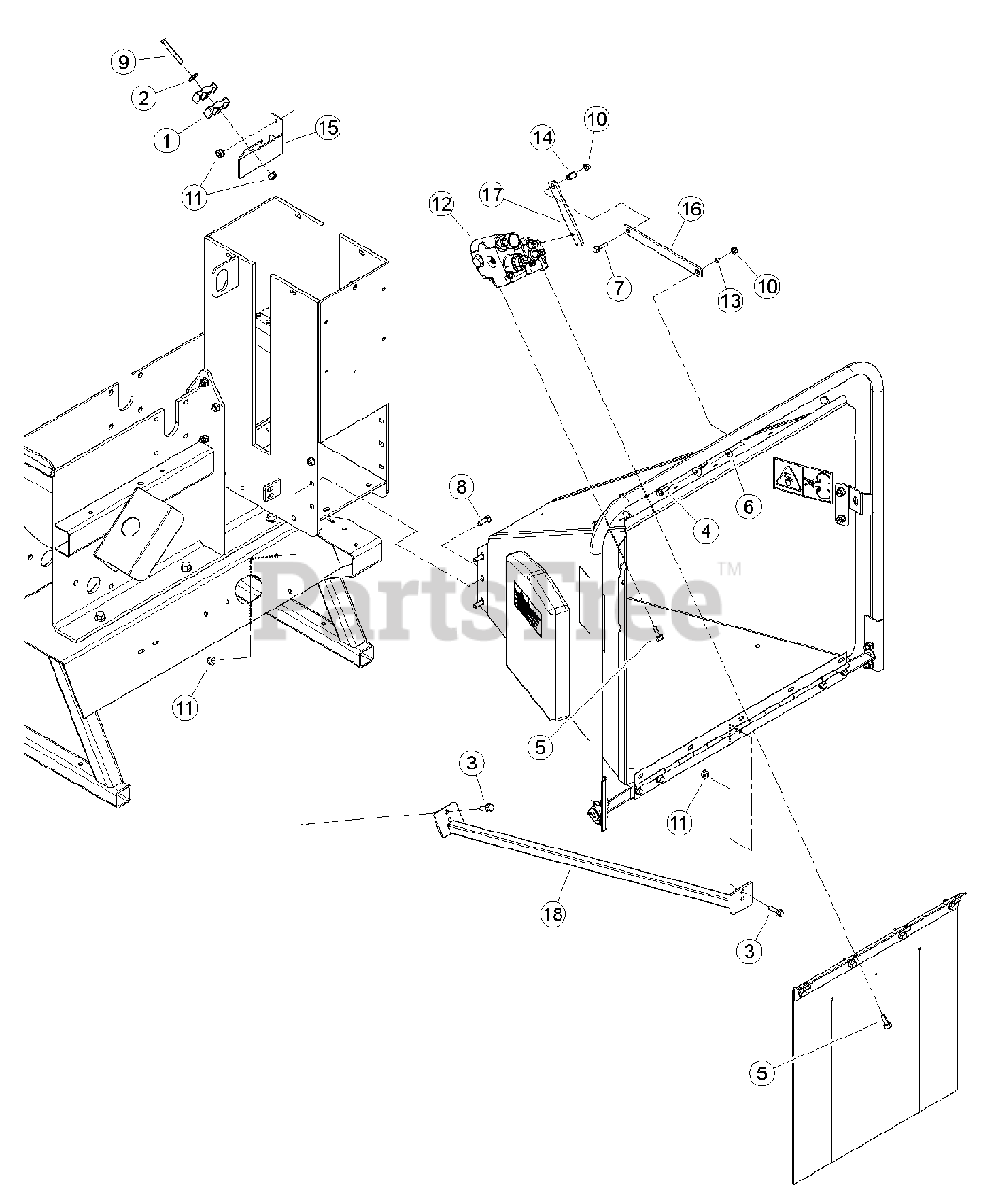

Chute (B) Parts Diagram

  • Title
1

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

3

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

7

15258-00

BOLT, 5/16 X 1-1/4 FLANGE NC

$

$

Not available

8

15378

BOLT, 3/8-16 X 1-1/4 GR5 CRG

$

$

Not available

9

Bear Cat 15437

BOLT, 3/8 X 2-3/4" GR5 NC HHCS ZP

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 33736-00

VALVE, 4-WAY 4-POSITION FC & RELIEF

$2690.99

$

Usually ships in 3-7 days

0

13

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

14

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

15

73397-35

WELDMENT, HOSE BRACKET

$

$

Not available

16

Bear Cat 73670-12

LEVER, VALVE CONTROL

$

$

Not available

17

Bear Cat 73691-12

LINK, VALVE CONTROL

$

$

Not available

18

Bear Cat 74228-12

WELDMENT, CHUTE SUPPORT

$

$

Not available
