CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Chute (A) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

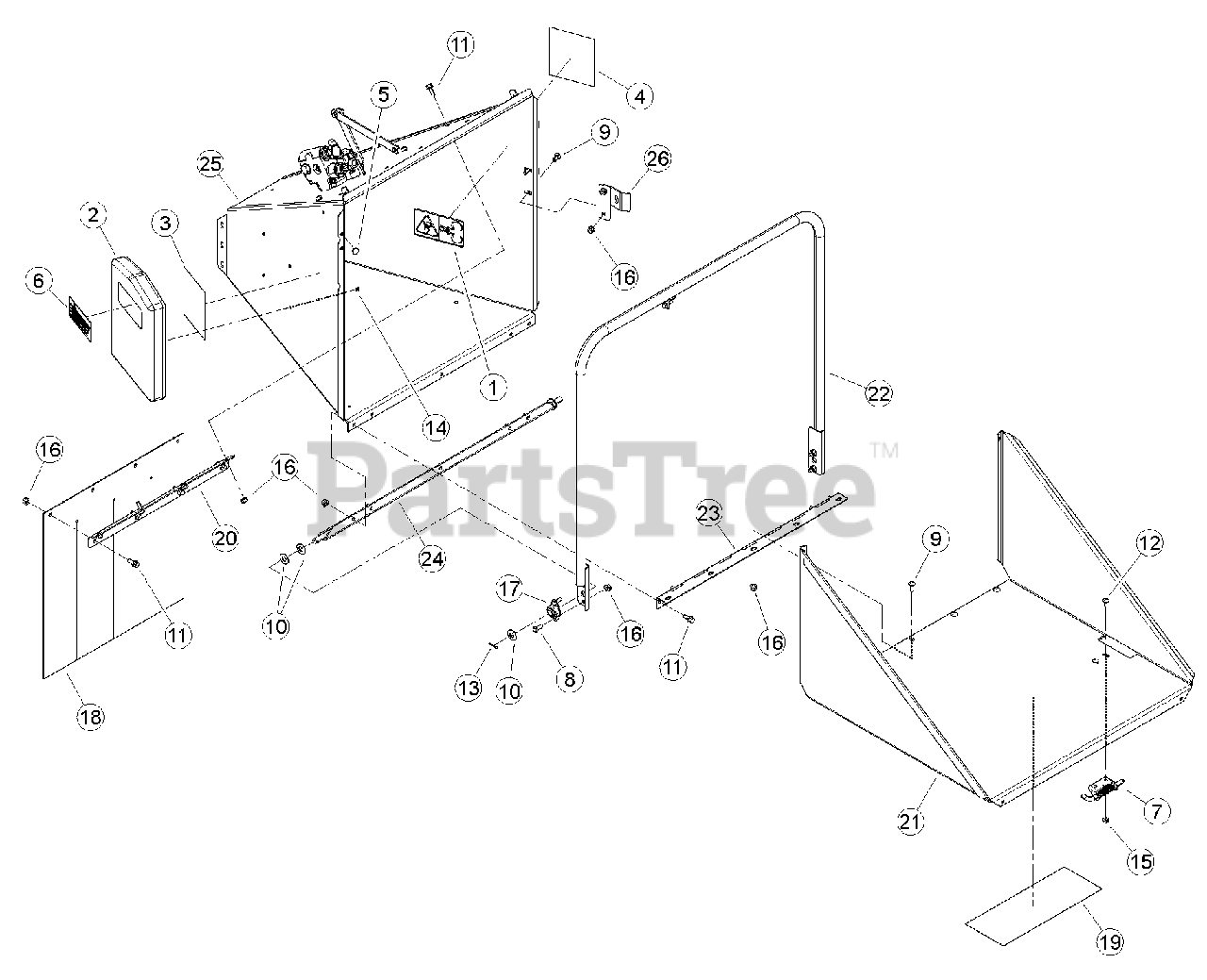

Chute (A) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

7

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

8

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

9

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

10

15129

WASHER, 5/8 SAE FLAT

$

$

Not available

11

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

14

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT 5/8"

$34.99

$

Usually ships in 3-7 days

0

18

Bear Cat 30325-00

FLAP, 9 INCH CHUTE

$82.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

20

70754-12

SUPPORT, 9 INCH CHIPPER FLAP

$

$

Not available

21

71059-12

WELDMENT, CHUTE EXTENSION TRAY

$

$

Not available

22

Bear Cat 71352

WELDMENT, CONTROL ARM

$

$

Not available

23

Bear Cat 71492-12

HINGE, EXTENSION TRAY

$

$

Not available

24

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

25

Bear Cat 72299-35

WELDMENT, BIG CHIPPER CHUTE

$

$

Not available

26

Bear Cat 73408-35

PLATE, TRAY STOP (NO KNEE BAR)

$

$

Not available
