CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Base Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

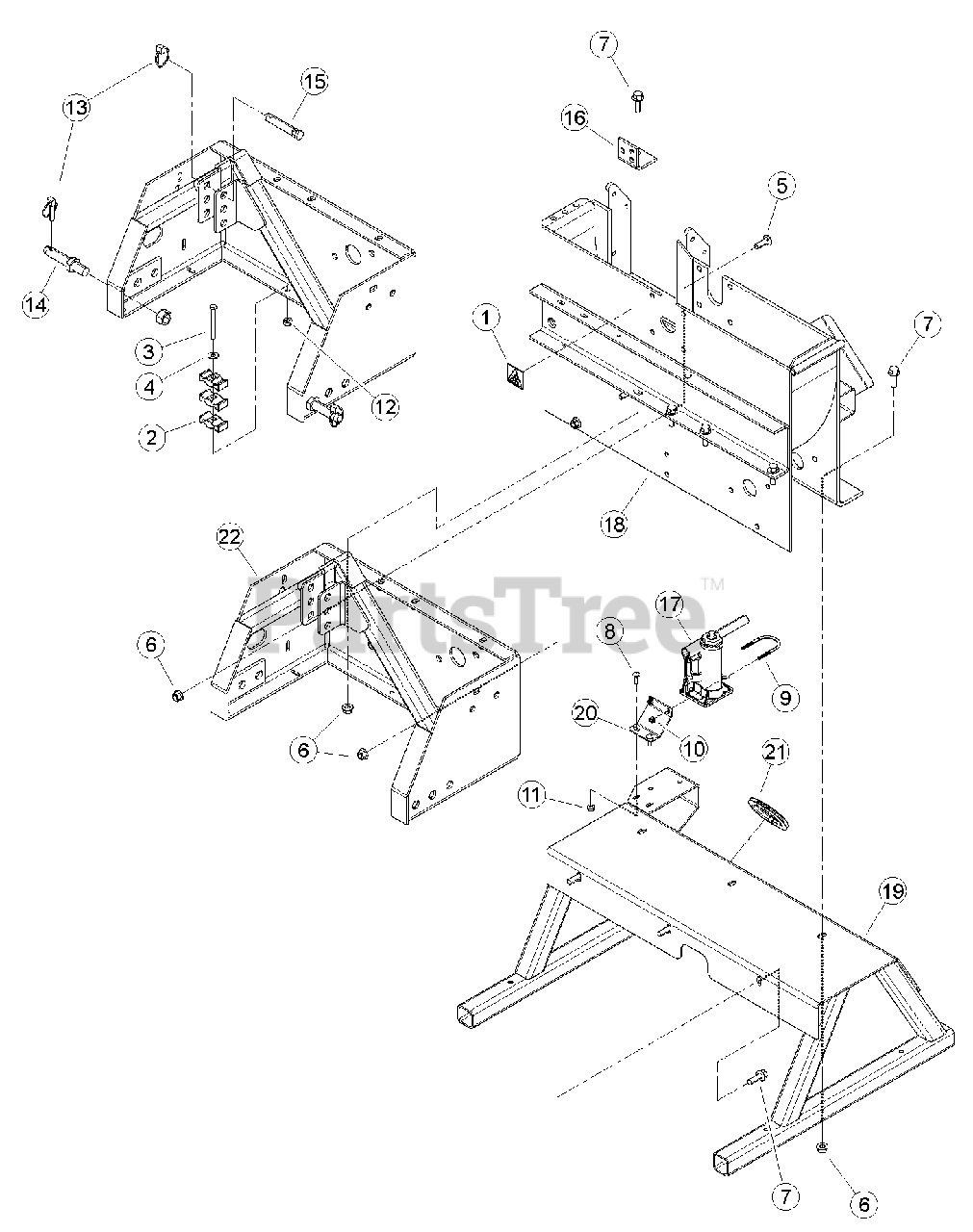

Base Parts Diagram

  • Title
1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

3

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

5

Bear Cat 15157

BOLT, 1/2 X 1-1/2" GR5 CRG ZP

$8.49

$

Usually ships in 3-7 days

0

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

8

Bear Cat 15301

BOLT, 5/16-18 X 1 GR5 CRG

$

$

Not available

9

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 16015

PIN, 7/16 X 1-1/4 LYNCH

$

$

Not available

14

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5" LG

$24.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2" LG

$14.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71674-12

ANGLE, LOWER SHOCK

$

$

Not available

17

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

18

74229-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

19

Bear Cat 74230-12

WELDMENT, PTO STAND

$

$

Not available

20

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

21

Bear Cat 75949-00

TRIM, SLOT EDGE COVER

$30.99

$

Usually ships in 3-7 days

0

22

77764-35

WELDMENT, HITCH SUPPORT

$

$

Not available
