CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: D00001 - G08143) Hydraulic Layout (SN: G03555 - G08143) Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

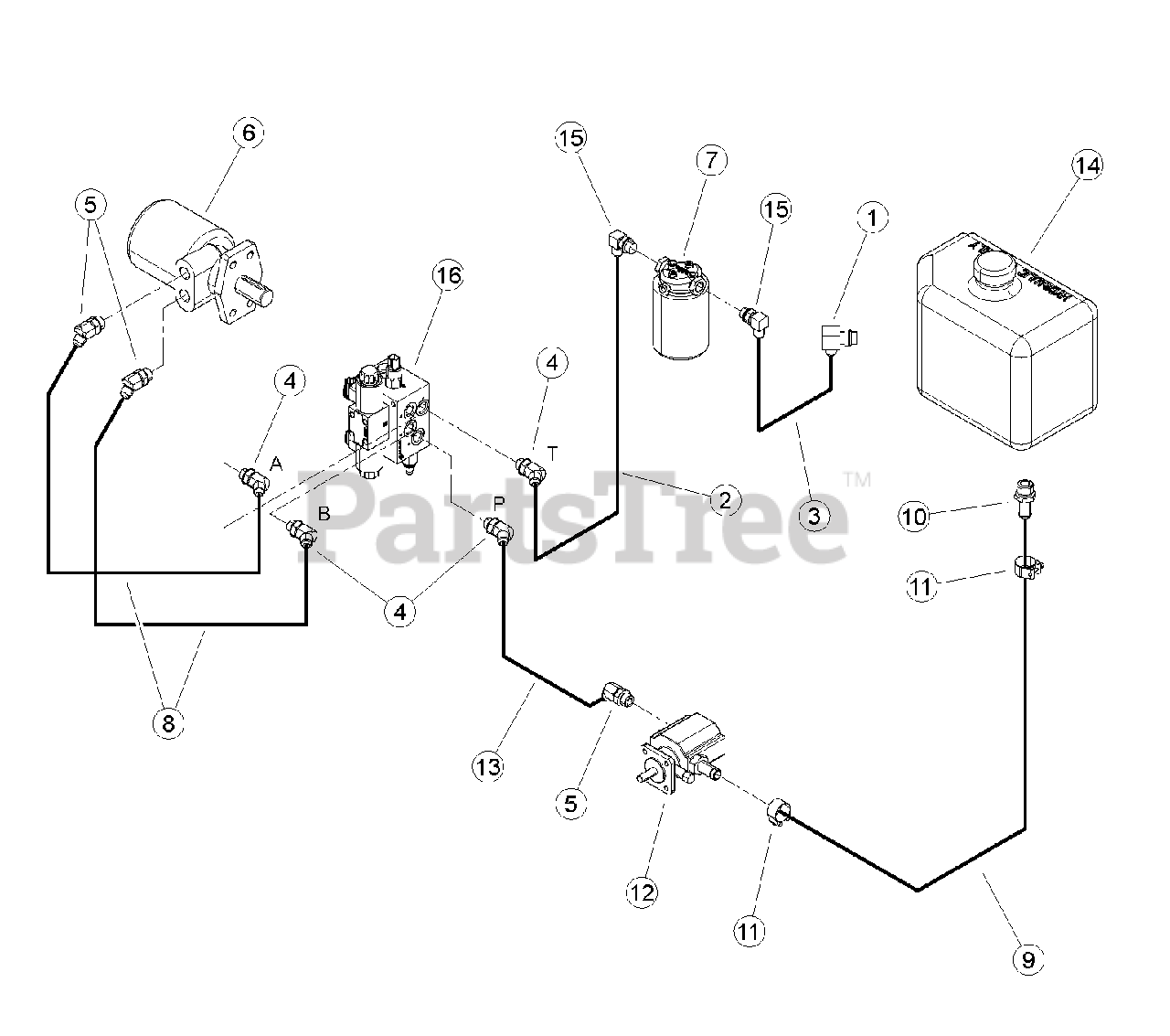

Hydraulic Layout (SN: G03555 - G08143) Parts Diagram

  • Title

1

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

2

Bear Cat 12310

HYD. HOSE ASSEMBLY., 2X-8FMJICSW

$78.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14278-00

HOSE ASSEMBLY, 8FMJIC/8FMJIC SW X 32"

$61.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14417-00

ADAPTER, -8MORB/-8MJIC 45

$

$

Not available

5

16067

ADAPTER, -10MORING/-8MJIC 45 DEG

$

$

Not available

6

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

7

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

8

Bear Cat 18029-00

HOSE, .375 X 36 -8FMJIC/-8FMJIC

$82.99

$

Usually ships in 3-7 days

0

9

30958-00

HOSE, .75 ID X 21 IN 100R4 HYD

$

$

Not available

10

30969-00

ADAPTER, -10 MORB/-12 HOSE BARB

$

$

Not available

11

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

12

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36263-00

HOSE, .50 X 48 -8FMJIC/-8FMJIC

$84.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

15

41287

ADAPTER, -8MORING/-8MJIC 90 DEG

$

$

Not available

16

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0
