CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: D00001 - G08143) Chute (NON-CE COMPLIANT) SN: F02051 - G08143 Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

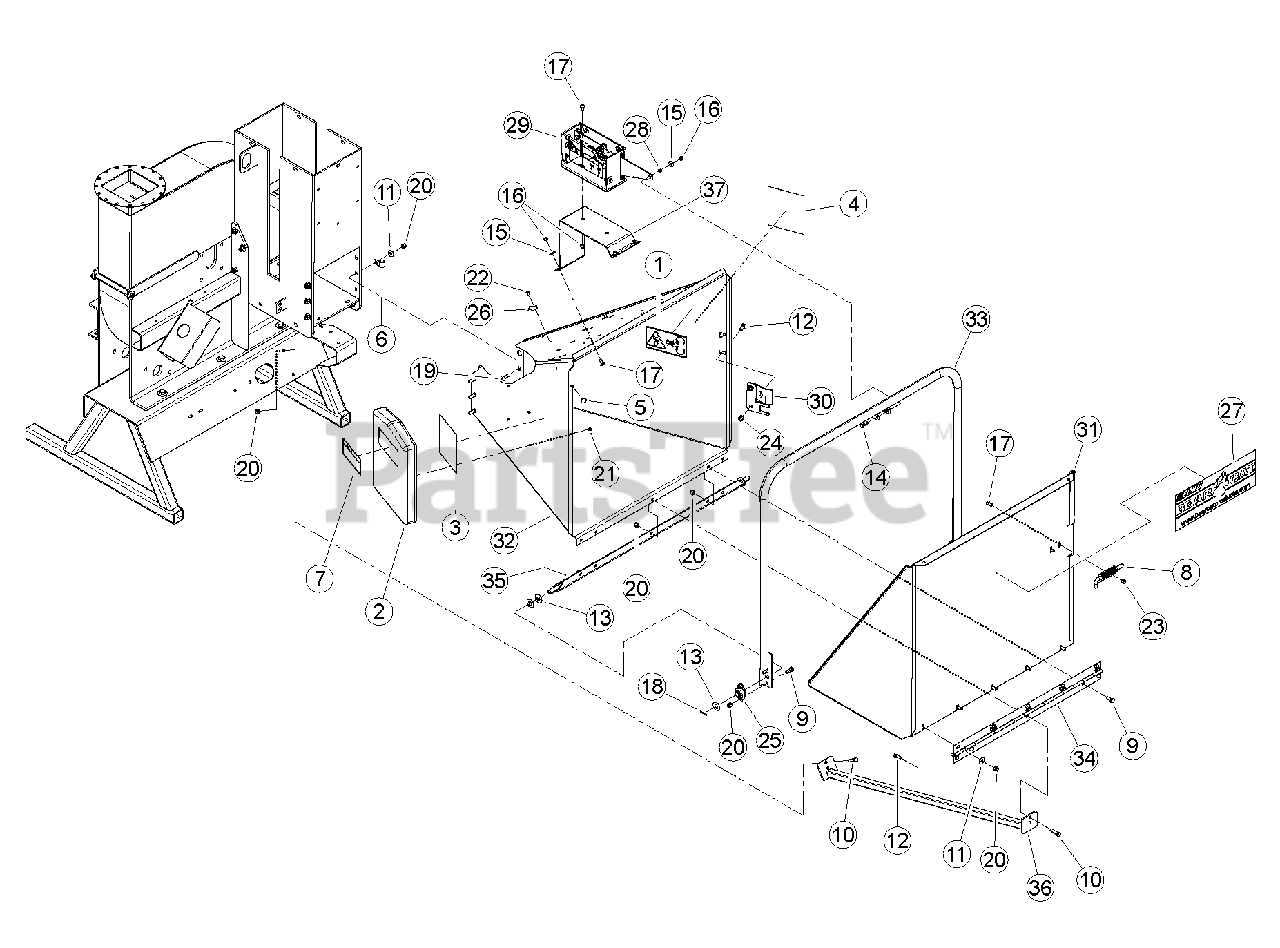

Chute (NON-CE COMPLIANT) SN: F02051 - G08143 Parts Diagram

  • Title

1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTRUCTION MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

14048-00

CLAMP, 9/16 COATED

$

$

Not available

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

9

Bear Cat 15006

BOLT, 3/8 X 1 HEX GR5 ZP

$

$

Not available

10

Bear Cat 15007

BOLT, 3/8 X 1-1/2 HEX GR5 ZP

$

$

Not available

11

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

12

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

13

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

14

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

15

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

18

Bear Cat 15375

COTTER PIN, 1/8 X 1.00 ZP

$

$

Not available

19

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

20

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

21

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

22

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

23

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

24

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

25

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT 5/8

$34.99

$

Usually ships in 3-7 days

0

26

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

27

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

28

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

29

70780-00

ASSEMBLY, SWITCH BOX

$

$

Not available

30

71058-35

PLATE, TRAY STOP

$

$

Not available

31

71059-12

WELDMENT, CHUTE EXTENSION TRAY

$

$

Not available

32

71067-35

WELDMENT, BIG CHIPPER CHUTE

$

$

Not available

33

Bear Cat 71352

WELDMENT, CONTROL ARM

$

$

Not available

34

Bear Cat 71492-12

HINGE, EXTENSION TRAY

$

$

Not available

35

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

36

Bear Cat 74228-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

37

Bear Cat 75207-12

MOUNT, SWITCH BOX

$75.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 INCH BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
