CH 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: B00001 - C09929) Drive Assembly - Front Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

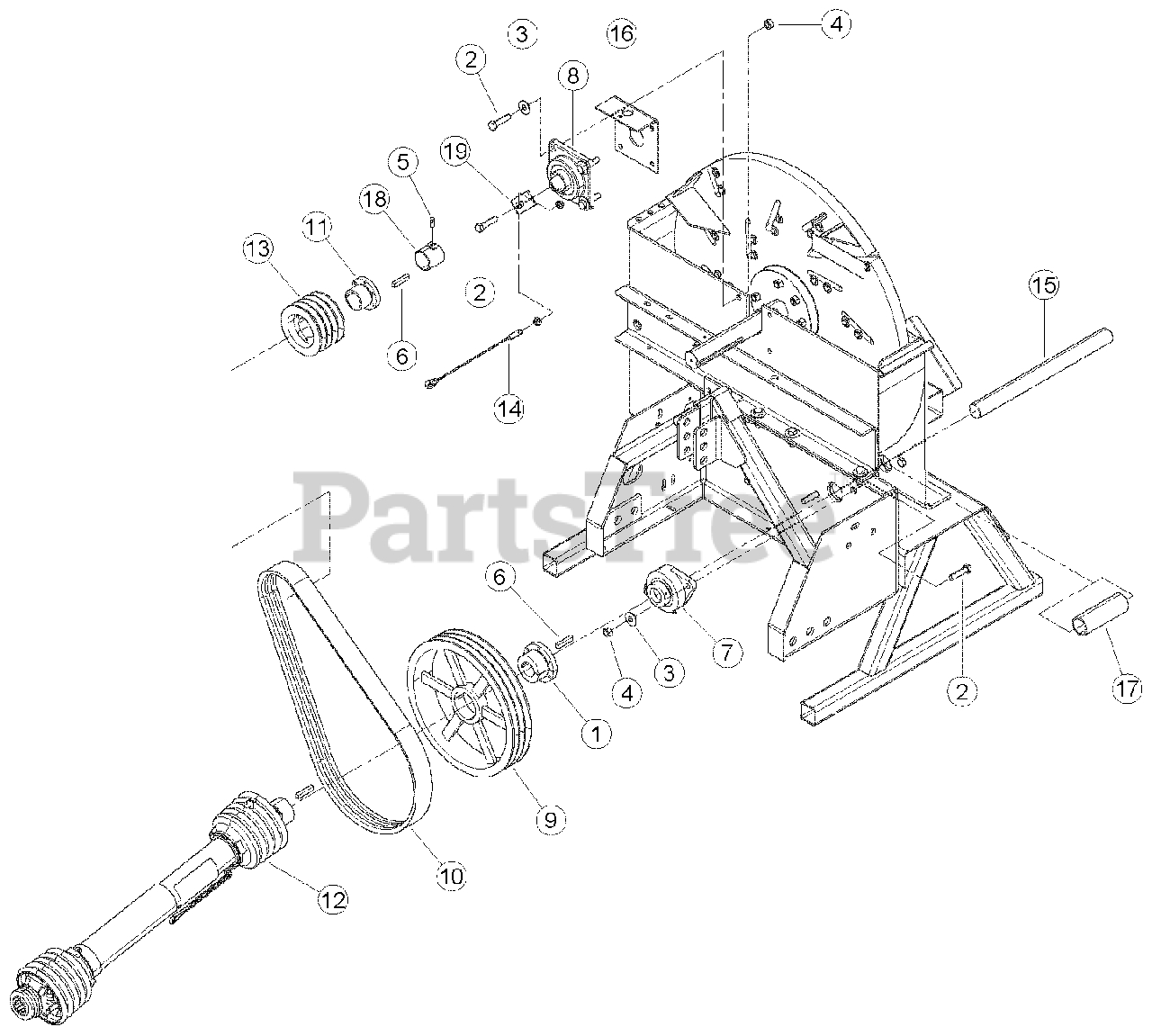

Drive Assembly - Front Parts Diagram

  • Title

1

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

2

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

4

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

5

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

6

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

7

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

8

Bear Cat 16553

BEARING, 4 BOLT FLANGE 1-3/4" BORE

$

$

Not available

9

Bear Cat 16581

SHEAVE, 3B13.6 SK

$

$

Not available

10

BELT, BANDED CHIPPER. (WAS PN 16582, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32252-00 BELT, 3RB64)

$

$

Not available

10

Bear Cat 32252-00

BELT, 3RB64
(Superseded to 34400-00)

$177.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16615

BUSHING, SD 1-3/4"

$

$

Not available

12

DRIVESHAFT. (WAS PN 16958, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32219-00 DRIVELINE)

$

$

Not available

12

Bear Cat 32219-00

DRIVELINE
(Superseded to 71592-00)

$773.99

$

Usually ships in 3-7 days

0

13

17348

SHEAVE, 4BQ4.8 SD

$

$

Not available

14

Bear Cat 18472-00

SENSOR, PROXIMITY
(Superseded to 32108-00)

$181.99

$

In Stock, only 1 left!

0

15

Bear Cat 71228

JACKSHAFT, CHIPPER DRIVE

$94.99

$

In Stock, only 1 left!

0

16

Bear Cat 71325

WELDMENT, LEFT BEARING BRACKET

$

$

Not available

17

Bear Cat 71409

SHIELD, SHAFT

$28.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73354-12

WELDMENT, SPACER

$

$

Not available

19

Bear Cat 75951-12

BRACKET, SENSOR SHORT MOUNT

$

$

Not available
