CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) Rotor Housing Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

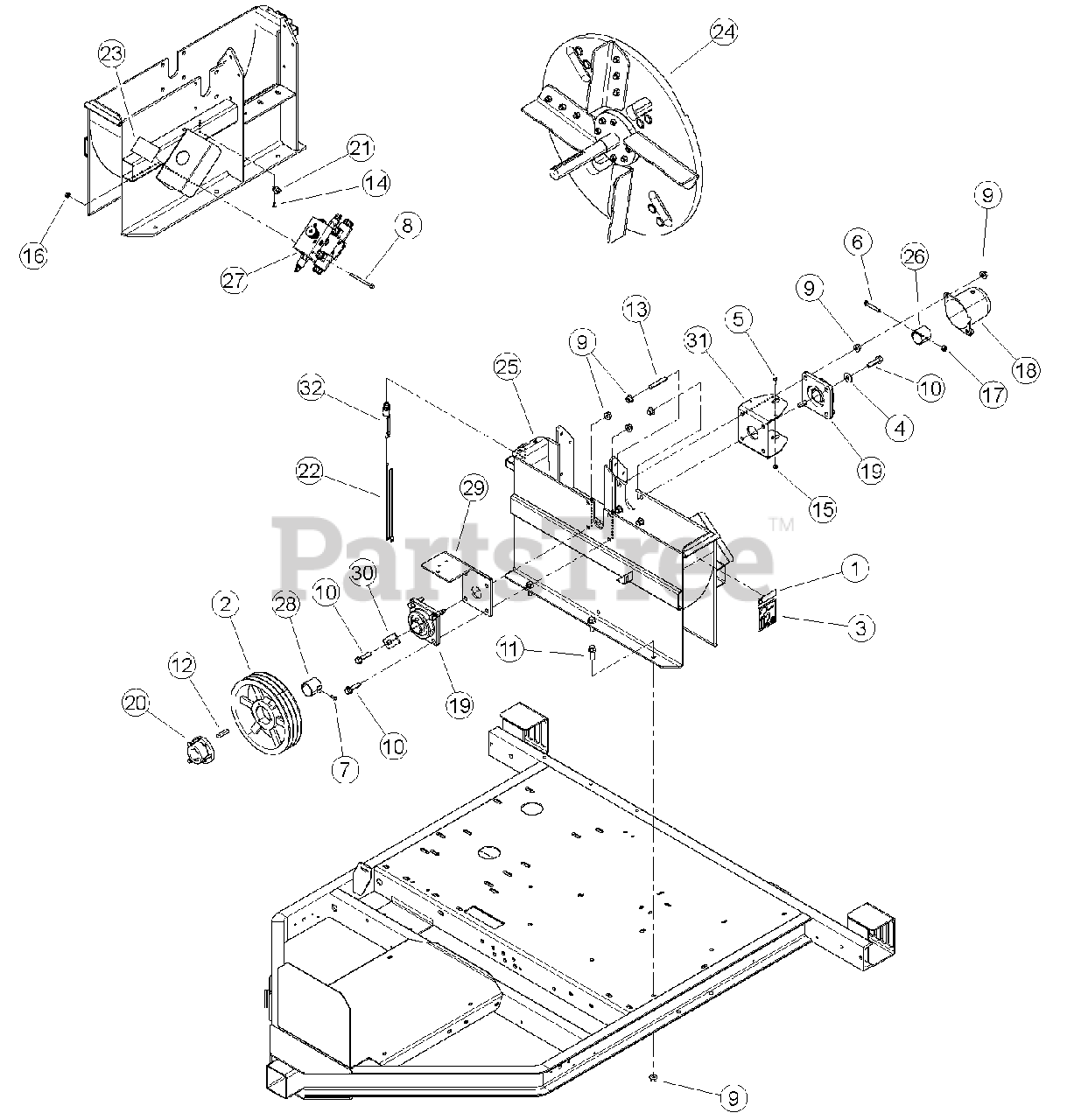

Rotor Housing Parts Diagram

  • Title
1

12256

DECAL, 72928S INFORMATION (CE COMPLIANT ONLY)

$

$

Not available

2

Bear Cat 12458

SHEAVE, 3BQ11.0 SK

$270.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14343-00

DECAL, 112 DB (CE COMPLIANT ONLY)

$12.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

5

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

6

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

7

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

8

15150-00

BOLT, 5/16 X 4 SERRATED FLANGE NC

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

11

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

12

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

13

Bear Cat 15481

STUD, 1/2"-13 X 3" LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

17

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

19

Bear Cat 16553

BEARING, 1-3/4 4 BOLT FLANGE

$

$

Not available

20

Bear Cat 17248

BUSHING, SK 1-3/4"

$

$

Not available

21

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0

23

Bear Cat 30450-00

WIRE ASSEMBLY, 37" FM SPADE AND RING

$38.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71118-00

ASSEMBLY, 9" CHIPPER ROTOR

$4567.99

$

Usually ships in 3-7 days

0

25

Bear Cat 71187-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

26

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

27

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0

28

Bear Cat 73354-12

WELDMENT, SPACER

$

$

Not available

29

Bear Cat 73708-12

WELDMENT, GUARD SUPPORT

$

$

Not available

30

Bear Cat 75951-12

BRACKET, SENSOR SHORT MOUNT

$

$

Not available

31

Bear Cat 75960-12

BRACKET, ROTOR LOCK

$

$

Not available

32

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0
