CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) Hitch Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

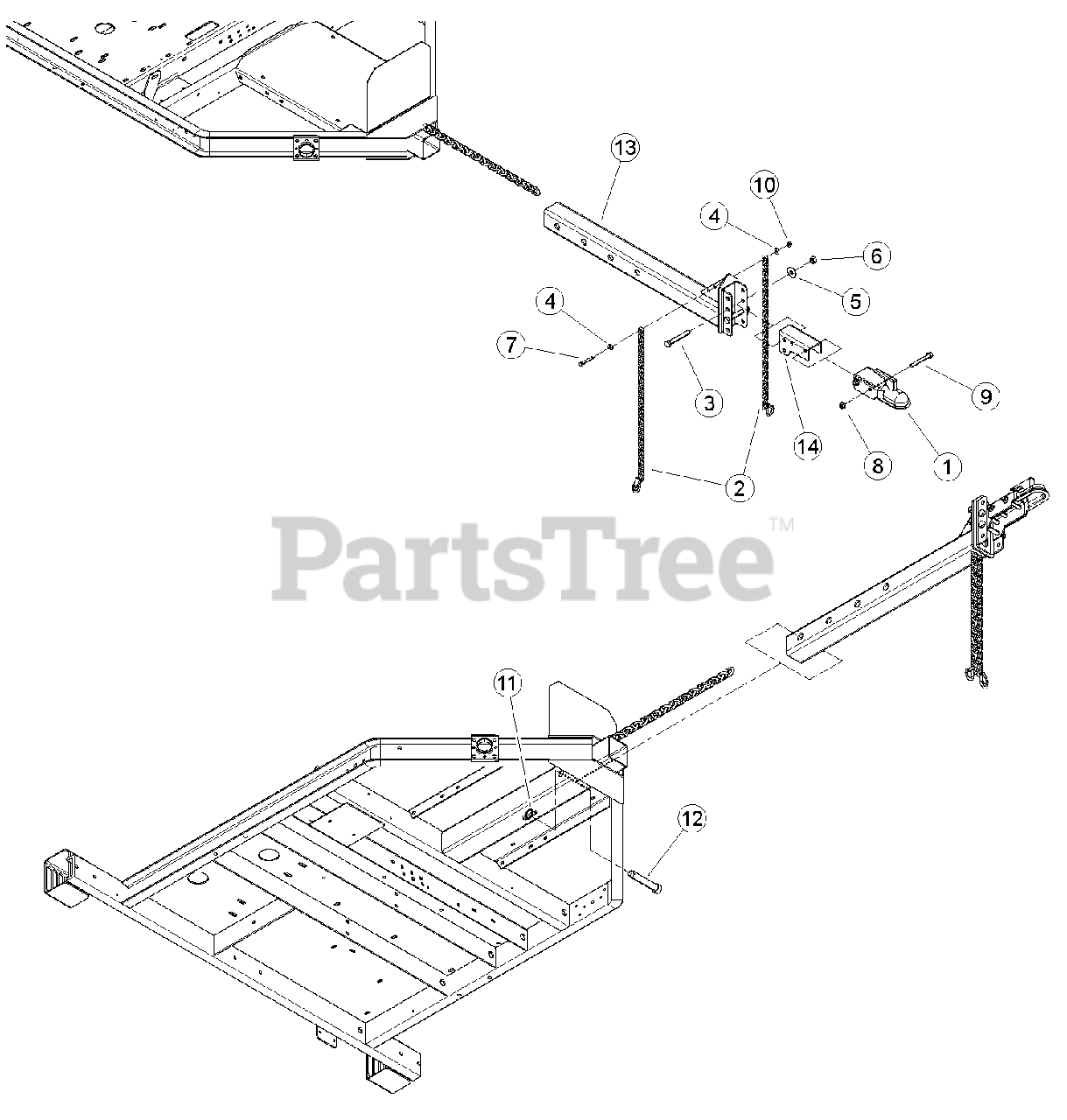

Hitch Parts Diagram

  • Title
1

Bear Cat 14257-00

COUPLER, 2 IN

$105.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

3

15021

BOLT, 5/8 X 4-1/2 HEX HD G5 ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

5

Bear Cat 15035

WASHER, 5/8" FLAT ZP

$

$

Not available

6

15050

NUT, 5/8" CENTERLOCK ZP GR5

$

$

Not available

7

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15193-00

BOLT, 1/2-13 X 4 HWH GR5 CZP

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

12

Bear Cat 16777

TOP LINK PIN, CAT 2

$32.99

$

Usually ships in 3-7 days

0

13

Bear Cat 75492-12

WELDMENT, HITCH POLE W/ PLATE

$

$

Not available

14

Bear Cat 77080-12

MOUNT, COUPLER

$

$

Not available

Bear Cat 16865

STRAP, 15-1/16 IN BLACK TIE

Note: (NOT SHOWN)

$1.99

$

Usually ships in 3-7 days

0

77502-00

KIT, SPANISH/PORTUGESE TRAILER/PINTLE DECAL

Note: (NOT SHOWN)

$

$

Not available
