CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) Feed Roller Housing Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

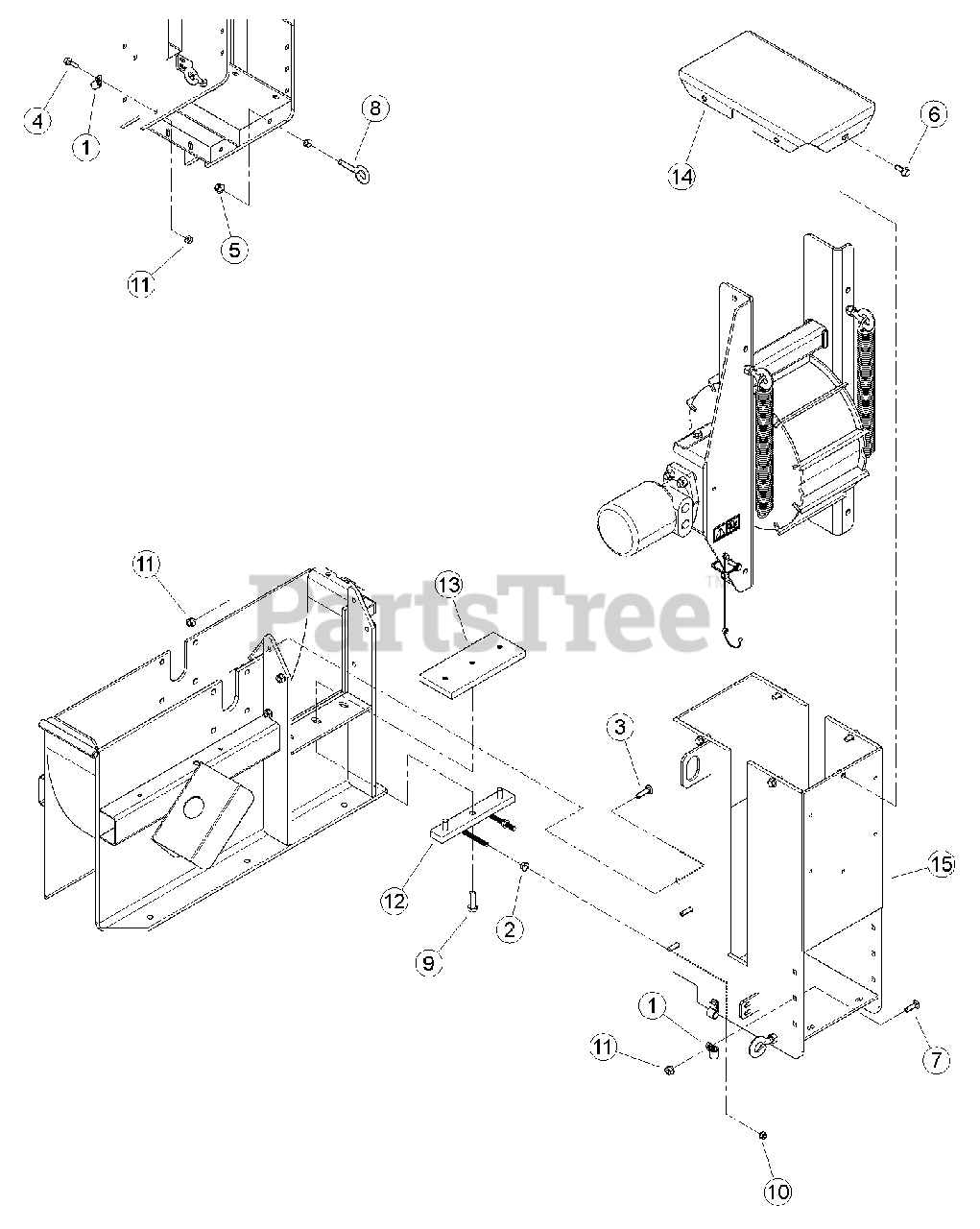

Feed Roller Housing Parts Diagram

  • Title

1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

4

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

8

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

9

15855-00

BOLT, 1/2 X 1-1/2 GR8 NC ZP HEX HD

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 71050-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

13

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

14

Bear Cat 77151-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

15

Bear Cat 77152-35

WELDMENT, ROLLER SUPPORT

$

$

Not available
