CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) Engine Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

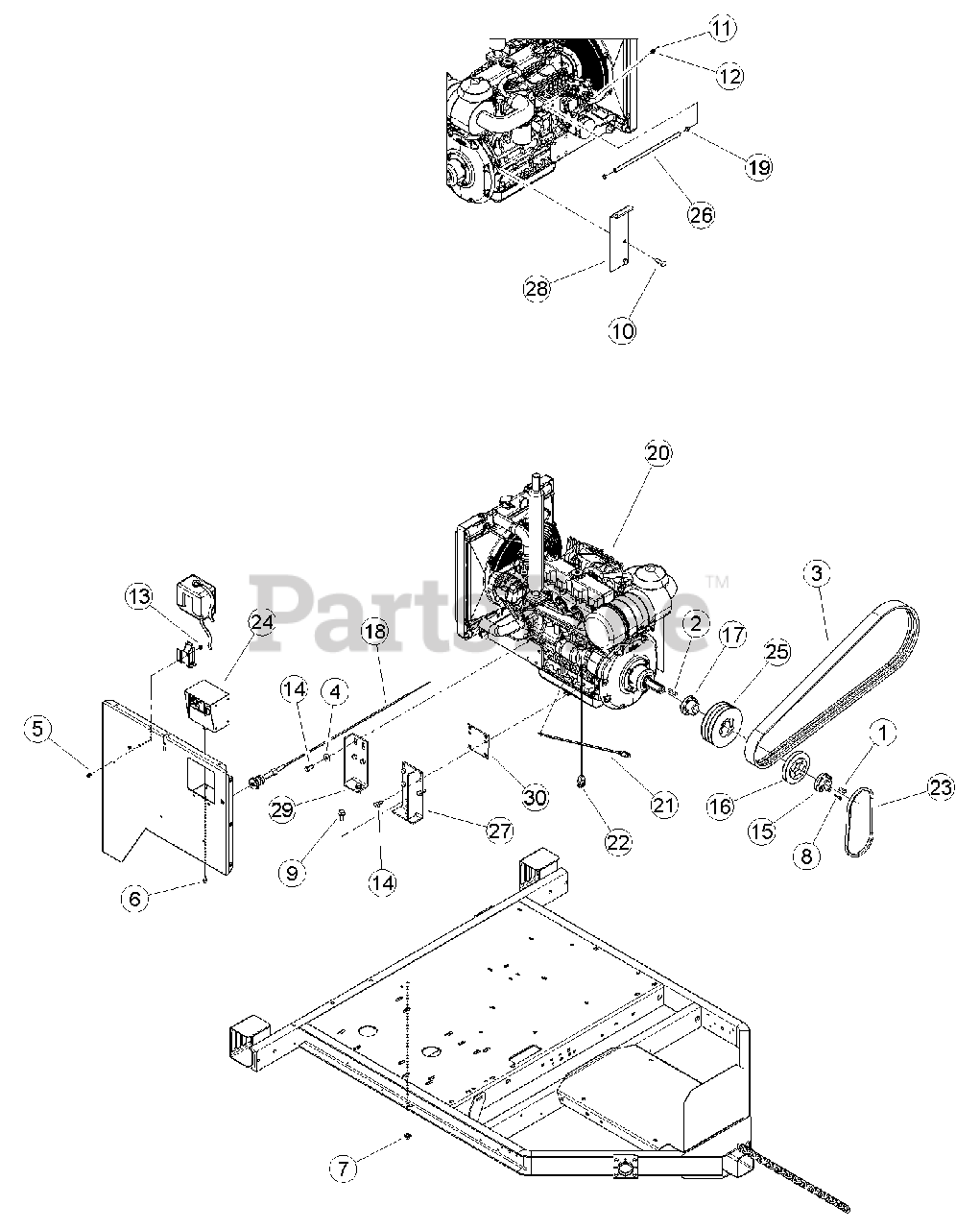

Engine Parts Diagram

  • Title
1

0122-0231-00

KEY, 3/8 SQ X 1-1/4

$

$

Not available

2

0122-0236-00

KEY, 3/8 SQ 1-3/4

$

$

Not available

3

Bear Cat 12273

BELT, 3B90 BANDED

$199.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

5

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

6

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

15214

BOLT, 1/4-20 X 1-1/4 GR5 HHCS MAGNI 565 SILVER

$

$

Not available

9

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

10

Bear Cat 15578

BOLT, M14-1.5 X 20 HEX HD GR 8.8

$9.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

12

Bear Cat 15769-00

PIN, 1/4" BOWDEN

$14.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15961-00

BOLT, M12 X 1.25 X 25 GR 10.9 HEX HEAD ZP

$5.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16327

BUSHING, SDS 1-7/16"

$67.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16482

SHEAVE, 1B5.2 SDS

$86.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16552

BUSHING, SD 1-7/16"

$57.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16769

CABLE, DIESEL THROTTLE

$168.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

20

ASSEMBLY, 50 HP KUBOTA ENGINE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST KUBOTA INDUSTRIAL ENGINE DEALER)

$

$

Not available

21

Bear Cat 31256-00

CABLE, 72" POSITIVE BATTERY

$111.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31374-00

CABLE, 72" NEGATIVE BATTERY

$100.99

$

Usually ships in 3-7 days

0

23

Bear Cat 32930-00

BELT, BX30

$42.99

$

Usually ships in 3-7 days

0

24

Bear Cat 33192-00

CONTROLLER, DSE - KUBOTA
(Superseded to 33983-00)

$

$

Not available

25

Bear Cat 36268-00

SHEAVE, 3B6.8 SD

$168.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71696

HOSE, 15 INCH FUEL LINE

$39.99

$

Usually ships in 3-7 days

0

27

Bear Cat 72639-12

WELDMENT, ENGINE MOUNT

$

$

Not available

28

Bear Cat 72642-12

ANGLE, SPRING ANCHOR

$

$

Not available

29

Bear Cat 72686-12

WELDMENT, FRONT ENGINE MOUNT

$

$

Not available

30

Bear Cat 72744-12

PLATE, MOUNT SPACER

$

$

Not available
