CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) Discharge Tube Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

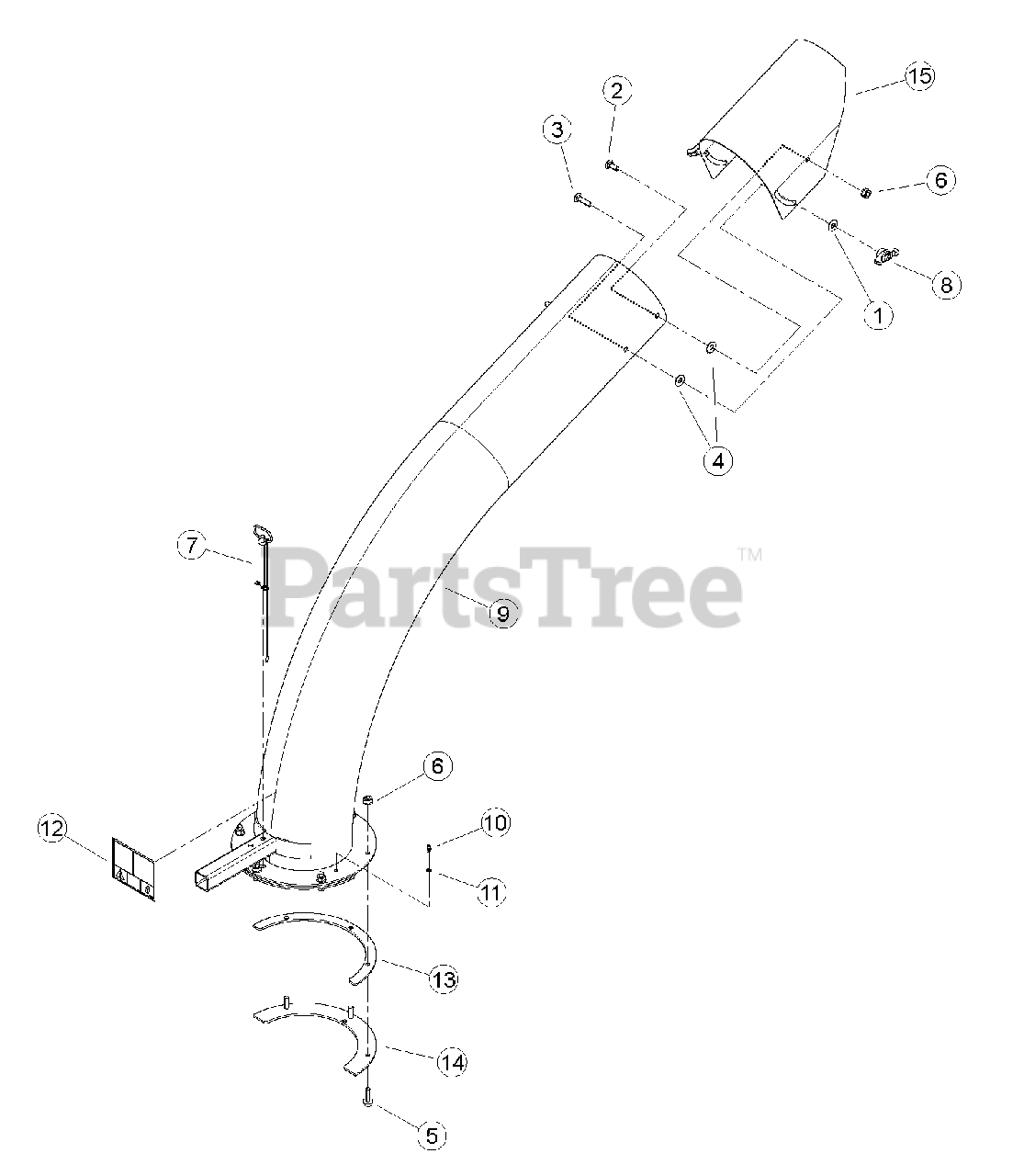

Discharge Tube Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

2

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

5

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 30131-00

PIN, 3/8 X 4.25" DISCHARGE

$

$

Not available

8

Bear Cat 32110-00

KNOB, 3/8-16 UNC FEMALE TEE

$

$

Not available

9

Bear Cat 70168-00

ASSEMBLY, 8 INCH DISCHARGE CHUTE

Note: (INCLUDES ITEMS 10-12)

$792.99

$

Usually ships in 3-7 days

0

10

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

11

Bear Cat 15584

WASHER, FLAT .254 X .400 X .048

$

$

Not available

12

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0

13

Bear Cat 71247

RING, DISCHARGE SPACER

$

$

Not available

14

Bear Cat 71248

RING, DISCHARGE CLAMP

$

$

Not available

15

Bear Cat 71704-12

CAP, 8 INCH DISCHARGE CHUTE

$

$

Not available
