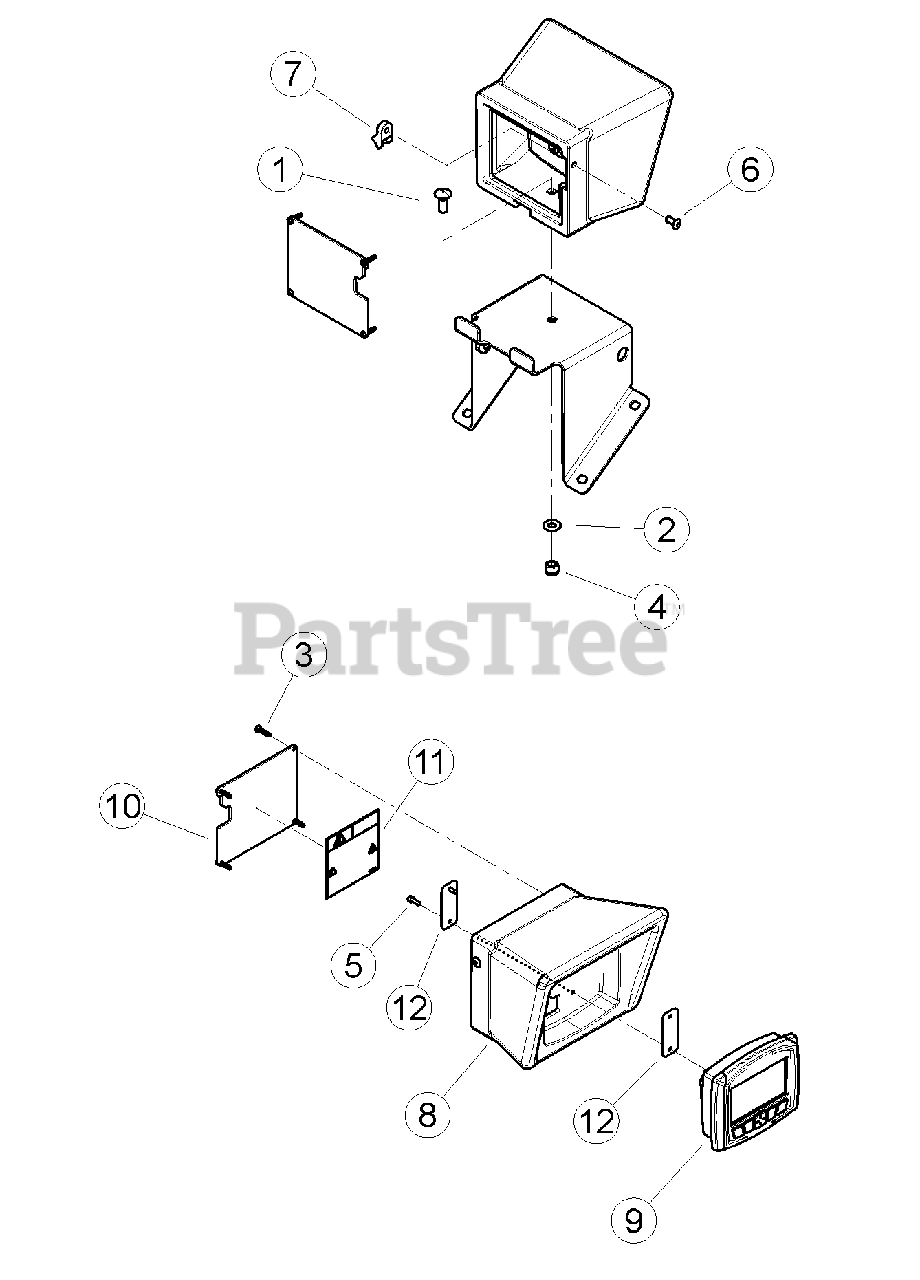

CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0411GW005196 & Above) DDC Enclosure (VIN: 5VJAA0411GW005196 - 5VJAA0414HW005338) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

DDC Enclosure (VIN: 5VJAA0411GW005196 - 5VJAA0414HW005338) Parts Diagram

  • Title

1

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

2

15260

WASHER, 3/8" SAE FLAT ZP

$

$

Not available

3

Bear Cat 15287-00

SCREW, 10-16 3/4 LONG FOR PLASTIC

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

5

15817-00

SCREW, #8-32 X 1/2 SKT HD CAP

$

$

Not available

6

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

7

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

8

Bear Cat 33270-00

ENCLOSURE, CONTROLLER

$327.99

$

Usually ships in 3-7 days

0

9

Bear Cat 33280-00

CONTROLLER, CL-709-100 MASTER

$3000.99

$

Usually ships in 3-7 days

0

10

Bear Cat 72313-00

ASSEMBLY, ENCLOSURE COVER WITH DECAL

Note: (INCLUDES ITEM 11)

$91.99

$

Usually ships in 3-7 days

0

11

33298-00

DECAL, DDC MOUNTING INFO

$

$

Not available

12

72972-12

PLATE, DDC WASHER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
