CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0018FW004664 - 5VJAA0414GW005189) Engine Housing Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

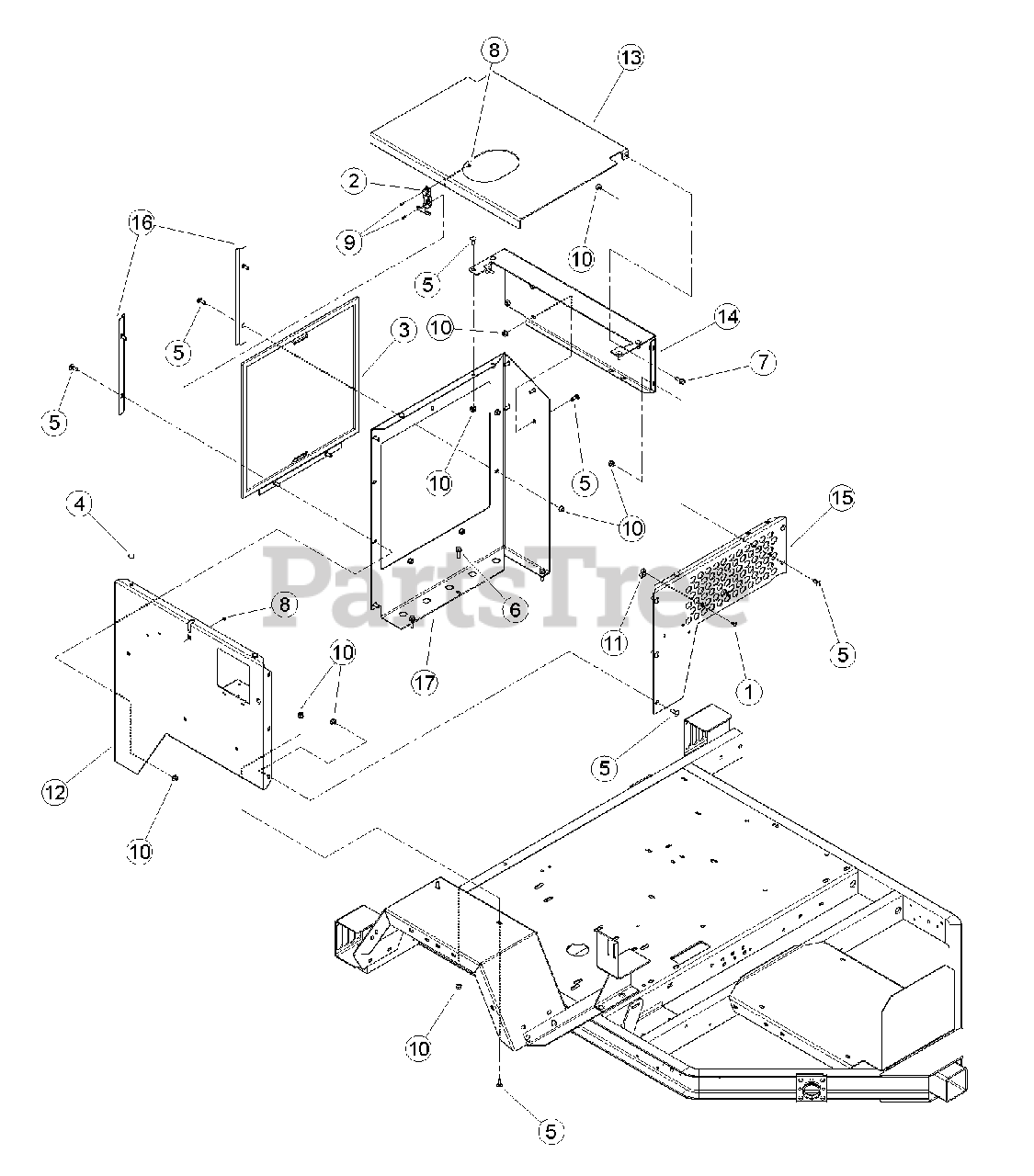

Engine Housing Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

0125-0060-00

LATCH, FLEXIBLE DRAW

$

$

Not available

3

Bear Cat 12278

SCREEN, RADIATOR INLET

$129.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

5

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

6

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

9

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

12

Bear Cat 71217-12

WELDMENT, SIDE COVER PANEL

$382.99

$

Usually ships in 3-7 days

0

13

71218-12

HOOD, ENGINE

$

$

Not available

14

Bear Cat 71543-12

SIDE, ENGINE COVER

$238.99

$

Usually ships in 3-7 days

0

15

71567-12

COVER, REAR ENGINE

$

$

Not available

16

Bear Cat 72678-12

BRACKET, SCREEN HOLDER

$

$

Not available

17

Bear Cat 73597-12

PANEL, RADIATOR COVER

$372.99

$

Usually ships in 3-7 days

0
