CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0018FW004664 - 5VJAA0414GW005189) Chute (A) CE COMPLIANT (VIN: 5VJAA0016FW004744 - 5VJAA0414GW005189) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

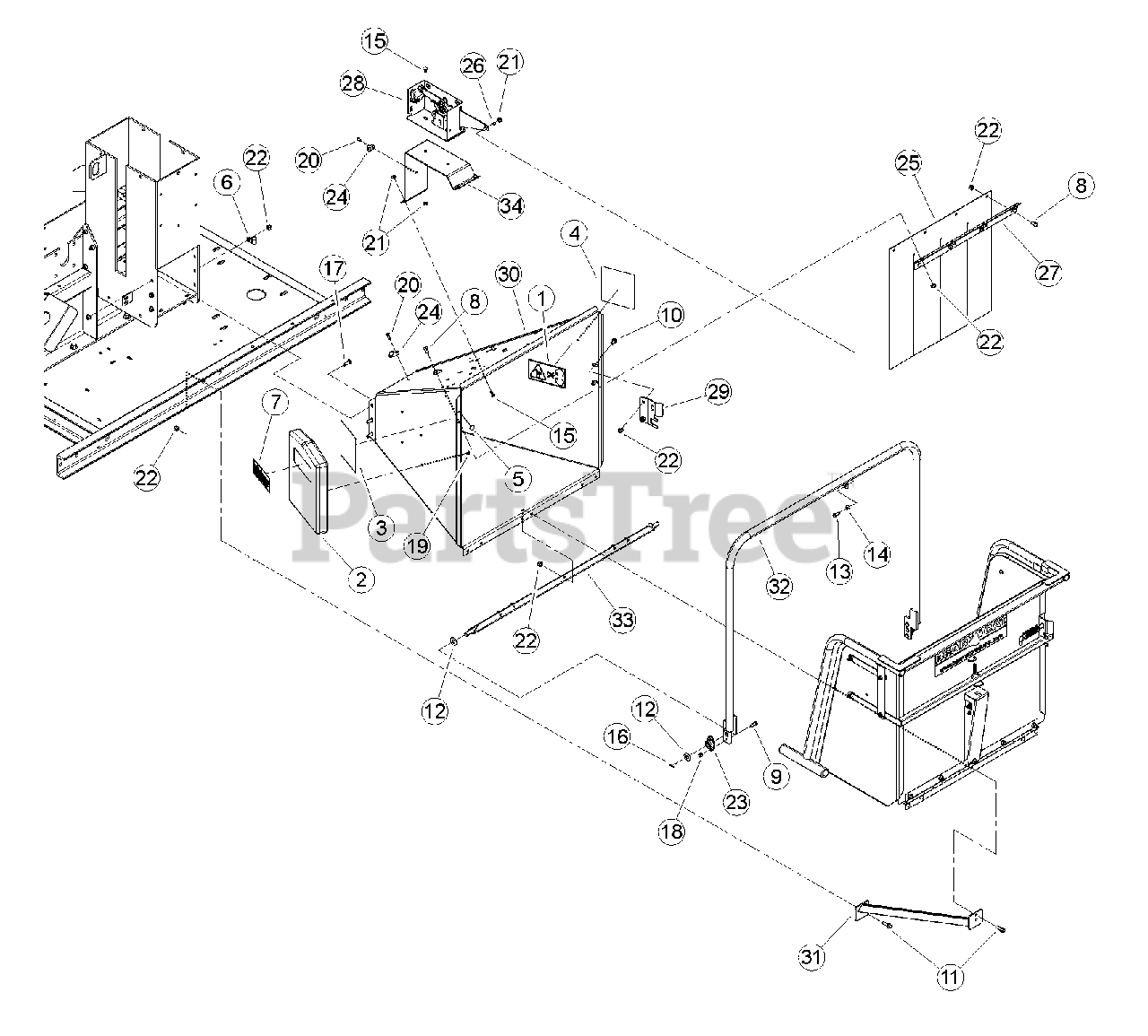

Chute (A) CE COMPLIANT (VIN: 5VJAA0016FW004744 - 5VJAA0414GW005189) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

14048-00

CLAMP, 9/16 COATED

$

$

Not available

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

9

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

11

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

12

15129

WASHER, 5/8" SAE FLAT ZP

$

$

Not available

13

Bear Cat 15219

BOLT, 5/16 X 1" GR5 HHCS NC ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

15

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

16

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

17

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

18

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

21

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

22

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

23

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT 5/8"

$34.99

$

Usually ships in 3-7 days

0

24

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

25

Bear Cat 30325-00

FLAP, 9 INCH CHUTE

$82.99

$

Usually ships in 3-7 days

0

26

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

27

70754-12

SUPPORT, 9 INCH CHIPPER FLAP

$

$

Not available

28

70845-00

ASSEMBLY, "CE" SWITCH BOX

$

$

Not available

29

71058-35

PLATE, TRAY STOP

$

$

Not available

30

71067-35

WELDMENT, BIG CHIPPER CHUTE

$

$

Not available

31

Bear Cat 72696-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

32

Bear Cat 74169-12

WELDMENT, CONTROL ARM

$321.99

$

Usually ships in 3-7 days

0

33

Bear Cat 74171-12

WELDMENT, CONTROL PIVOT

$178.99

$

Usually ships in 3-7 days

0

34

Bear Cat 75243-12

MOUNT, SWITCH BOX

$84.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 30408-00

HARNESS, 9" DIESEL PLUS 1 CONTROLLER

Note: (NOT SHOWN)

$981.99

$

Usually ships in 3-7 days

0
