CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Original CE Safety Switch Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

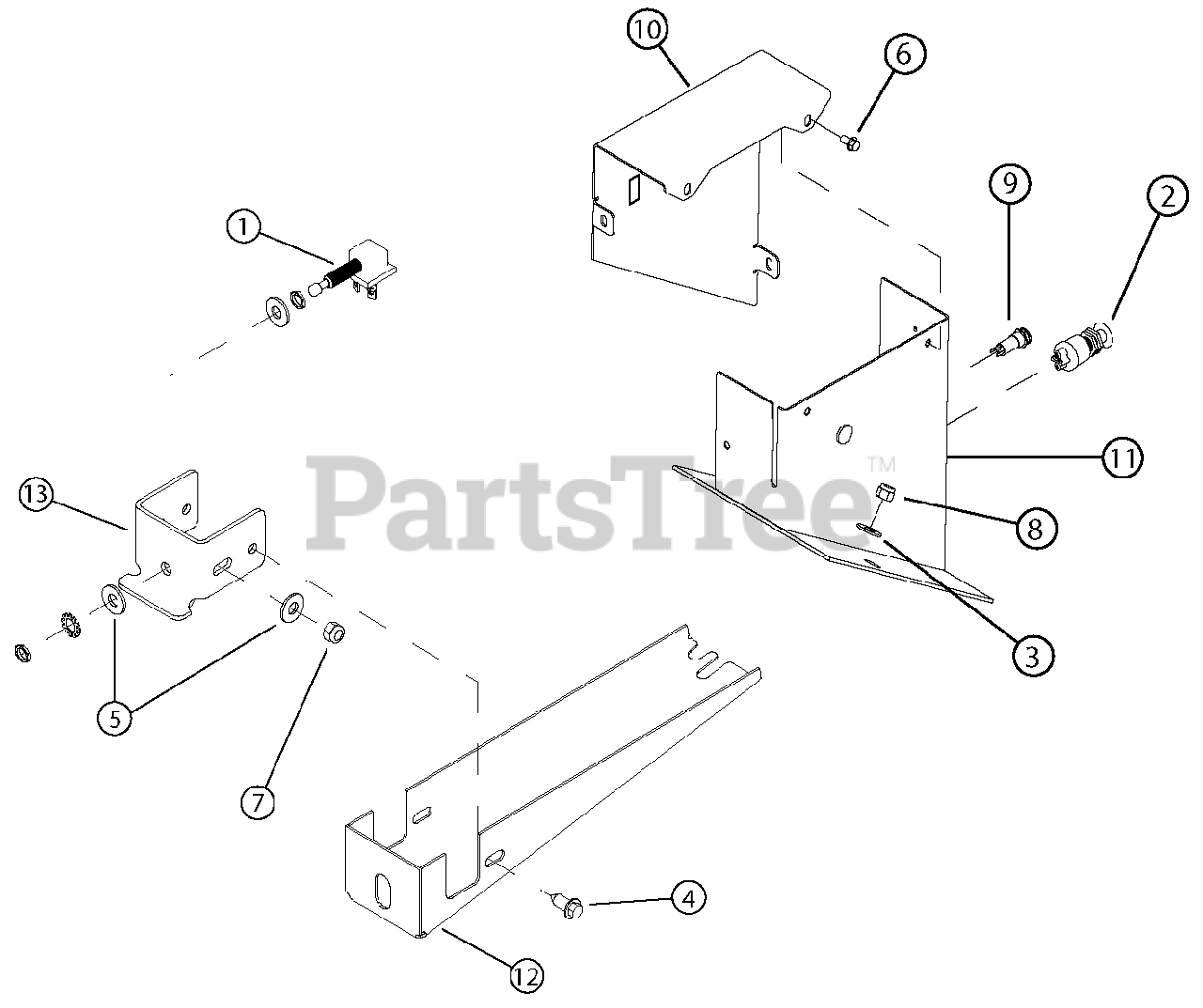

Original CE Safety Switch Parts Diagram

  • Title
1

SWITCH, N/C MOMENTATY PLUNGER

$

$

Not available

2

SWITCH, N/O MOMENTARY PUSHBUTTON

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

4

15176

SCREW, 11/32 X 7/8 HWH AB THREAD

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

6

15344

BOLT, SERR. FLANGE 1/4 X 1/2

$

$

Not available

7

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

8

Bear Cat 15388

NUT, 3/8 NYLOCK

$

$

Not available

9

Bear Cat 36356-00

LED, TRI-COLOR 12V 3-TERM BASE

$78.99

$

Usually ships in 3-7 days

0

10

Bear Cat 72923-12

PLATE, CONTROL BOX

$

$

Not available

11

Bear Cat 73588-12

WELDMENT, SWITCH MOUNT

$

$

Not available

12

Bear Cat 74167-12

SHIELD, KNEEBAR SWITCH

$111.99

$

Usually ships in 3-7 days

0

13

Bear Cat 74203-12

BRACKET, SWITCH

$52.99

$

Usually ships in 3-7 days

0
