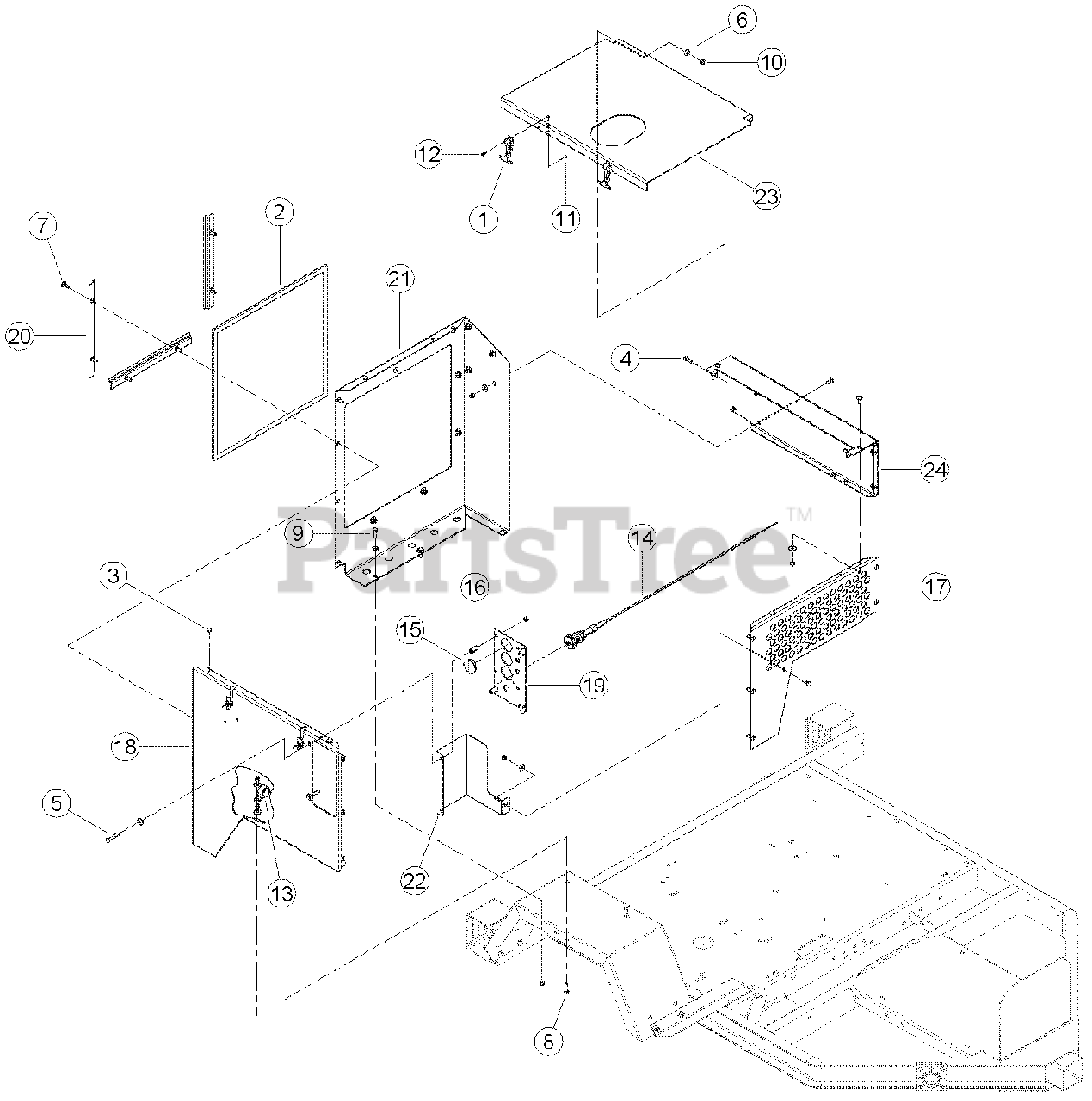

CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Hood (CH922DH) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

Hood (CH922DH) Parts Diagram

  • Title

1

0125-0060-00

LATCH, FLEXIBLE DRAW (2-PIECE)

$

$

Not available

2

Bear Cat 12278

SCREEN, RADIATOR INLET

$129.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15008

BOLT, 3/8 X 2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

8

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

9

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

11

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

12

15423

SCREW, MCH 10-24 X 1/2 PAN HD PH ZP

$

$

Not available

13

Bear Cat 16383

CLAMP, 1-9/16 COATED METAL

$

$

Not available

14

Bear Cat 16769

CABLE, DIESEL THROTTLE

$168.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16906

PLUG, 2 IN. DOME

$1.99

$

Usually ships in 3-7 days

0

16

Bear Cat 70046

IDLER SPACER

$

$

Not available

17

Bear Cat 72643-12

COVER, REAR ENGINE

$264.99

$

Usually ships in 3-7 days

0

18

Bear Cat 72646-12

PANEL, SIDE COVER

$280.99

$

Usually ships in 3-7 days

0

19

Bear Cat 72651-12

PANEL, ENGINE CONTROL

$69.99

$

Usually ships in 3-7 days

0

20

Bear Cat 72678-12

BRACKET, SCREEN HOLDER

$

$

Not available

21

Bear Cat 73597-12

PANEL, RADIATOR COVER

$372.99

$

Usually ships in 3-7 days

0

22

Bear Cat 73601-12

SHIELD, 50 HP HEAT

$71.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73660-12

HOOD, ENGINE

$261.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73661-12

SIDE, ENGINE COVER

$236.99

$

Usually ships in 3-7 days

0
