CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Frame (CE COMPLIANT) (Part 1) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

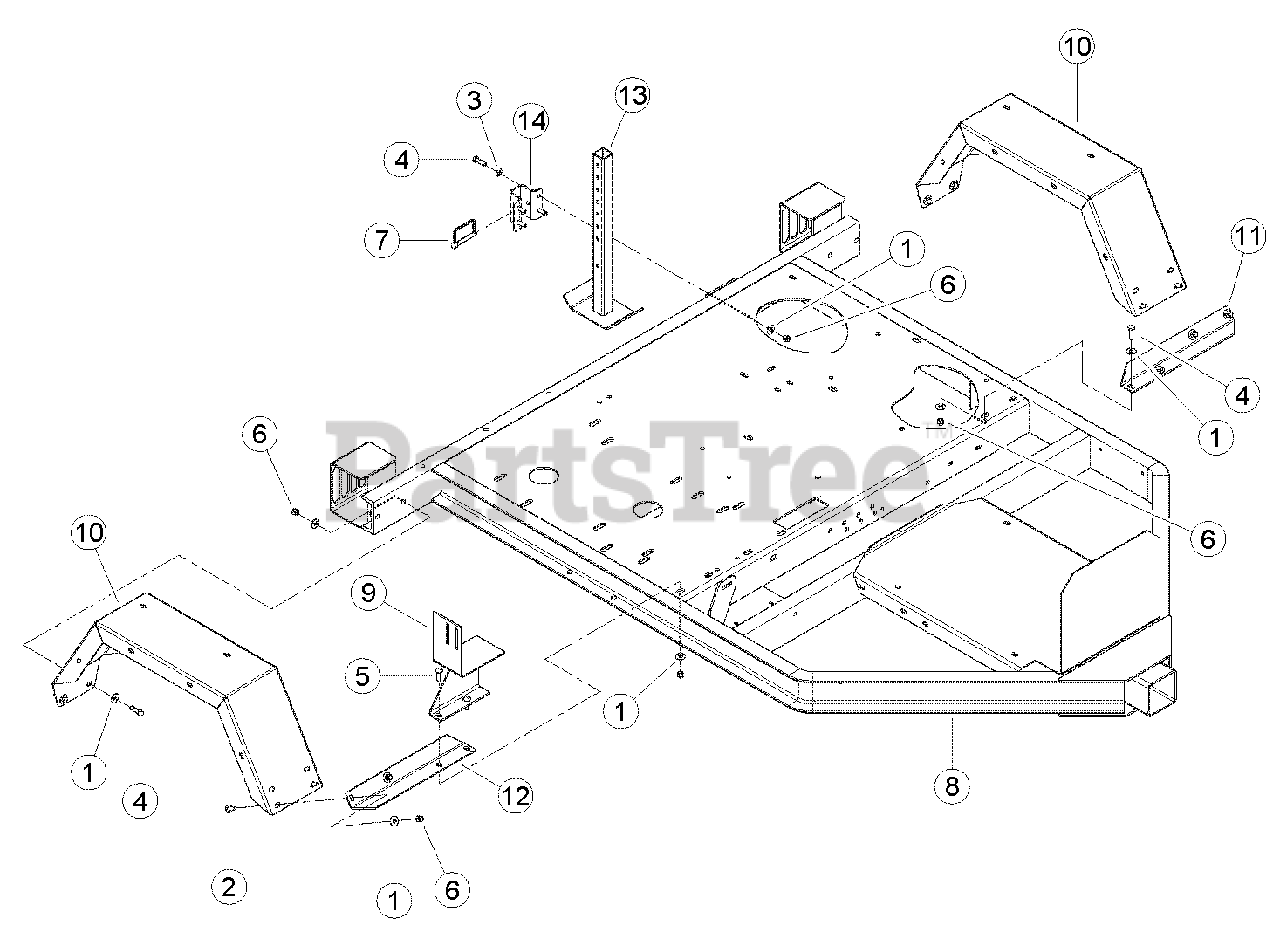

Frame (CE COMPLIANT) (Part 1) Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

2

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

3

15260

WASHER, 3/8 SAE FLAT ZP

$

$

Not available

4

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

5

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

6

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

7

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

8

Bear Cat 71965-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

9

Bear Cat 72668-12

WELDMENT, BELT GUIDE

$

$

Not available

10

Bear Cat 73122-12

FENDER, HEAVY DUTY

$230.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73194-12

ANGLE, LH FENDER SUPPORT

$

$

Not available

12

Bear Cat 73195-12

ANGLE, RH FENDER SUPPORT

$

$

Not available

13

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

14

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available
