CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Rotor Assembly Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

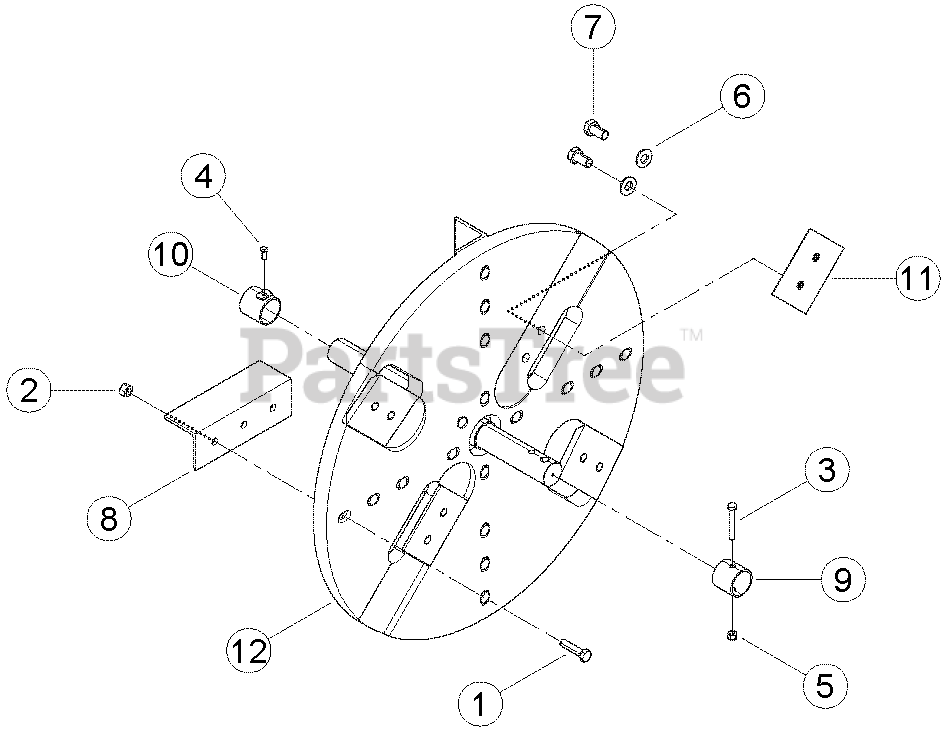

Rotor Assembly Parts Diagram

  • Title

1

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

3

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HHCS GR5 ZP

$

$

Not available

4

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

5

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

7

Bear Cat 15833-00

BOLT, M16 X 2 X 30 HEX HD W/PATCH

$11.99

$

Usually ships in 3-7 days

0

8

Bear Cat 71123

PADDLE, BIG CHIPPER

$53.99

$

Usually ships in 3-7 days

0

9

Bear Cat 71280

COLLAR, CHIPPER LOCK

$

$

Not available

10

Bear Cat 73354-12

WELDMENT, SPACER

$

$

Not available

11

Bear Cat 76112-00

BLADE, BIG CHIPPER

$

$

Not available

12

Bear Cat 76287-00

ASSEMBLY, 9 IN. CHIPPER DISK

$3871.99

$

Usually ships in 3-7 days

0
