CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Feed Roller Assembly Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

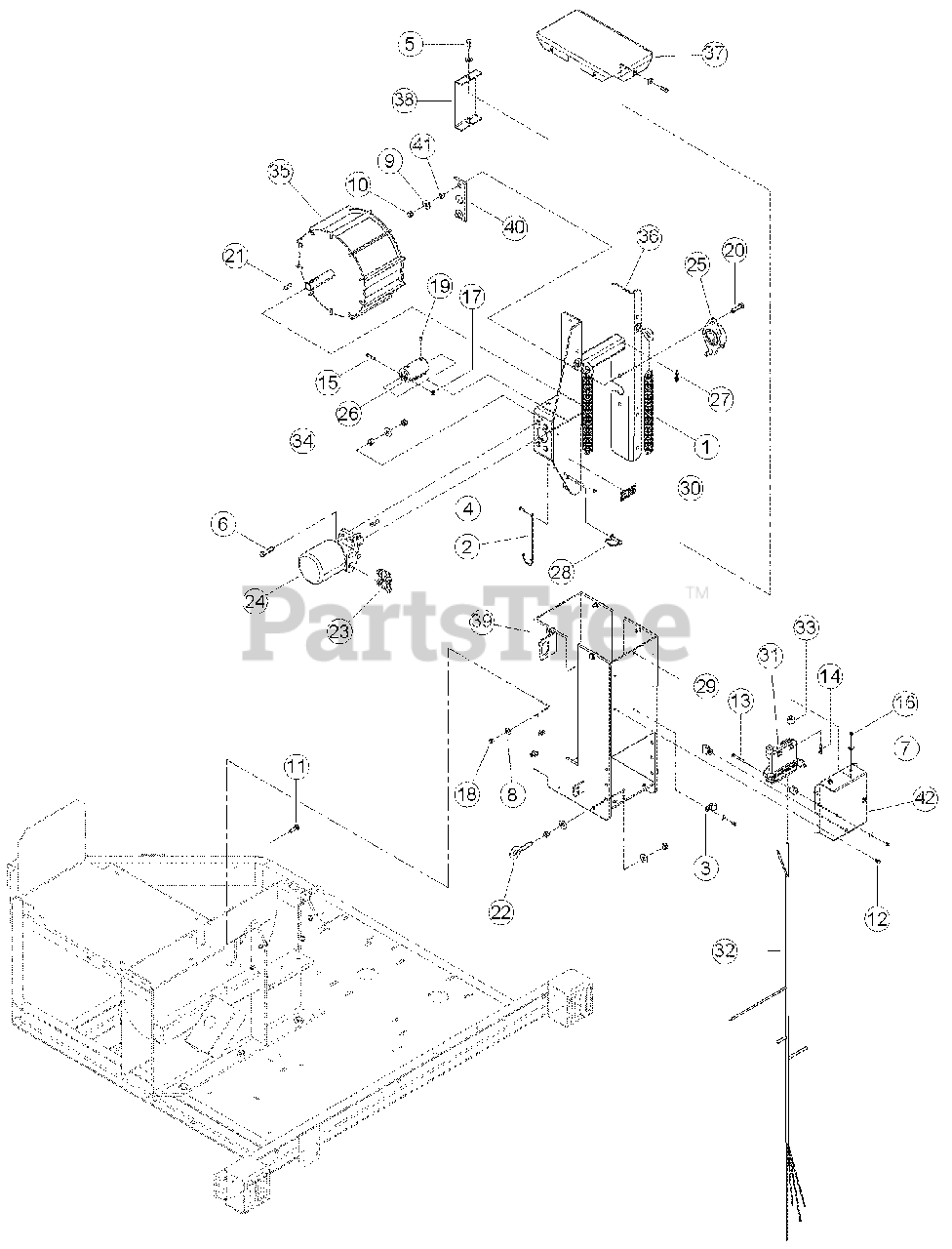

Feed Roller Assembly Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

11

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

12

Bear Cat 15179

BOLT, 1/4 X 1/2 HCS GR5 ZP

$

$

Not available

13

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HCS GR5 ZP

$

$

Not available

14

15214

BOLT, 1/4 X 1-1/4 HCS GR5 ZP

$

$

Not available

15

15282

BOLT 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

16

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

20

15478

BOLT, 1/2 X 1-3/4 HCPS GR5 NC ZP

$

$

Not available

21

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

22

Bear Cat 15502

I-BOLT, 1/2 X 2 ZP

$31.99

$

Usually ships in 3-7 days

0

23

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

24

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

25

Bear Cat 16682

BEARING, 1-1/4 DIA. 2 BOLT FLANGE

$

$

Not available

26

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

27

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

28

Bear Cat 17879

PIN, SHAP 3/8 X 1-1/2 USEABLE LENGTH

$

$

Not available

29

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

30

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

31

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

32

Bear Cat 36260-00

HARNESS, 9 IN. TRAILER - PLUS 1
(Superseded to 32107-00)

$879.99

$

Usually ships in 3-7 days

0

33

Bear Cat 36261-00

BUMPER, 1 OD. W/1-1/4 STUD

$33.99

$

Usually ships in 3-7 days

0

34

Bear Cat 70534

SPACER, .75 X .62

$10.99

$

Usually ships in 3-7 days

0

35

WELDMENT, TOP GRAB ROLLER (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77135-00)

$

$

Not available

36

Bear Cat 71304

WELDMENT, ROLLER SLIDE

$

$

Not available

37

Bear Cat 71334-35

WELDMENT, TOP ROLLER COVER

$131.99

$

Usually ships in 3-7 days

0

38

Bear Cat 71335

SHIELD, COUPLER

$45.99

$

Usually ships in 3-7 days

0

39

Bear Cat 73247-35

WELDMENT, ROLLER SUPPORT

$

$

Not available

40

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

41

Bear Cat 73249

SPACER, .75 OD. X .5 ID. X .37

$10.99

$

Usually ships in 3-7 days

0

42

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0
