CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Discharge Chute Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

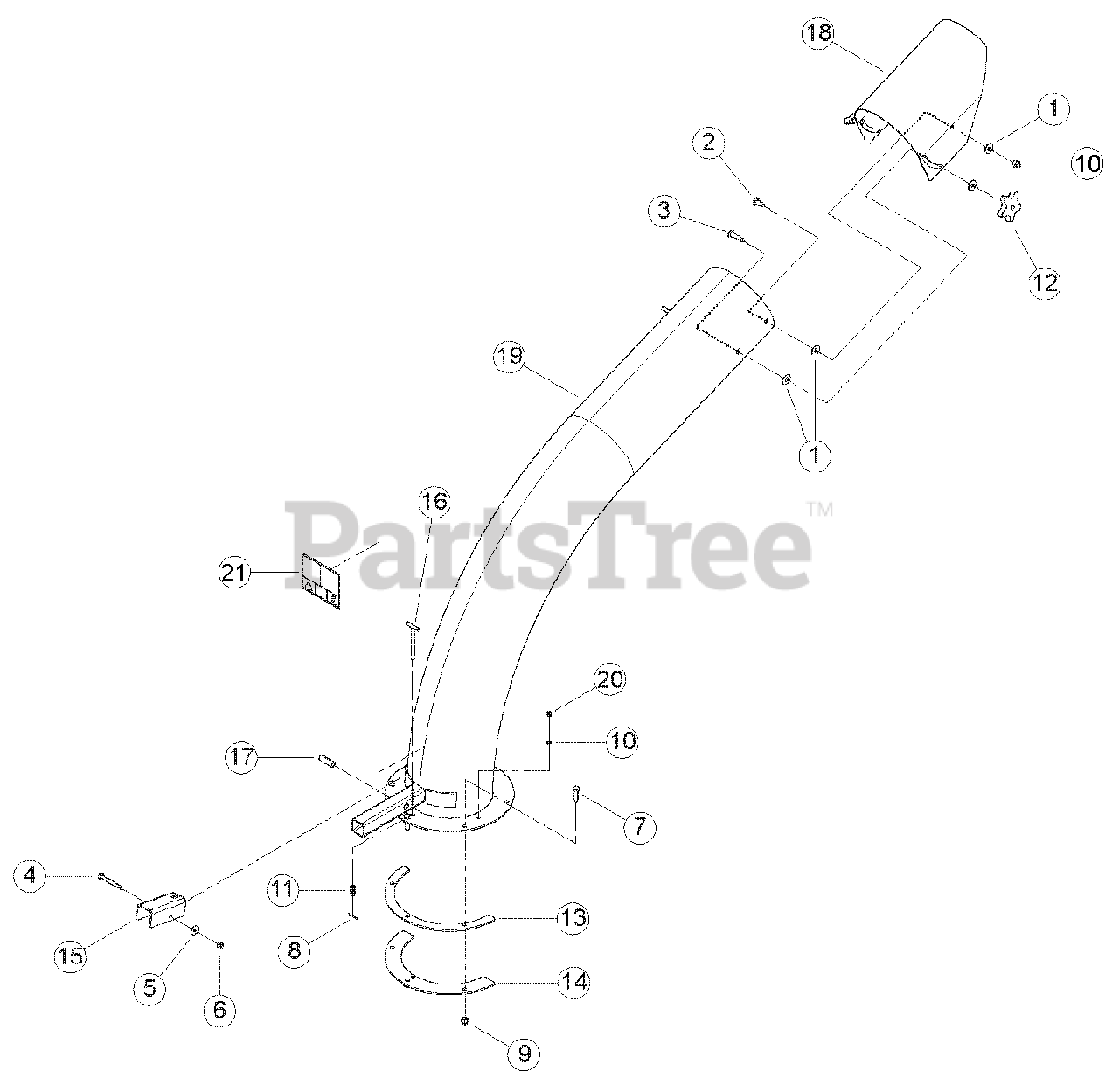

Discharge Chute Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

2

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

4

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HX CAP GR5 ZP

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

6

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

7

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15375

PIN, 1/8 X 1 ZP COTTER

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15584

WASHER, .254 X .400 X .048 FLAT

$

$

Not available

11

Bear Cat 16556

SPRING, LOCK COMPRESSION

$7.99

$

Usually ships in 3-7 days

0

12

KNOB, 3/8-16 UNC FEMALE TEE (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32110-00)

$

$

Not available

13

Bear Cat 71247

RING, DISCHARGE SPACER

$

$

Not available

14

Bear Cat 71248

RING, DISCHARGE CLAMP

$

$

Not available

15

Bear Cat 71252

LEVER, DISCHARGE LOCK

$43.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71253

WELDMENT, DISCHARGE LOCK PIN

$45.99

$

Usually ships in 3-7 days

0

17

Bear Cat 71256

TUBE, DISCHARGE LOCK PIVOT

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71704-12

CAP, 8 IN. DISCHARGE CHUTE

$

$

Not available

19

ASSEMBLY, 8 INCH DISCHARGE, SERVICE PART (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77130-00)

Note: (INCLUDES ITEM 21)

$

$

Not available

20

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

21

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0
