CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0016AW002226 - 5VJAA0013AW002734) Chute With Safety Bar Assembly (CE COMPLIANT) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

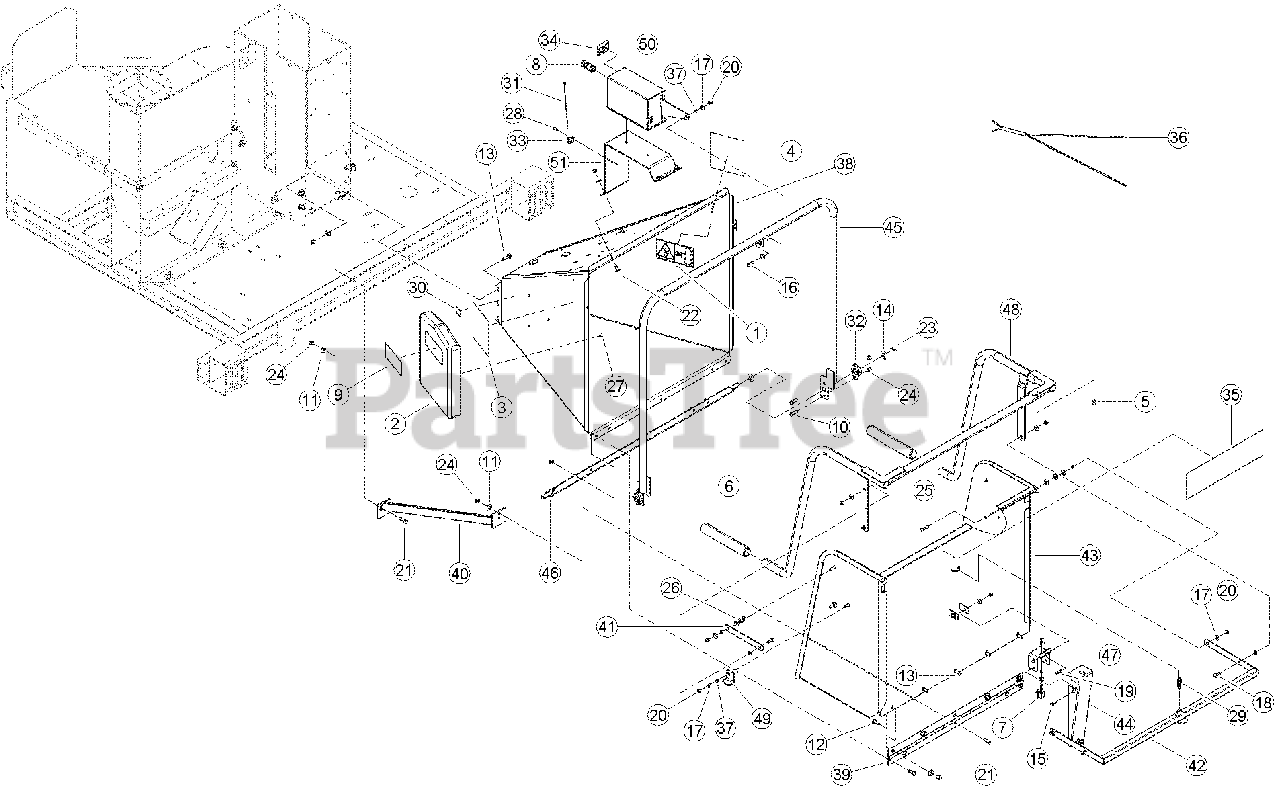

Chute With Safety Bar Assembly (CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTRUCTION MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

7

SWITCH, N/C MOMENTARY PLUNGER REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77536-00)

$

$

Not available

8

SWITCH, N/O MOMENTARY PUSHBUTTON (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77536-00)

$

$

Not available

9

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

12

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

13

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

14

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

15

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

16

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

17

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

18

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

19

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

20

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

21

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

22

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

23

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

24

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

25

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

26

Bear Cat 15409

WASHER, 5/16 ID. X 7/8 OD. NYLON FLAT

$

$

Not available

27

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

28

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

29

Bear Cat 16698

SPRING 1/2 X 2.00 LG,ZP

$21.99

$

Usually ships in 3-7 days

0

30

Bear Cat 16753

DECAL, CE APPROVAL

$3.49

$

Usually ships in 3-7 days

0

31

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

32

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT, 5/8

$34.99

$

Usually ships in 3-7 days

0

33

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

34

Bear Cat 18555-00

DECAL, RESET/OVERRIDE

$37.99

$

Usually ships in 3-7 days

0

35

Bear Cat 36355-00

HARNESS, SAFETY BAR

$85.99

$

Usually ships in 3-7 days

0

36

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

37

Bear Cat 71191-35

WELDMENT, BIG CHIPPER CHUTE
(Superseded to 77126-00)

$1036.99

$

Usually ships in 3-7 days

0

38

Bear Cat 71492

HINGE, EXTENSION TRAY

$

$

Not available

39

Bear Cat 72696-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

40

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

41

Bear Cat 74161-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

42

WELDMENT, EXTENSION TRAY (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77128-00)

$

$

Not available

43

Bear Cat 74167-12

SHIELD, KNEEBAR SWITCH

$111.99

$

Usually ships in 3-7 days

0

44

Bear Cat 74169-12

WELDMENT, CONTROL ARM

$321.99

$

Usually ships in 3-7 days

0

45

Bear Cat 74171-12

WELDMENT, CONTROL PIVOT

$178.99

$

Usually ships in 3-7 days

0

46

Bear Cat 74203-12

BRACKET, SWITCH

$52.99

$

Usually ships in 3-7 days

0

47

Bear Cat 74215-35

WELDMENT, KNEEBAR

$439.99

$

Usually ships in 3-7 days

0

48

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

49

Bear Cat 75186-00

ASSEMBLY, SWITCH BOX

$469.99

$

Usually ships in 3-7 days

0

50

Bear Cat 75243-12

MOUNT, SWITCH BOX

$84.99

$

Usually ships in 3-7 days

0
