CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0010FW004657) Frame (Part 2) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

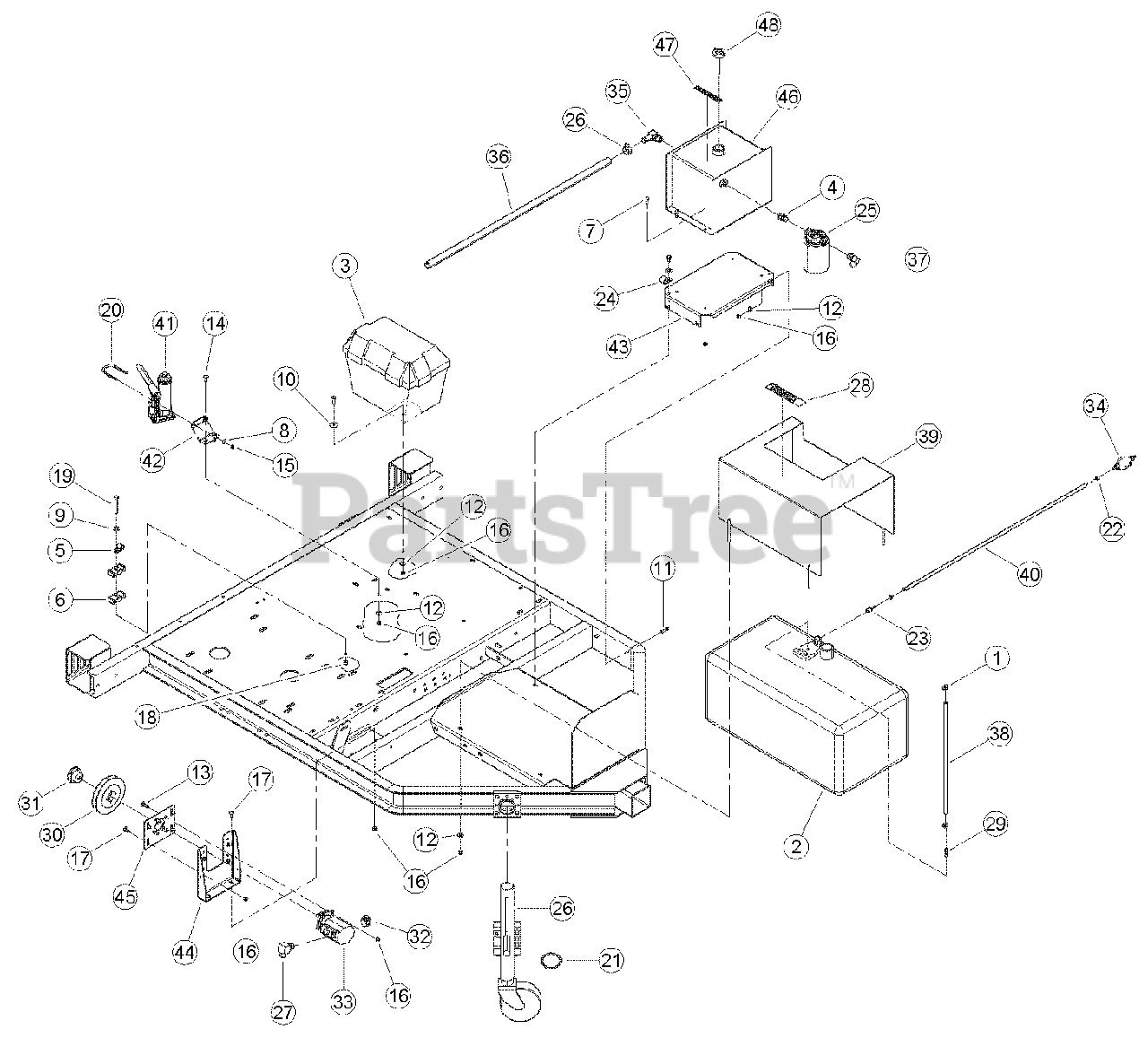

Frame (Part 2) Parts Diagram

  • Title

1

0123-0429-00

CLAMP, HOSE 5/16 X 5/8 DIA. MAX.

$

$

Not available

2

Bear Cat 12053

TANK, 19 GAL FUEL

$812.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12271

BOX, PLASTIC BATTERY

$83.99

$

Usually ships in 3-7 days

0

4

12339

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

5

14048-00

CLAMP, 9/16 COATED

$

$

Not available

6

14157-00

CLAMP, PLASTIC OSE

$

$

Not available

7

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

8

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15349

BOLT, 5/16 X 7/98CRG GR5 NC ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15437

BOLT, 3/8 X 2-3/4 HHCS GR5 NC ZP

$

$

Not available

20

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

21

Bear Cat 15841-00

SNAP RING, 2-1/2 EXTERNAL

$9.49

$

Usually ships in 3-7 days

0

22

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16379

FITTING, 1/4 NPT. X 1/4 HOSE

$9.49

$

Usually ships in 3-7 days

0

24

Bear Cat 16414

CLAMP, 1 IN. COATED METAL

$14.99

$

Usually ships in 3-7 days

0

25

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

26

Bear Cat 16616

JACK, PIVOTING W/SWIVEL CASTOR

$201.99

$

In Stock, only 1 left!

0

27

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

28

Bear Cat 16778

DECAL, DIESEL FUEL

$14.99

$

Usually ships in 3-7 days

0

29

Bear Cat 16848

FITTING, 1/8 MNPT X 1/4 HOSE

$7.99

$

Usually ships in 3-7 days

0

32921-00

FHP B PULLEY, 5.6 - 1/2" BORE

Note: (INCLUDES ITEMS 30 & 31)

$

$

Not available

30

SHEAVE, QT 1B5.6

$

$

Not available

31

BUSHING, QT 1/2

$

$

Not available

32

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

33

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

34

Bear Cat 31696-00

PUMP, HAND PRIMER

$32.99

$

Usually ships in 3-7 days

0

35

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

36

Bear Cat 36098-00

HOSE, .75 ID. X 38 IN. 100R4 HYD.

$127.99

$

Usually ships in 3-7 days

0

37

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

38

Bear Cat 71590

HOSE, 76 IN. FUEL RETURN

$63.99

$

Usually ships in 3-7 days

0

39

Bear Cat 72256-12

WELDMENT, FUEL TANK CLAMP
(Superseded to 71297-00)

$297.99

$

Usually ships in 3-7 days

0

40

Bear Cat 73079

HOSE, 38 IN. FUEL LINE

$54.99

$

Usually ships in 3-7 days

0

41

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

42

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

43

Bear Cat 75963-12

SHEET, TANK MOUNT

$

$

Not available

44

Bear Cat 75965-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available

45

PLATE, MOUNT HYDRAULIC PUMP (WAS 75966-12, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77090-12, PLATE, PUMP MOUNT)

$

$

Not available

46

Bear Cat 77122-00

ASSEMBLY, HYD. TANK 3.25 GAL, SERVICE PART

Note: (INCLUDES ITEMS 47 & 48)

$558.99

$

Usually ships in 3-7 days

0

47

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0

48

Bear Cat 18518-00

CAP, W/DIPSTICK
(Superseded to 71594-00)

$77.99

$

Usually ships in 3-7 days

0

48

Bear Cat 77090-12

PLATE, PUMP MOUNT

$

$

Not available
