CH 922 DH - Bear Cat 9" Chipper, 2.2 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0010FW004657) Discharge Chute (VIN: 5VJAA0016EW004368 - CURRENT) Parts Diagram

9" Chipper, 2.2 L Diesel Kubota

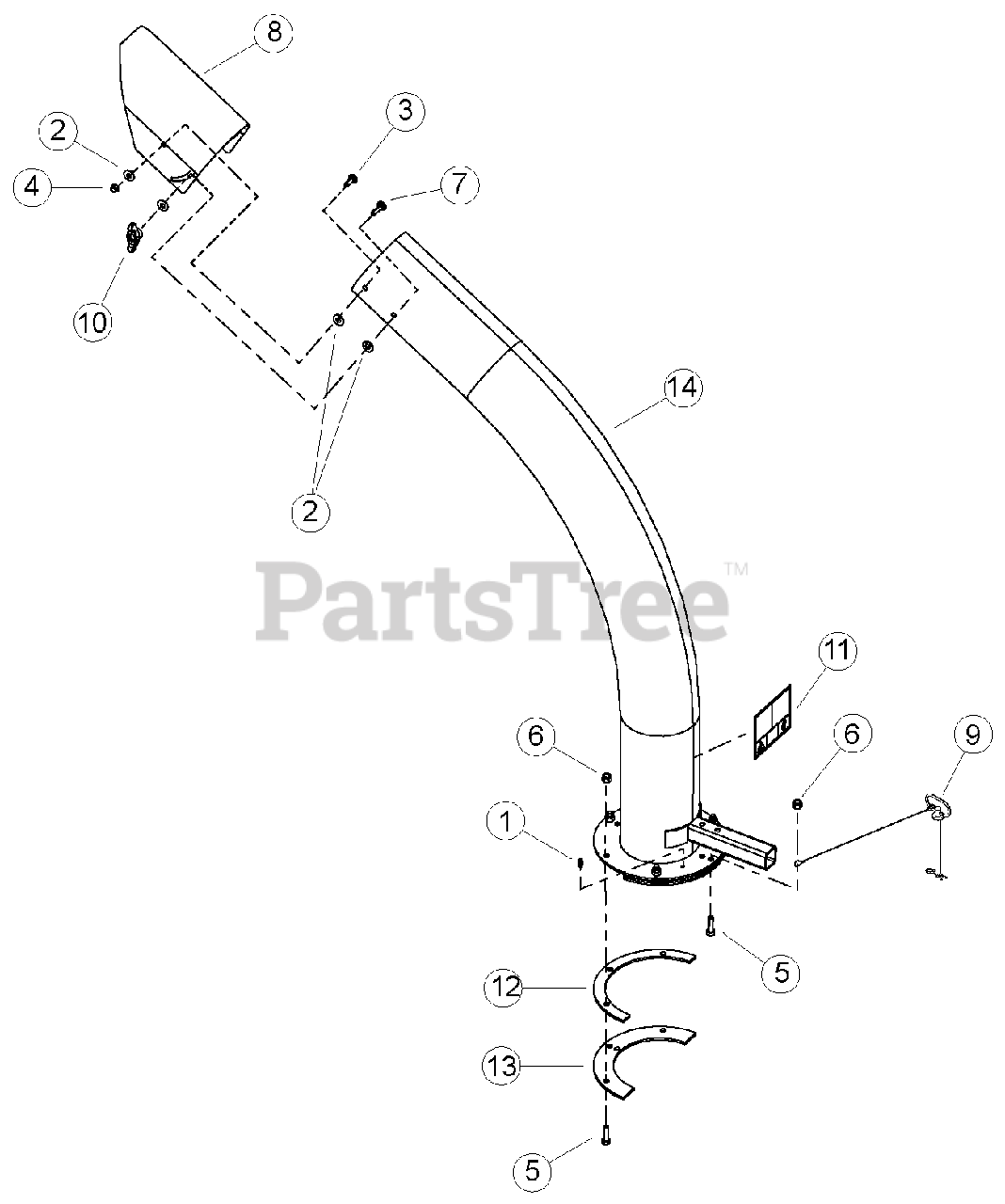

Discharge Chute (VIN: 5VJAA0016EW004368 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

3

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

4

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

5

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

7

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

8

Bear Cat 71081

DEFLECTOR, BLOWER-VAC DISCHARGE

$

$

Not available

9

Bear Cat 30131-00

PIN, 3/8" X 4.25" DISCHARGE

$

$

Not available

10

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

11

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0

12

Bear Cat 72452-12

SPACER, DISCHARGE PIVOT

$

$

Not available

13

Bear Cat 72453-12

RING, DISCHARGE CLAMP

$

$

Not available

14

Bear Cat 70168-00

ASSEMBLY, 8 INCH DISCHARGE CHUTE

Note: (INCLUDES ITEMS 1 & 11)

$792.99

$

Usually ships in 3-7 days

0
