CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA041XGW005195 & Above) Idler Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

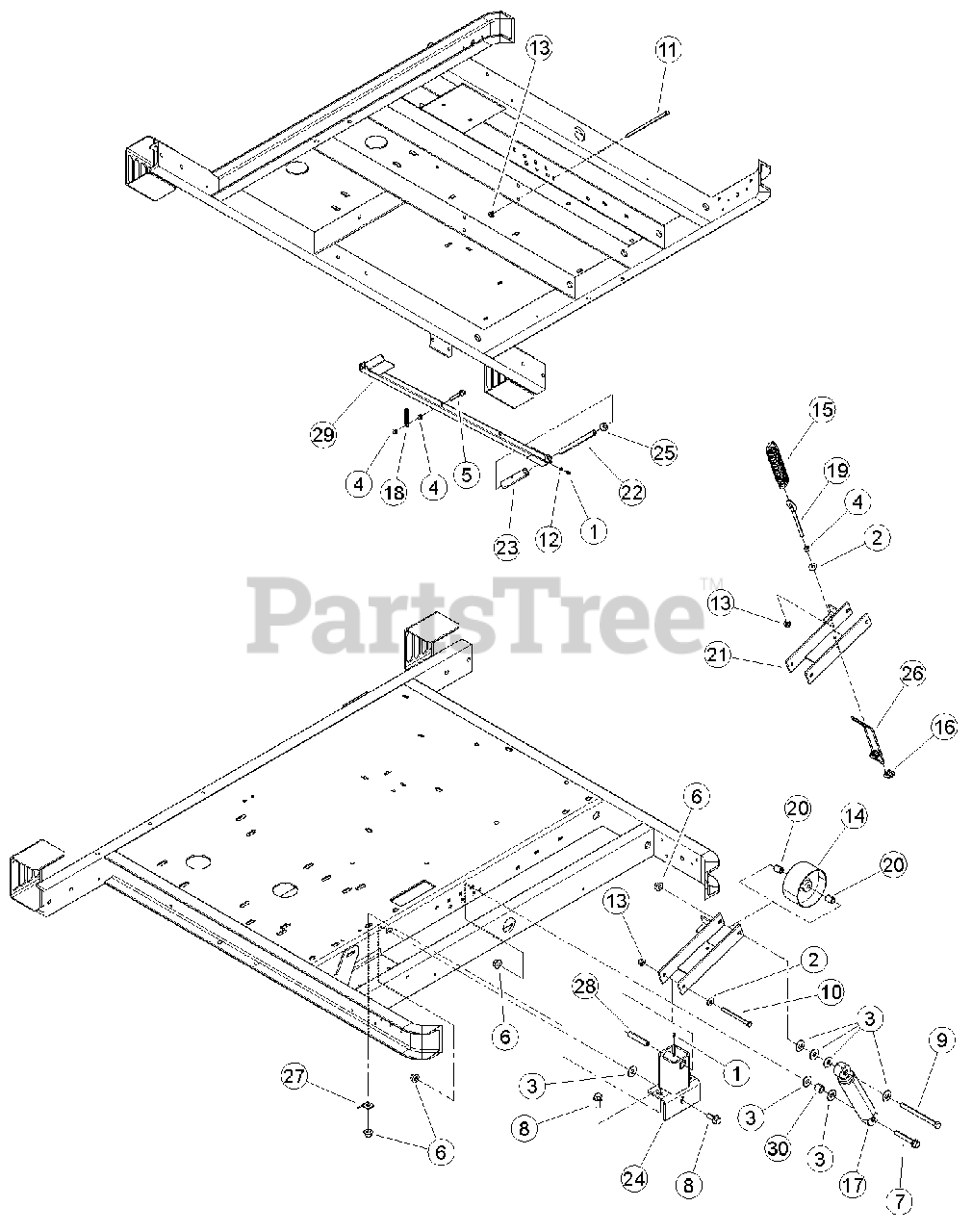

Idler Parts Diagram

  • Title
1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

4

Bear Cat 15042

NUT, 3/8" HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

5

15078-00

BOLT, 3/8 X 2 FLANGE NC

$

$

Not available

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15198-00

BOLT, 1/2-13 X 3-1/4 HWH GR8 YZP

$

$

Not available

8

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

9

15234

BOLT, 1/2 X 6 G5 HCS ZP

$

$

Not available

10

Bear Cat 15274

BOLT, 3/8 X 4-1/2" HHCS GR5 NC ZP

$

$

Not available

11

Bear Cat 15517

BOLT, 3/8 X 7-1/2" HHCS GR5 NC ZP

$

$

Not available

12

Bear Cat 15584

WASHER, FLAT .254 X .400 X .048

$

$

Not available

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 16230

PULLEY, IDLER 5 X 2.50"

$85.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16502

SPRING, 7-3/4" EXTENSION

$

$

Not available

16

Bear Cat 16782

CLAMP, 3/16 CABLE

$3.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

18

Bear Cat 17520

SPRING, LT EXT .555 OD X 2.75 LG

$15.99

$

Usually ships in 3-7 days

0

19

17804

EYEBOLT, 3/8 X 5" LG 4-1/4 THD ZP

$

$

Not available

20

Bear Cat 70290

SPACER, .75 X .90

$9.99

$

Usually ships in 3-7 days

0

21

Bear Cat 71505

WELDMENT, IDLER ARM

$

$

Not available

22

Bear Cat 71579

SPACER, .63 X 6.44

$34.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71580

SPACER, 1.0 X 4.25

$145.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71621

WELDMENT, IDLER SUPPORT

$

$

Not available

25

Bear Cat 71631

SPACER, 1.0 X 0.50

$

$

Not available

26

Bear Cat 71632

CABLE, 3/16 X 24-1/2

$47.99

$

Usually ships in 3-7 days

0

27

Bear Cat 71633

ANGLE, SPRING ANCHOR

$

$

Not available

28

Bear Cat 71634

SPACER, .63 X 3.06

$60.99

$

Usually ships in 3-7 days

0

29

Bear Cat 71865-35

WELDMENT, CHIPPER CLUTCH PEDAL

$

$

Not available

30

Bear Cat 73205-12

SPACER, 7/8 X 3/4

$

$

Not available
