CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA041XGW005195 & Above) Hydraulic Layout Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

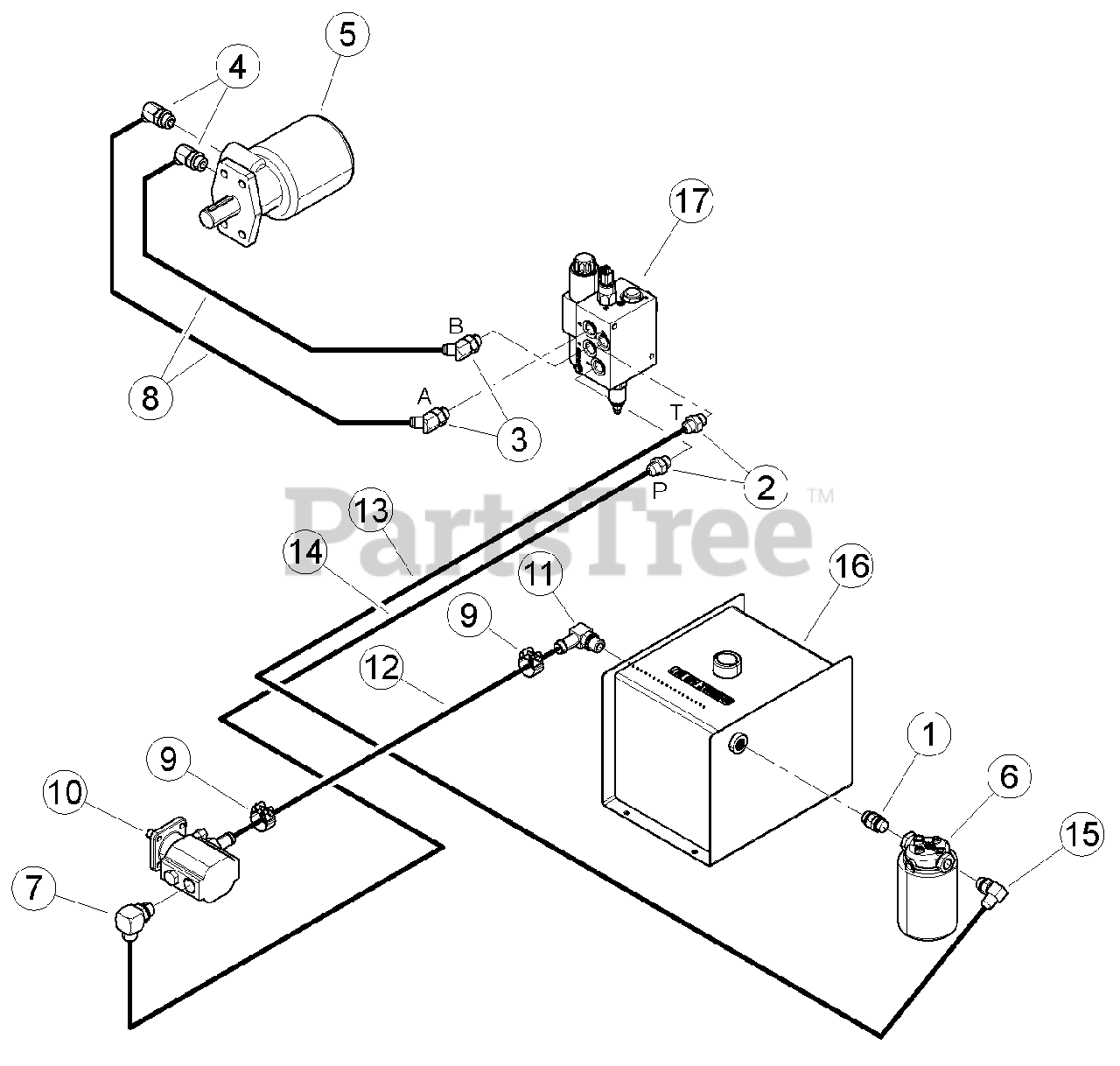

Hydraulic Layout Parts Diagram

  • Title

1

12339

ADAPTER, -8 MORING / -8 MORING ADJ

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 14417-00

ADAPTER, -8 MORB / -8 MJIC 45 DEG.

$

$

Not available

4

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

ASSEMBLY, HYDRAUILC FILTER

$112.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

8

Bear Cat 18029-00

HOSE, .375 X 36" -8 FMJIC / -8 FMJIC

$82.99

$

Usually ships in 3-7 days

0

9

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

10

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

11

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

12

Bear Cat 36098-00

HOSE, .75 ID X 38" 100R4 HYD

$127.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36265-00

HOSE, .50 X 84" -8 FMJIC / -8 FMJIC

$91.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36266-00

HOSE, .50 X 66" -8 FMJIC / -10 FMJIC 90 DEG.

$138.99

$

Usually ships in 3-7 days

0

15

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

16

Bear Cat 71296-00

ASSEMBLY, HYDRAULIC TANK
(Superseded to 77122-00)

$558.99

$

Usually ships in 3-7 days

0

17

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE

$2142.99

$

Usually ships in 3-7 days

0
