CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA041XGW005195 & Above) Frame (B) Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

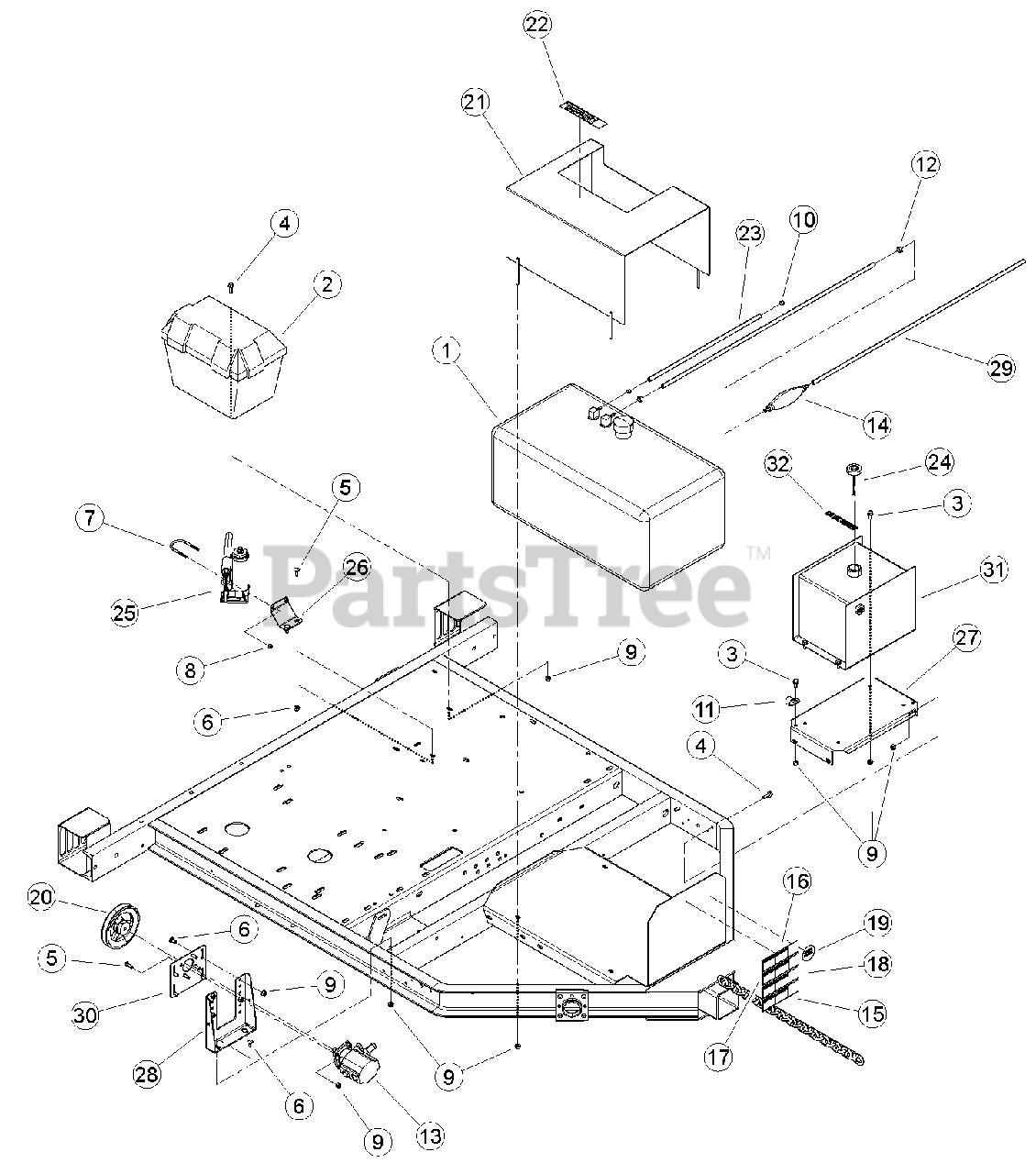

Frame (B) Parts Diagram

  • Title
1

Bear Cat 12053

TANK, 19 GAL FUEL

$812.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12271

BOX, PLASTIC BATTERY

$83.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15301

BOLT, 5/16" X 1" GR5 CRG ZP

$

$

Not available

6

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

7

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

12

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

13

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

14

Bear Cat 31696-00

PUMP, HAND PRIMER

$32.99

$

Usually ships in 3-7 days

0

15

Bear Cat 32327-00

DECAL, SAFETY CHAINS

$7.99

$

Usually ships in 3-7 days

0

16

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$7.99

$

Usually ships in 3-7 days

0

17

32330-00

DECAL, CHECK WHEELS

$

$

Not available

18

32332-00

DECAL, SAFE COUPLING

$

$

Not available

19

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

20

32921-00

PULLEY, 5.6 - 1/2" BORE FHP B

$

$

Not available

21

Bear Cat 71297-00

ASSEMBLY, FUEL TANK CLAMP W/ DECALS

Note: (INCLUDES ITEM 22)

$297.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16778

DECAL, DIESEL FUEL

$14.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71590

HOSE, 76" FUEL RETURN

$63.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71594-00

CAP, HYDRAULIC W/ DIPSTICK

$77.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

26

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

27

Bear Cat 75963-12

SHEET, TANK MOUNT

$

$

Not available

28

Bear Cat 75965-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available

29

Bear Cat 76725-00

HOSE, 38" FUEL

$62.99

$

Usually ships in 3-7 days

0

30

Bear Cat 77090-12

PLATE, PUMP MOUNT

$

$

Not available

31

Bear Cat 77122-00

ASSEMBLY, HYDRAULIC TANK 3.25 GAL

Note: (INCLUDES ITEM 32)

$558.99

$

Usually ships in 3-7 days

0

32

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0
