CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0018FW004664 - 5VJAA0414GW005189) Engine Housing Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

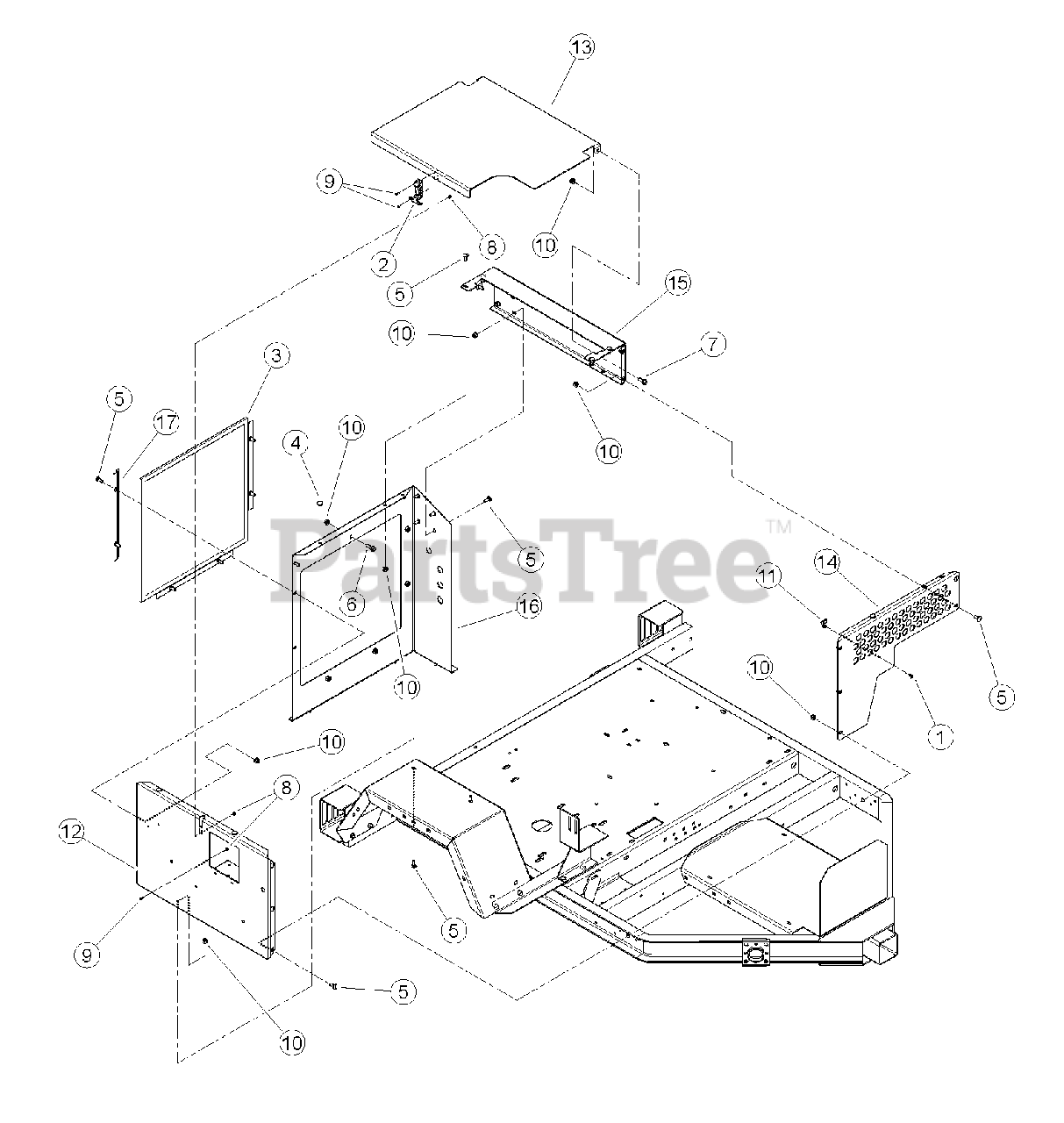

Engine Housing Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

0125-0060-00

LATCH, FLEXIBLE DRAW

$

$

Not available

3

Bear Cat 12278

SCREEN, RADIATOR INLET

$129.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

5

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

6

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

7

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

8

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

9

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

12

71195-12

WELDMENT, ENGINE SIDE

$

$

Not available

13

71215-12

HOOD, ENGINE

$

$

Not available

14

71216-12

COVER, FRONT ENGINE

$

$

Not available

15

71542-12

SIDE, ENGINE COVER

$

$

Not available

16

Bear Cat 71752-12

COVER, RADIATOR

$346.99

$

Usually ships in 3-7 days

0

17

Bear Cat 72678-12

BRACKET, SCREEN HOLDER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
