CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0018FW004664 - 5VJAA0414GW005189) Engine Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

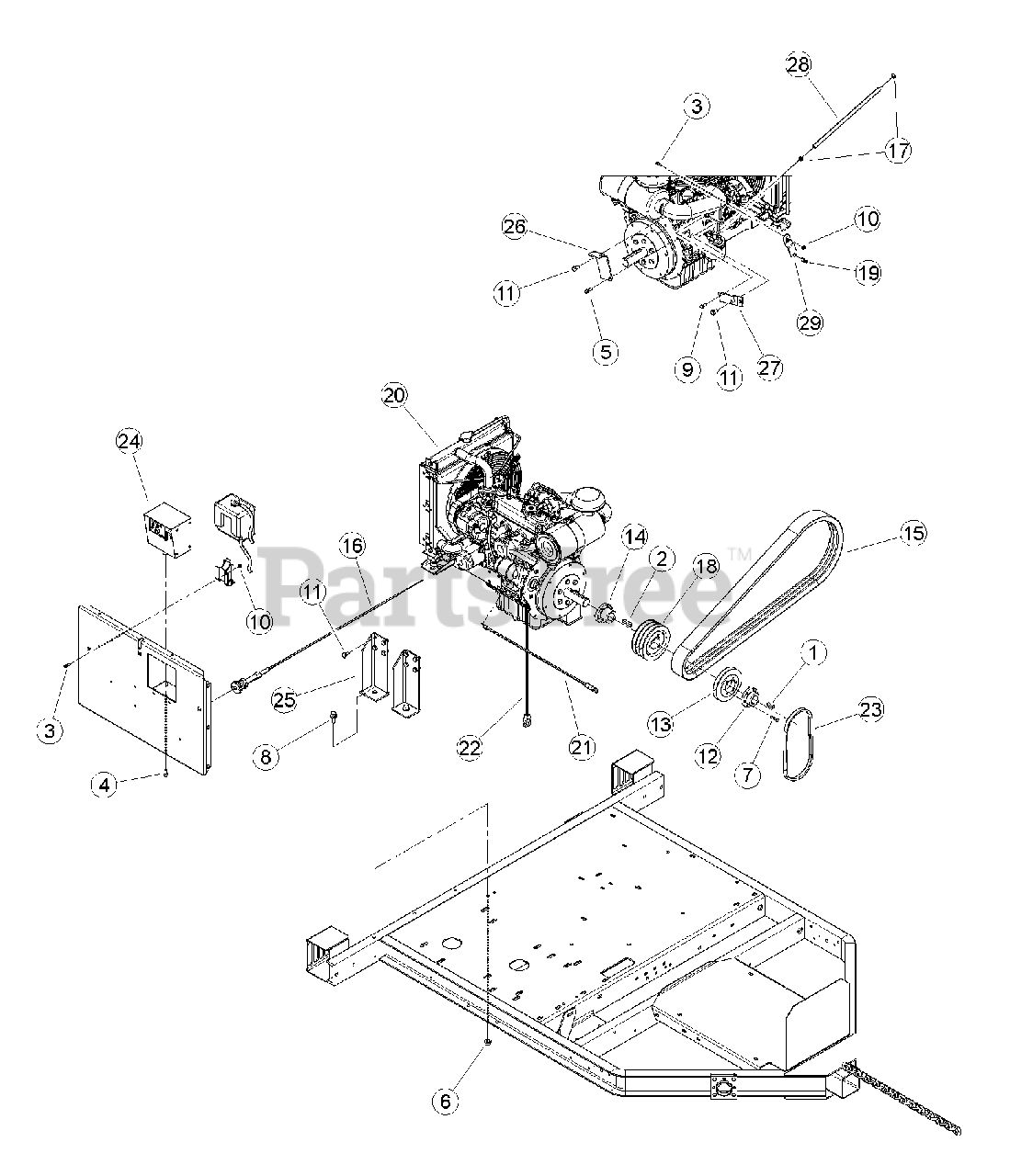

Engine Parts Diagram

  • Title
1

0122-0231-00

KEY, 3/8 SQ X 1-1/4

$

$

Not available

2

0122-0236-00

KEY, 3/8 SQ 1-3/4

$

$

Not available

3

15079-00

BOLT, 1/4-20X3/4,HWH,GR5,CZP

$

$

Not available

4

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

6

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

7

15214

BOLT, 1/4-20 X 1-1/4 GR5 HHCS MAGNI 565 SILVER

$

$

Not available

8

15232-00

BOLT, 1/2 -13 X 1-1/4 FLANGE NC

$

$

Not available

9

Bear Cat 15519

BOLT, M 8-1.25 X 20 GR8.8 HHD ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15960-00

BOLT, M10 X 1.25 X 20 GR10.9 HEX HEAD ZP

$5.49

$

Usually ships in 3-7 days

0

12

Bear Cat 16327

BUSHING, SDS 1-7/16"

$67.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16482

SHEAVE, 1B5.2 SDS

$86.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16552

BUSHING, SD 1-7/16"

$57.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16559

BELT, 3B83 BANDED

$220.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16769

CABLE, DIESEL THROTTLE

$168.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

18

Bear Cat 17026

SHEAVE, 3BQ5.6, SD

$144.99

$

Usually ships in 3-7 days

0

19

17165

CABLE STOP, BOWDEN PIN # 6170

$

$

Not available

20

ASSEMBLY, 28 HP KUBOTA DIESEL ENGINE

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST KUBOTA INDUSTRIAL ENGINE DEALER)

$

$

Not available

21

Bear Cat 31256-00

CABLE, 72" POSITIVE BATTERY

$111.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31374-00

CABLE, 72" NEGATIVE BATTERY

$100.99

$

Usually ships in 3-7 days

0

23

Bear Cat 32930-00

BELT, BX30

$42.99

$

Usually ships in 3-7 days

0

24

Bear Cat 33192-00

CONTROLLER, DSE - KUBOTA
(Superseded to 33983-00)

$

$

Not available

25

Bear Cat 71514

WELDMENT, ENGINE MOUNT

$

$

Not available

26

Bear Cat 71525

ANGLE, SPRING ANCHOR

$

$

Not available

27

Bear Cat 71563

STRIP, CABLE ANCHOR

$

$

Not available

28

Bear Cat 71696

HOSE, 15 INCH FUEL LINE

$39.99

$

Usually ships in 3-7 days

0

29

Bear Cat 71720

STRIP, THROTTLE CONTROL

$

$

Not available
