CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Shields Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

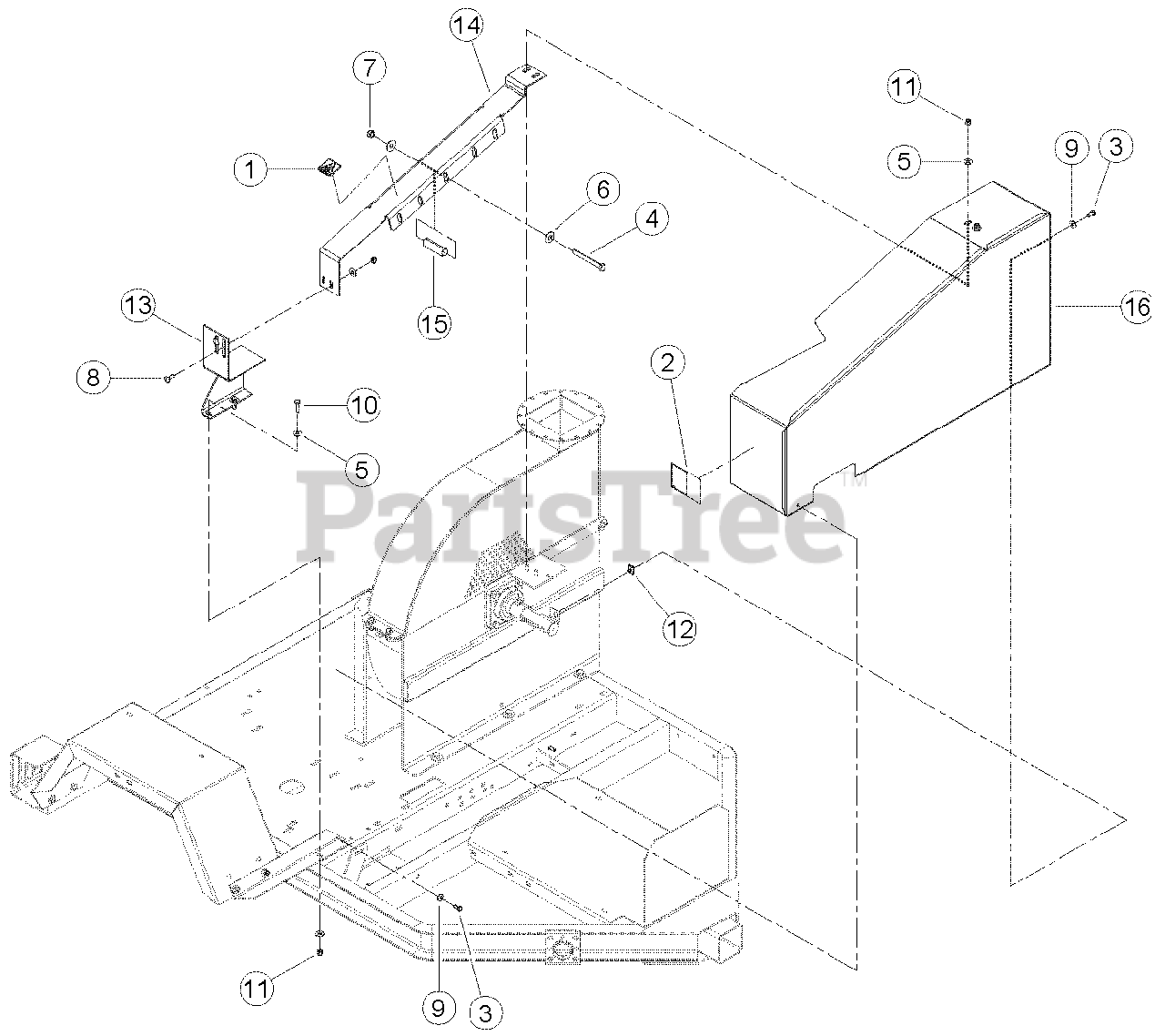

Shields Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12183

DECAL, CLUTCH ENGAGEMENT ISO

$10.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

4

15017

BOLT, 1/2 X 4-1/2 HHCS GR5 NC ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1 CRG GR5 ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15402

NUT, 5/16-18 TINNERMAN U-TYPE

$

$

Not available

13

Bear Cat 72668-12

WELDMENT, BELT GUIDE

$

$

Not available

14

Bear Cat 73679-12

SHIELD, BELT
(Superseded to 71327-00)

$251.99

$

Usually ships in 3-7 days

0

15

Bear Cat 74466-00

SPACER, TUBE 1 OD X .5 ID X 3.13

$127.99

$

Usually ships in 3-7 days

0

16

75971-12

WELDMENT, 50 HP BELT GUARD

$

$

Not available
