CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Idler Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

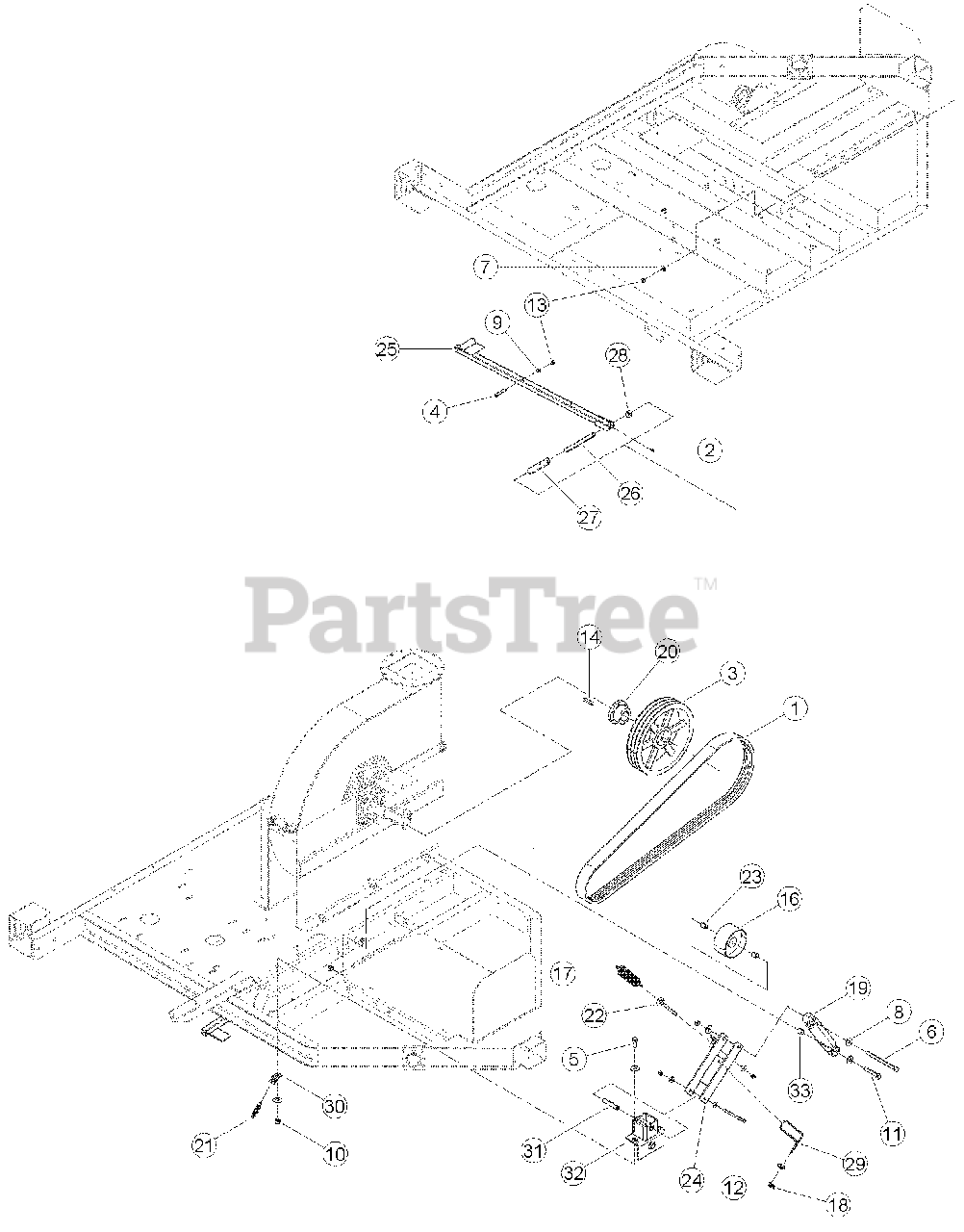

Idler Parts Diagram

  • Title

1

Bear Cat 12273

BELT, 3B90 BANDED (CH922DH)

$199.99

$

Usually ships in 3-7 days

0

1

Bear Cat 16559

BELT, 3B83 BANDED (CH911DH)

$220.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

12455

SHEAVE, 3BQ12.4 SK (CH922DH)

$

$

Not available

3

Bear Cat 12458

SHEAVE, 3BQ11.0, SK (CH911DH)

$270.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15008

BOLT, 3/8 X 2 HEX HD GR5 ZP

$

$

Not available

5

15013

BOLT, 1/2 X 1-1/4 HHCS NC ZP

$

$

Not available

6

15018

BOLT, 1/2 X 6-1/2 HCS GR5 ZP (CH922DH)

$

$

Not available

6

15234

BOLT, 1/2 X 6 HEX HD GR5 ZP (CH911DH)

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

9

Bear Cat 15042

NUT, 3/8 HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

11

Bear Cat 15086

BOLT, 1/2 X 3 HEX HD GR5 ZP (CH922DH

$

$

Not available

11

Bear Cat 15173

BOLT, 1/2 X 3 1/4 HEX HD GR5 ZP (CH911DH)

$

$

Not available

12

Bear Cat 15274

BOLT, 3/8 X 4-1/2 HHCS GR5 NC ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

15

Bear Cat 15517

BOLT, 3/8 X 7-1/2 HHCS GR5 NC ZP

$

$

Not available

16

Bear Cat 16230

PULLEY, IDLER 5 X 2.50

$85.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16502

SPRING, 7-3/4 EXTENSION

$

$

Not available

18

Bear Cat 16782

CLAMP, 3/16 CABLE

$3.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

20

Bear Cat 17248

BUSHING, SK 1-3/4

$

$

Not available

21

Bear Cat 17520

SPRING, LT. EXT. .555 OD. X 2.75 LONG

$15.99

$

Usually ships in 3-7 days

0

22

17804

EYEBOLT, 3/8 X 5, 4-1/4 THD ZP

$

$

Not available

23

Bear Cat 70290

SPACER, .75 X .90

$9.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71505

WELDMENT, IDLER ARM

$

$

Not available

25

Bear Cat 71546

WELDMENT, CHIPPER CLUTCH PEDAL

$

$

Not available

26

Bear Cat 71579

SPACER, .63 X 6.44

$34.99

$

Usually ships in 3-7 days

0

27

Bear Cat 71580

SPACER, 1.0 X 4.25

$145.99

$

Usually ships in 3-7 days

0

28

Bear Cat 71631

SPACER, 1.0 X .50

$

$

Not available

29

Bear Cat 71632

CABLE, 3/16 X 24-1/2

$47.99

$

Usually ships in 3-7 days

0

30

Bear Cat 71633

ANGLE, SPRING ANCHOR

$

$

Not available

31

Bear Cat 71634

SPACER, .63 X 3.06

$60.99

$

Usually ships in 3-7 days

0

32

Bear Cat 71638

WELDMENT, IDLER SUPPORT (CH922DH)

$

$

Not available

32

Bear Cat 71621

WELDMENT, IDLER SUPPORT (CH911DH)

$

$

Not available

33

Bear Cat 73205-12

SPACER, 7/8 X 3/4

$

$

Not available
