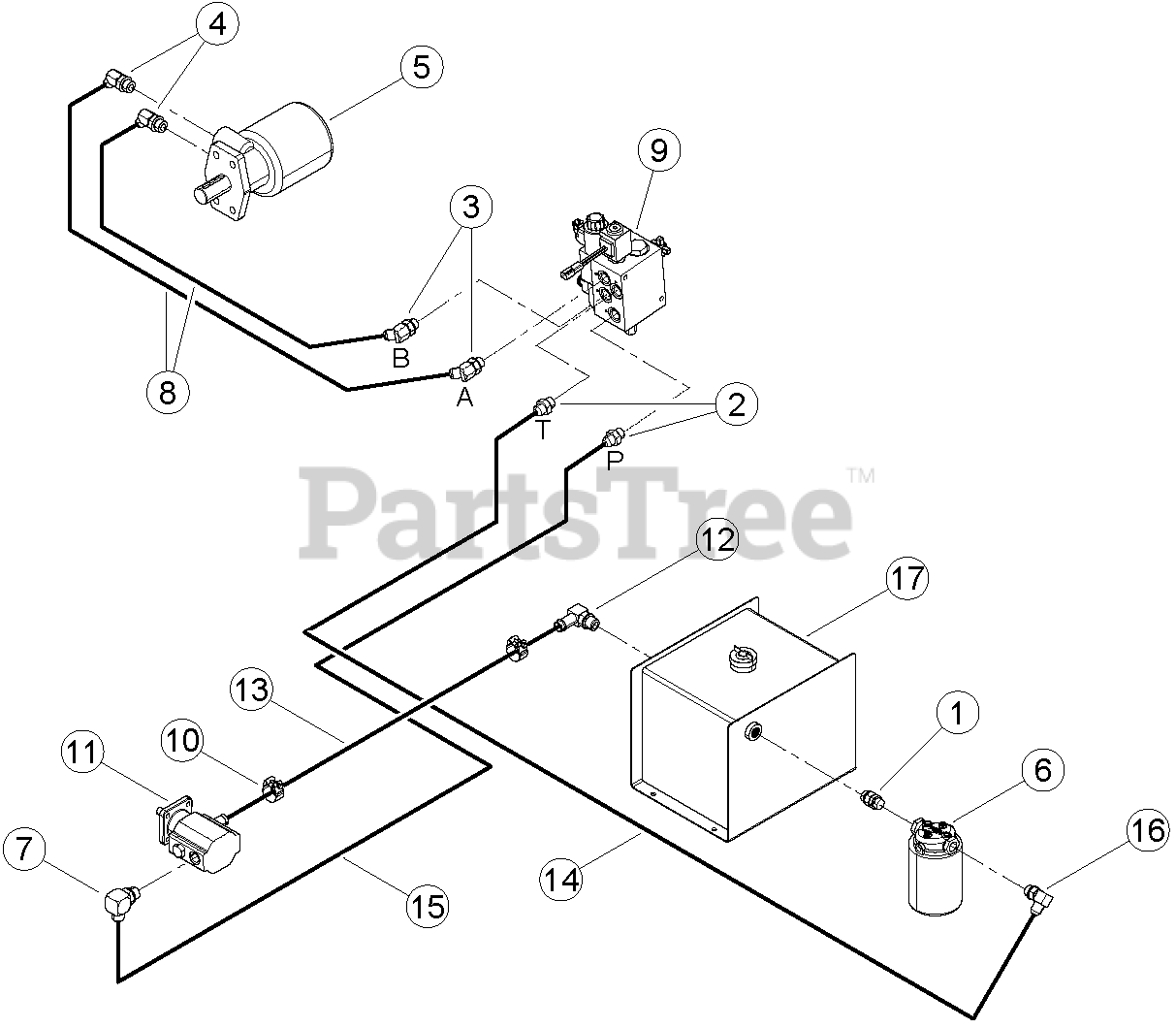

CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Hydraulic Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

Hydraulic Parts Diagram

  • Title

1

12339

ADAPTER, -8 MORING / -8 MORING ADJ

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 14417-00

ADAPTER, -8 MORB / -8 MJIC 45 DEG.

$

$

Not available

4

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU. IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

8

Bear Cat 18029-00

HOSE, .375 X 36 -8 FMJIC / -8 FMJIC

$82.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18527-00

ASSEMBLY, CHIPPER VALVE
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

Bear Cat 18602-00

SWITCH, PRESSURE
(Superseded to 30132-00)

$439.99

$

Usually ships in 3-7 days

0

10

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

12

Bear Cat 36017-00

ADAPTER, -10 MORING / .75 90 DEG.

$40.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36098-00

HOSE, .75 ID. X 38 IN. 100R4 HYD.

$127.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36265-00

HOSE, .50 X 84 -8 FMJIC / -8 FMJIC

$91.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36266-00

HOSE, .50 X 66 -8 FMJIC / -10 FMJIC 90 DEG.

$138.99

$

Usually ships in 3-7 days

0

16

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

17

Bear Cat 77122-00

WELDMENT, TANK HYDRAULIC 3.25 GAL.

$558.99

$

Usually ships in 3-7 days

0
