CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0017BW002771 - 5VJAA0016CW003752) Chute (NON-CE COMPLIANT) Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

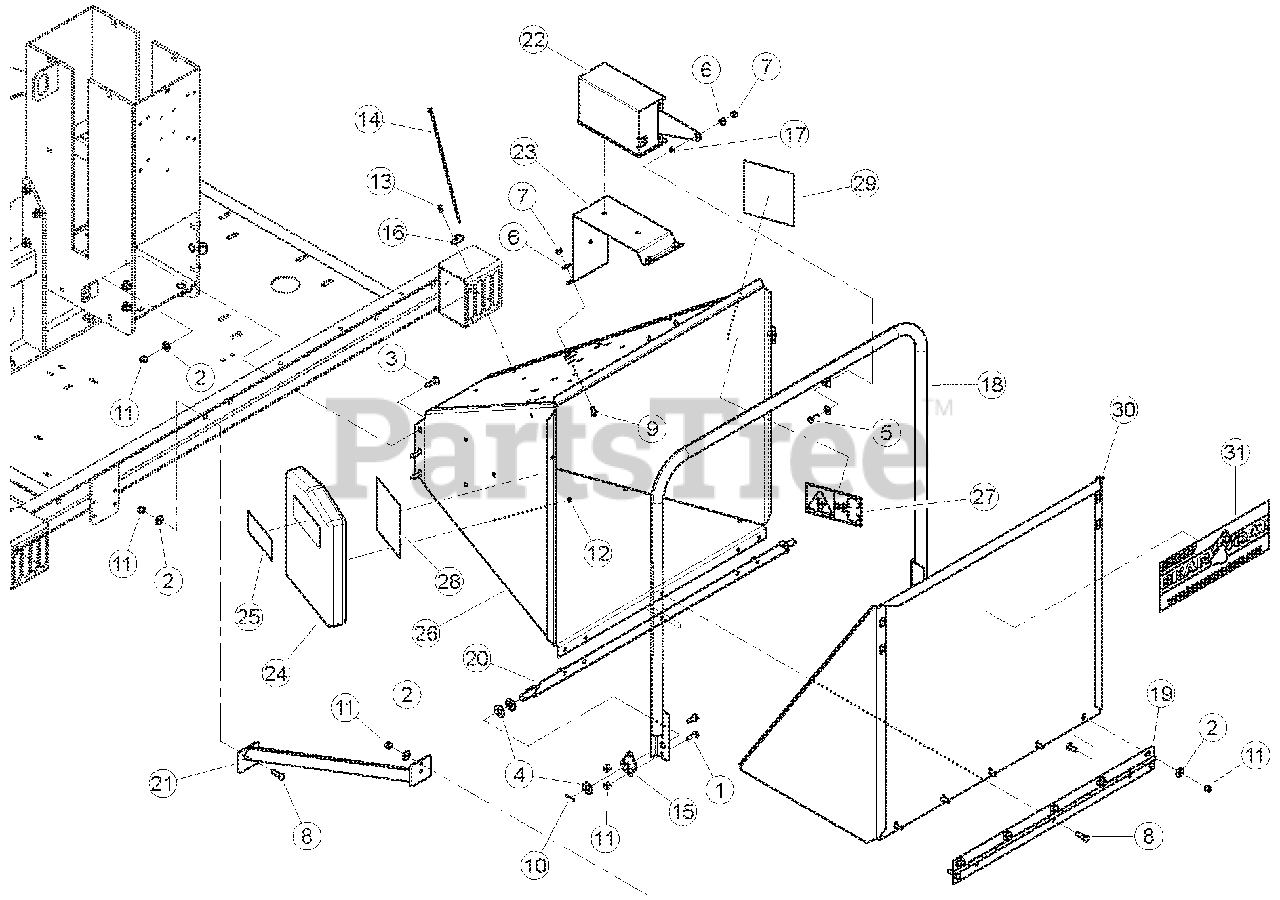

Chute (NON-CE COMPLIANT) Parts Diagram

  • Title
1

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2 CRG GR5 ZP

$

$

Not available

4

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

8

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

11

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

14

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

15

Bear Cat 17897

BEARING, SIDE FLNG MOUNT 5/8"

$34.99

$

Usually ships in 3-7 days

0

16

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

17

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

18

Bear Cat 71352

WELDMENT, CONTROL ARM

$

$

Not available

19

Bear Cat 71492-12

HINGE, EXTENSION TRAY

$

$

Not available

20

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

21

Bear Cat 72696-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

22

Bear Cat 75186-00

ASSEMBLY, SWITCH BOX

$469.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75207-12

MOUNT, SWITCH BOX

$75.99

$

Usually ships in 3-7 days

0

24

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER SERVICE PART

Note: INCLUDES ITEM 25

$89.99

$

Usually ships in 3-7 days

0

25

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

26

Bear Cat 77126-00

ASSEMBLY, BIG CHIPPER CHUTE, SERVICE PART

Note: INCLUDES ITEMS 27- 29

$1036.99

$

Usually ships in 3-7 days

0

27

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

28

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

29

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

30

Bear Cat 77127-00

ASSEMBLY, CHUTE EXT. TRAY, SERVICE PART

Note: INCLUDES ITEM 31

$691.99

$

Usually ships in 3-7 days

0

31

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0
