CH 911 DH - Bear Cat 9" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0010FW004657) Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

9" Chipper, 1.1 L Diesel Kubota

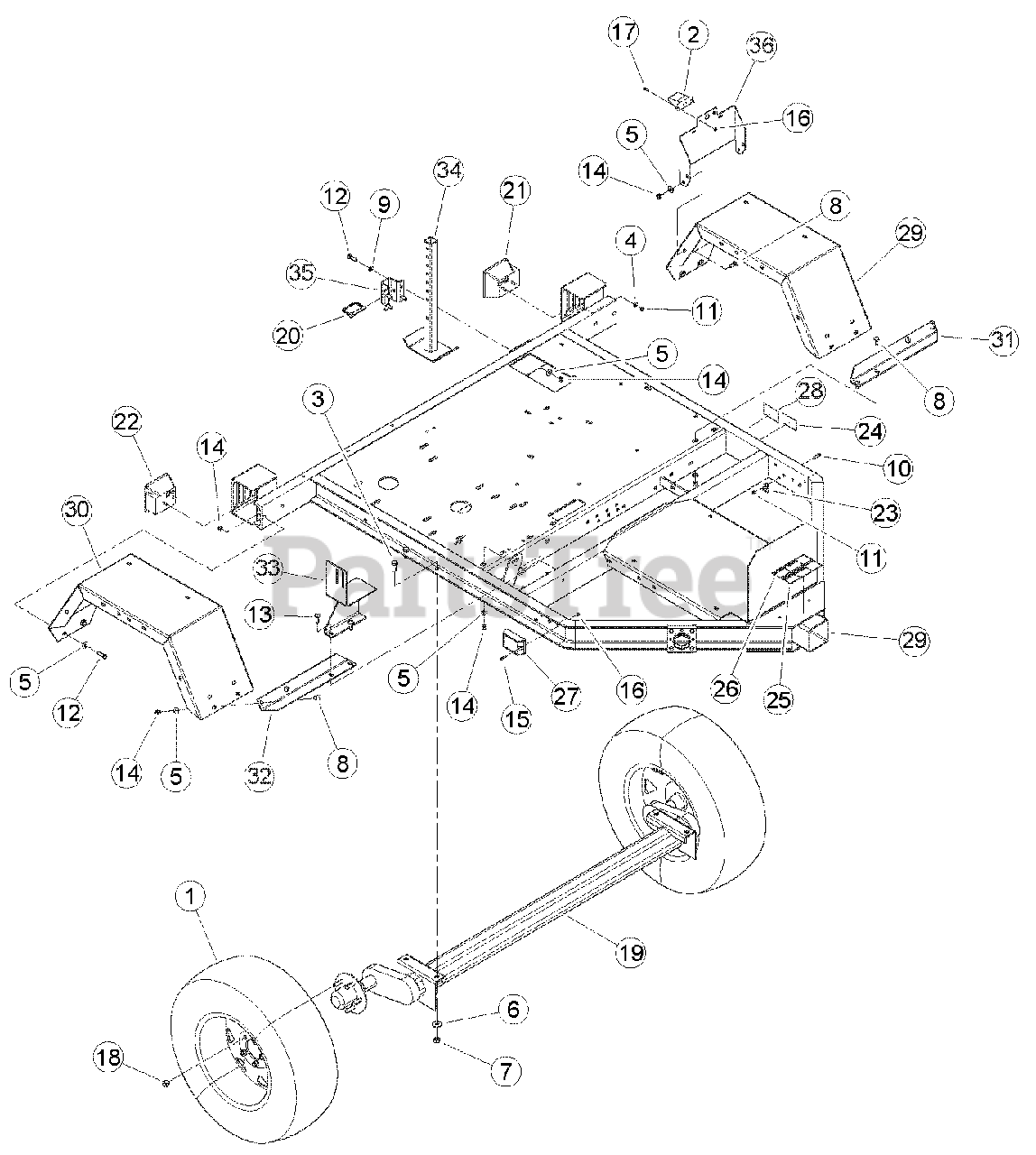

Frame (NON-CE COMPLIANT) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12125

ASSEMBLY, 15 IN. TIRE & WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

15013

BOLT, 1/2 X 1-1/4 HEX GR5 NC ZP

$

$

Not available

4

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

9

15260

WASHER, 3/8 SAE FLAT ZP

$

$

Not available

10

15284

BOLT, 1/4 X 1 HEX GR8 ZP

$

$

Not available

11

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

12

15364

BOLT, 3/8 X 1-1/4 HEX GR5 ZP

$

$

Not available

13

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

15393

MACH. SCREW,10-24 X 1 RND HD PHL ZP

$

$

Not available

16

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

17

Bear Cat 15460

MACH. SCREW, #10-24 X 3/4 PAN HD PH ZP

$

$

Not available

18

Bear Cat 15527

NUT, 1/2 -20 WHEEL

$

$

Not available

19

Bear Cat 16764

AXLE, 3000 LB. TORSION

$1281.99

$

Usually ships in 3-7 days

0

20

16808

PIN, 3/8 X 2-3/4 SNAP

$

$

Not available

21

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

24

Bear Cat 32154-00

DECAL, P215/70R15 LOAD RATING

$22.99

$

Usually ships in 3-7 days

0

25

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$7.99

$

Usually ships in 3-7 days

0

26

32330-00

DECAL, CHECK WHEELS

$

$

Not available

27

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

28

32992-00

DECAL, EPA EMISSION

$

$

Not available

29

Bear Cat 71508

WELDMENT, CHIPPER TRAILER

$

$

Not available

30

Bear Cat 71534

FENDER, HEAVY DUTY

$273.99

$

Usually ships in 3-7 days

0

31

Bear Cat 71545

ANGLE, FENDER MOUNT LH

$

$

Not available

32

Bear Cat 71587

ANGLE, FENDER MOUNT RH

$

$

Not available

33

Bear Cat 72668-12

WELDMENT, BELT GUIDE

$

$

Not available

34

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

35

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

36

Bear Cat 75183-12

BRACKET, LICENSE PLATE

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32324-00

HARNESS, CHIPPER TRAILER

$267.99

$

Usually ships in 3-7 days

0

Bear Cat 71707

CONDUIT, 1/4 X 158 WIRE

Note: (NOT SHOWN)

$37.99

$

Usually ships in 3-7 days

0

Bear Cat 71708

CONDUIT, 1/4 X 47 WIRE

Note: (NOT SHOWN)

$34.99

$

Usually ships in 3-7 days

0
