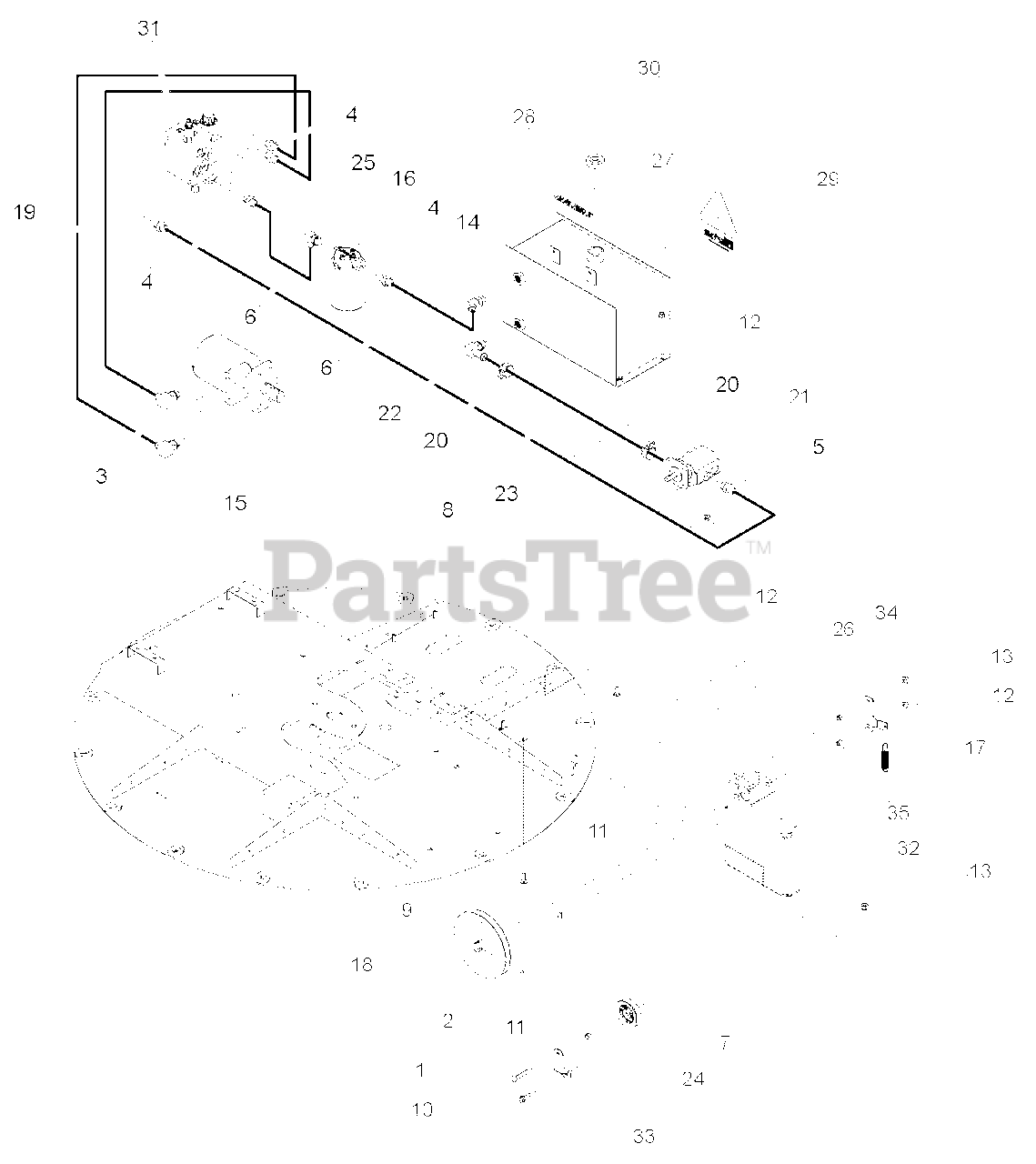

CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0418GW005194 & Above) Hydraulic Layout Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

Hydraulic Layout Parts Diagram

  • Title

1

0103-0711-00

BOLT, 3/8 X 2-1/4 HEX GR5 ZP

$

$

Not available

2

0104-0076-00

SET SCREW, HSC 1/4 -20X -3/8 CUP

$

$

Not available

3

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

4

Bear Cat 12615

ADAPTER, -8MORING/-8MJIC

$

$

Not available

5

Bear Cat 12626

ADAPTER, -10MORING/-8MJIC

$

$

Not available

6

Bear Cat 14278-00

HOSE ASSEMBLY, 8FMJIC/8FMJIC SW X 32"

$61.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14637-00

IDLER, INSIDE

$60.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14665-00

HOSE ASSEMBLY, 8FJIC90 SW X 8FJIC SW 54"

$85.99

$

Usually ships in 3-7 days

0

9

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

10

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

11

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

14

16067

ADAPTER, -10MORING/-8MJIC 45 DEG

$

$

Not available

15

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

17

Bear Cat 17692

SPRING, 3/4" OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18526-00

PULLEY, 7.5 OD X 1/2 IN BORE

$103.99

$

Usually ships in 3-7 days

0

19

Bear Cat 18535-00

HOSE ASSEMBLY, -8FMJIC/-8FMJIC90 X 61

$106.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36017-00

ADAPTER, -10 MORING/.75 90 DEG HOSE

$40.99

$

Usually ships in 3-7 days

0

23

Bear Cat 36082-00

HOSE, .75 X 19.75 100R4

$59.99

$

Usually ships in 3-7 days

0

24

41158

BUSHING

$

$

Not available

25

41287

ADAPTER, -8MORING/-8MJIC 90 DEG

$

$

Not available

26

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

27

71597-00

ASSEMBLY, HYDRAULIC TANK SERVICE PART

Note: (INCLUDES ITEMS 28-30)

$

$

Not available

28

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0

29

Bear Cat 31540-00

DECAL, CHIP IT (WHITE)

$13.99

$

Usually ships in 3-7 days

0

30

Bear Cat 71594-00

CAP, HYDRAULIC W/ DIPSTICK

$77.99

$

Usually ships in 3-7 days

0

31

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2142.99

$

Usually ships in 3-7 days

0

32

Bear Cat 75206-12

WELDMENT, PUMP MOUNT

$

$

Not available

33

Bear Cat 75208-12

BRACKET, IDLER MOUNT

$

$

Not available

34

Bear Cat 75209-12

PLATE, IDLER MOUNT

$

$

Not available

35

Bear Cat 75211-00

SPACER, 1/2 OD X 14 GA X .49
(Superseded to 73508-00)

$12.99

$

Usually ships in 3-7 days

0
