CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0418GW005194 & Above) Frame (B) (Part 1) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

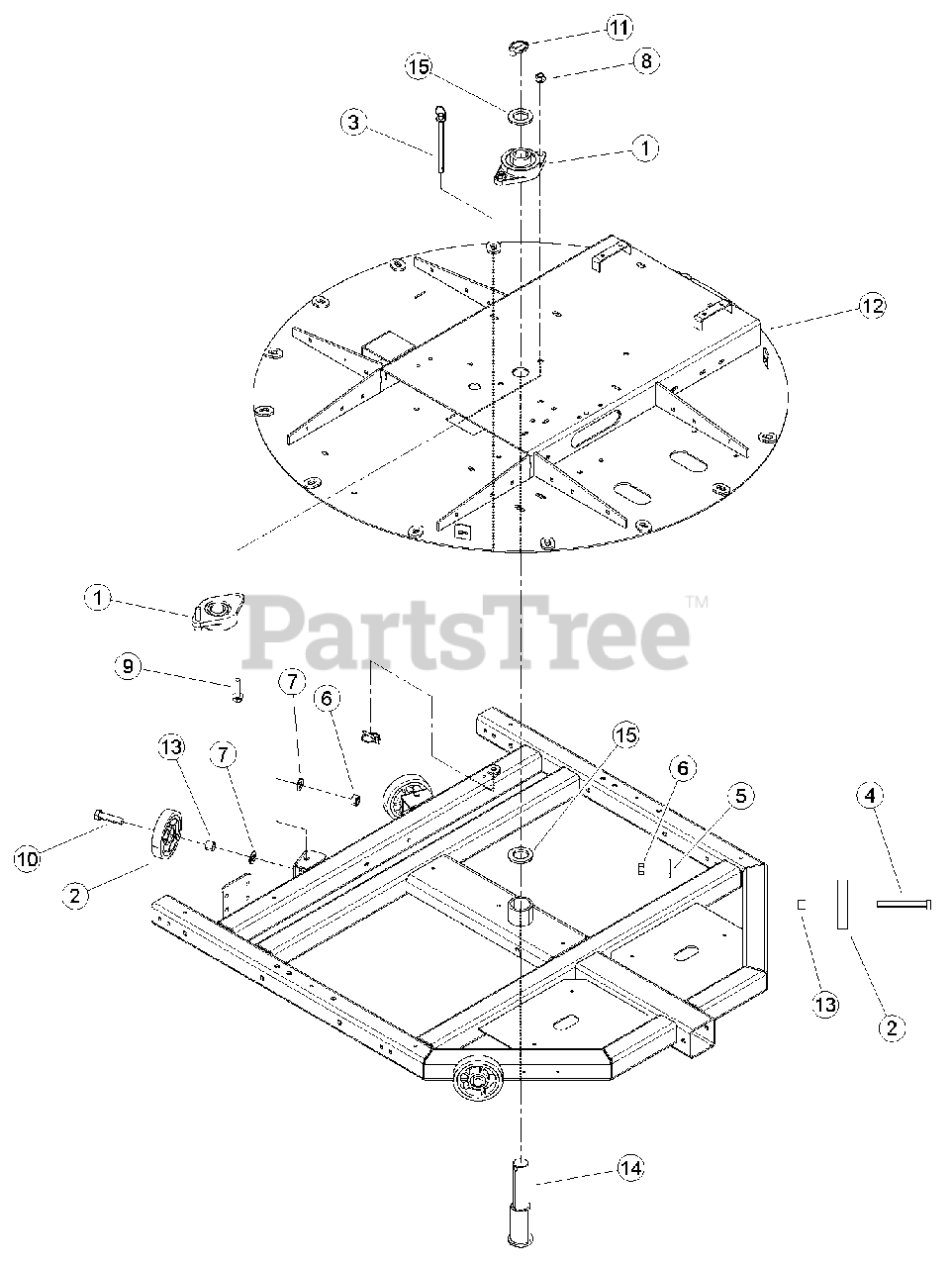

Frame (B) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

14509-00

ROLLER, 5 X 1 X 5/8 NOFF AL

$

$

Not available

3

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$37.99

$

Usually ships in 3-7 days

0

4

15022

BOLT, 5/8 X 5 HEX HD G5 ZP

$

$

Not available

5

Bear Cat 15035

WASHER, 5/8" FLAT ZP

$

$

Not available

6

15050

NUT, 5/8" CENTERLOCK ZP GR5

$

$

Not available

7

15129

WASHER, 5/8" SAE FLAT ZP

$

$

Not available

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15200-00

BOLT, 1/2-13 X 2 HWH GR5 CZP

$

$

Not available

10

15265

BOLT, 5/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

12

70525-12

WELDMENT, CHIPPER BASE

$

$

Not available

13

Bear Cat 73205-12

SPACER, 7/8 X 3/4

$

$

Not available

14

Bear Cat 73864-00

PIN, CHIPPER PIVOT

$184.99

$

Usually ships in 3-7 days

0

15

Bear Cat 74814-12

SPACER, 2.00 X 1.50 X 0.25

$

$

Not available
