CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Frame (A) NON-CE COMPLIANT (VIN: 5VJAA0012FW004630 - 5VJAA0413GW005166) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

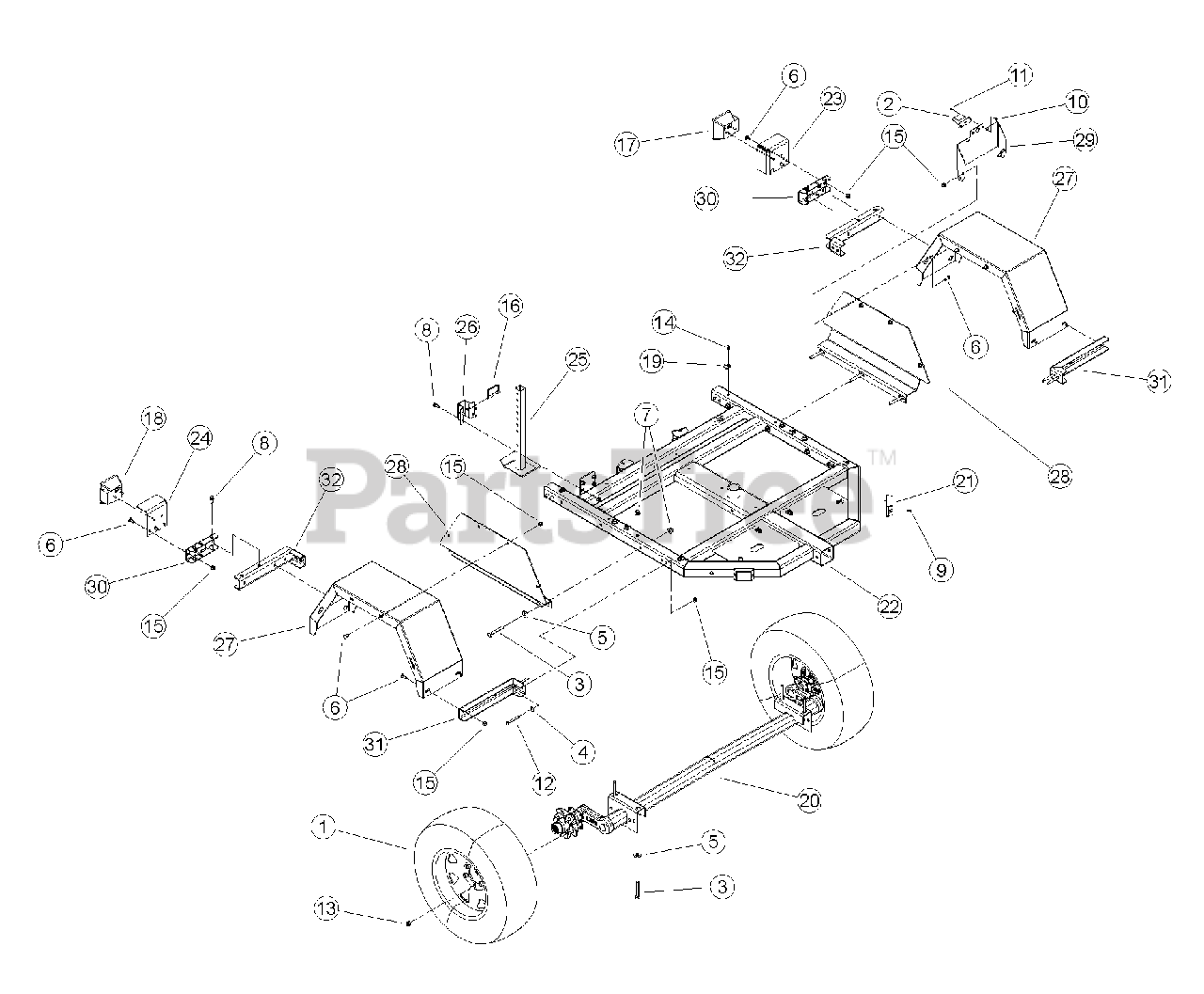

Frame (A) NON-CE COMPLIANT (VIN: 5VJAA0012FW004630 - 5VJAA0413GW005166) Parts Diagram

  • Title

1

Bear Cat 12125

ASSEMBLY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

15016

BOLT, 1/2 X 3-1/2" GR5 HEXHD ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

5

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

9

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

10

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

11

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

12

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

17

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

19

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31636-00

AXLE, TORSION SUSPENSION

$1281.99

$

Usually ships in 3-7 days

0

21

Bear Cat 32347-00

LIGHT, AMBER MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

22

70623-12

WELDMENT, 8" CHIPPER TRAILER

$

$

Not available

23

Bear Cat 71278

BRACKET, LH TAIL LIGHT

$

$

Not available

24

Bear Cat 71279

BRACKET, RH TAIL LIGHT

$

$

Not available

25

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

26

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

27

Bear Cat 73865-12

FENDER, CHIPPER

$

$

Not available

28

Bear Cat 73866-12

BRACKET, FENDER

$

$

Not available

29

Bear Cat 75183-12

BRACKET, LICENSE PLATE

$

$

Not available

30

77491-12

BRACKET, TAIL LIGHT

$

$

Not available

31

77492-12

ANGLE, FENDER GUSSET

$

$

Not available

32

77738-12

WELDMENT, FENDER GUSSET

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32324-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$267.99

$

Usually ships in 3-7 days

0
