CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Frame (A) NON-CE COMPLIANT (VIN: 5VJAA0011EW004522 AND BELOW) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

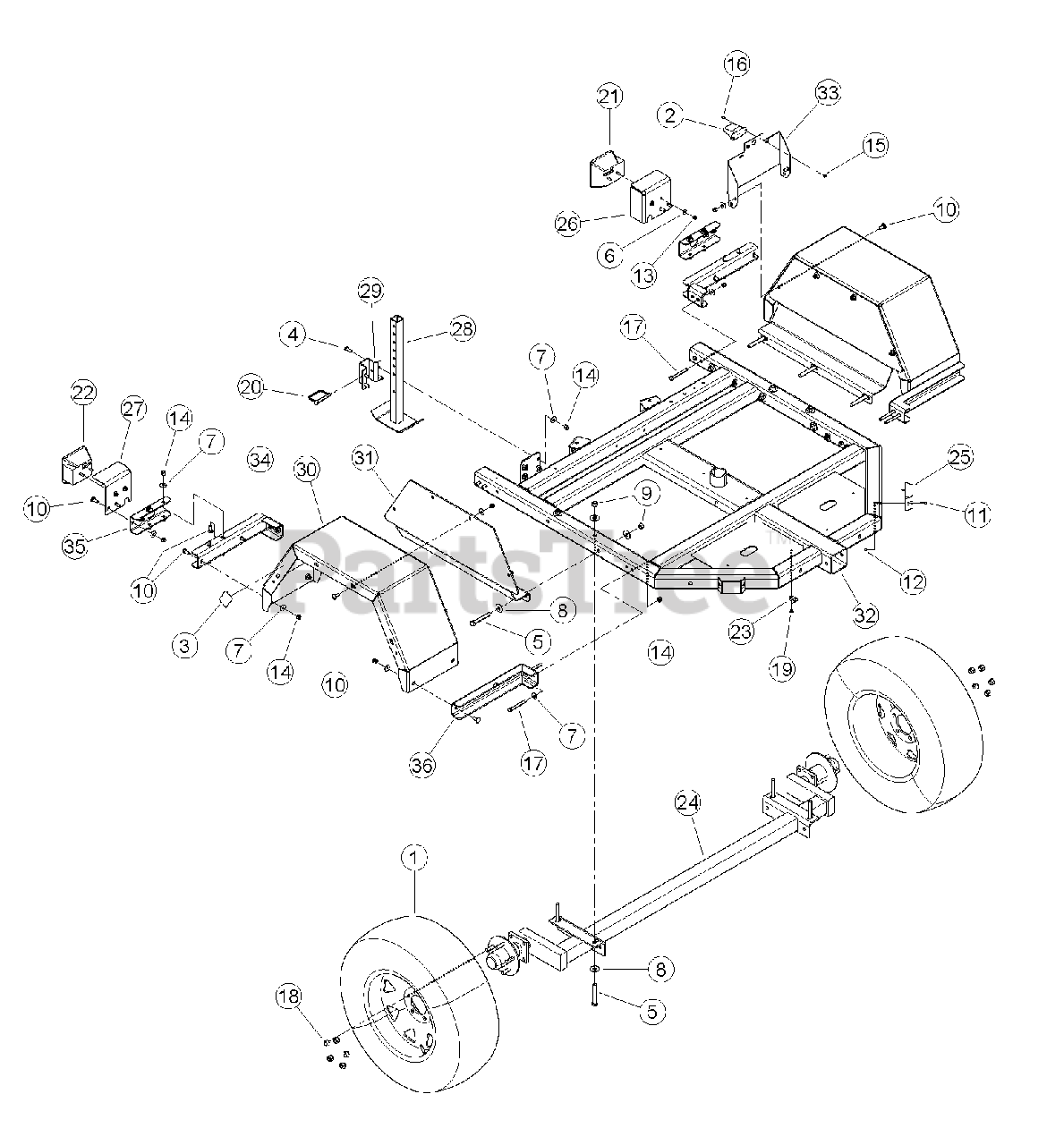

Frame (A) NON-CE COMPLIANT (VIN: 5VJAA0011EW004522 AND BELOW) Parts Diagram

  • Title

1

Bear Cat 12125

ASSEMBLY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15006

BOLT, 3/8 X 1 HEX GR5 ZP

$

$

Not available

5

15016

BOLT, 1/2 X 3-1/2 HEX GR5 ZP

$

$

Not available

6

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

10

BOLT, 3/8 X 1 CRG GR5 NC ZP

Note: (REPLACED AND SUPERSEDED 15057. FOR SERVICE ORDER PN 15006)

$

$

Not available

11

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

12

15255

NUT, 8-32 NYLOCK

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

16

15423

MACH. SCREW, 10-24 X 1/2 PAN HD PH ZP

$

$

Not available

17

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX GR5 ZP

$

$

Not available

18

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

19

Bear Cat 15827-00

RIVET, 1/4 X 1/2 AL BLIND DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

20

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

21

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

24

Bear Cat 31636-00

AXLE, TORSION SUSPENSION

$1281.99

$

Usually ships in 3-7 days

0

25

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71278

BRACKET, LH TAILLIGHT

$

$

Not available

27

Bear Cat 71279

BRACKET, RH TAILLIGHT

$

$

Not available

28

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

29

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

30

Bear Cat 73865-12

FENDER, CHIPPER

$

$

Not available

31

Bear Cat 73866-12

BRACKET, FENDER

$

$

Not available

32

WELDMENT, CHIPPER TRAILER

Note: (REPLACED AND SUPERSEDED 73867-12. FOR SERVICE ORDER PN 70623-12)

$

$

Not available

33

Bear Cat 75183-12

BRACKET, LICENSE PLATE

$

$

Not available

34

BRACKET, FENDER

Note: (REPLACED AND SUPERSEDED 77490-12. FOR SERVICE ORDER PN 77738-12)

$

$

Not available

35

77491-12

BRACKET, LIGHT

$

$

Not available

36

77492-12

BRACKET, FENDER

$

$

Not available

17320

STRAP, 11 INCH BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32324-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$267.99

$

Usually ships in 3-7 days

0
