CH 8993 H - Bear Cat 8" Chipper, 993cc Briggs & Stratton Turntable (SN: 5VJAA0000DW000001 - 5VJAA0413GW005166) Feed Roller (A) Parts Diagram

8" Chipper, 993cc Briggs & Stratton Turntable

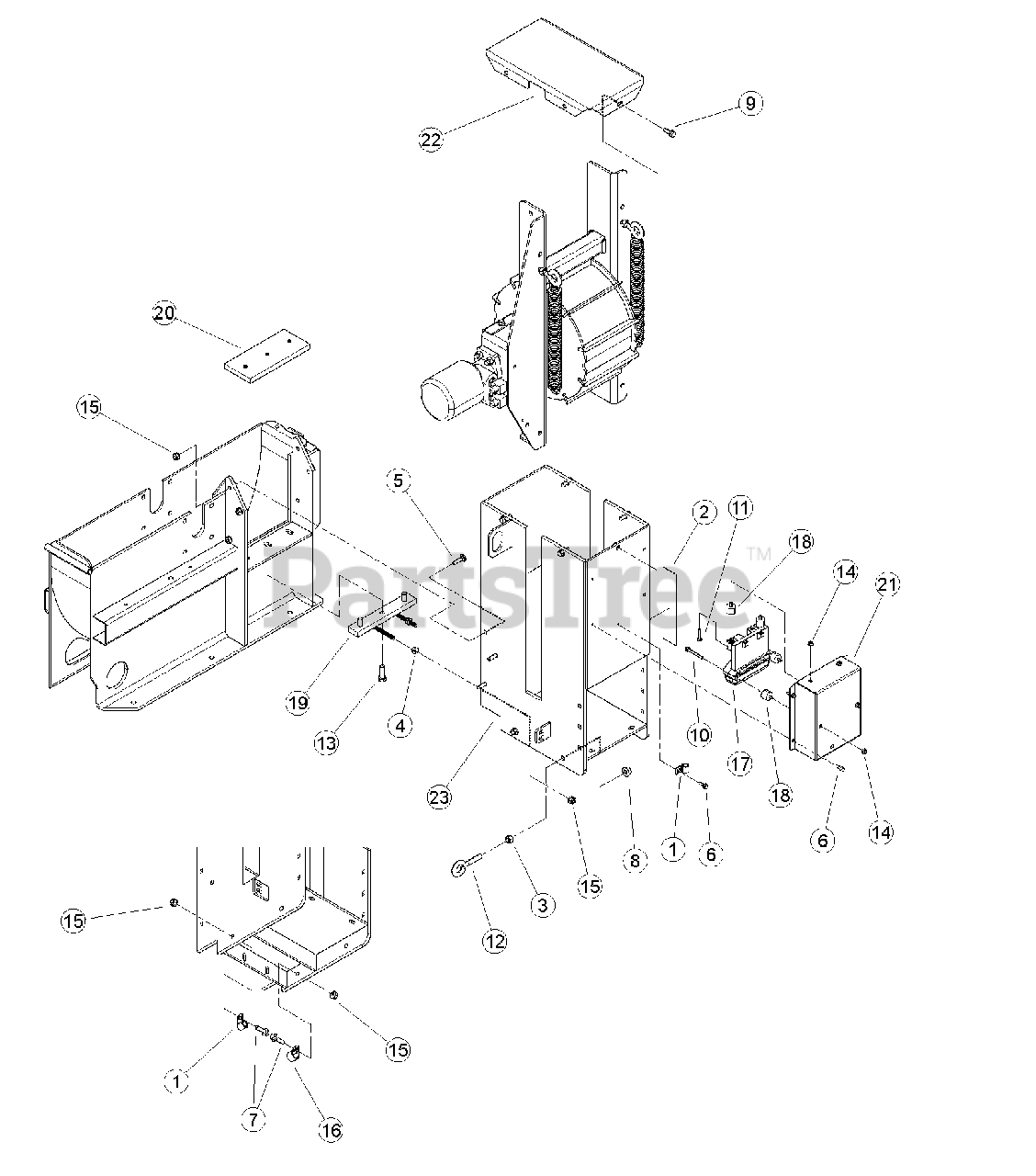

Feed Roller (A) Parts Diagram

  • Title
1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

4

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

5

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

6

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

7

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

15172-00

BOLT, 1/4 X 2-1/4 FLANGE NC

$

$

Not available

11

15214

BOLT, 1/4-20 X 1-1/4 GR5 HHCS MAGNI 565 SILVER

$

$

Not available

12

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

13

15855-00

BOLT, 1/2 X 1-1/2 GR8 NC ZP HEX HD

$

$

Not available

14

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

19

Bear Cat 71050-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

20

Bear Cat 71132-12

PLATE, CHIPPER BOTTOM

$

$

Not available

21

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0

22

Bear Cat 77151-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

23

Bear Cat 77152-35

WELDMENT, ROLLER SUPPORT

$

$

Not available

Bear Cat 18607-00

STRAP, 7-1/2 IN RED TIE

Note: (NOT SHOWN)

$0.99

$

Usually ships in 3-7 days

0

18608-00

STRAP, 7-1/2 IN BLUE TIE

Note: (NOT SHOWN)

$

$

Not available

30146-00

TUBING, HEAT SHRINK - 3/4 X 6" 4:1 RATIO

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 36391-00

PLUG, JUMPER HARNESS

Note: (NOT SHOWN)

$20.99

$

Usually ships in 3-7 days

0
